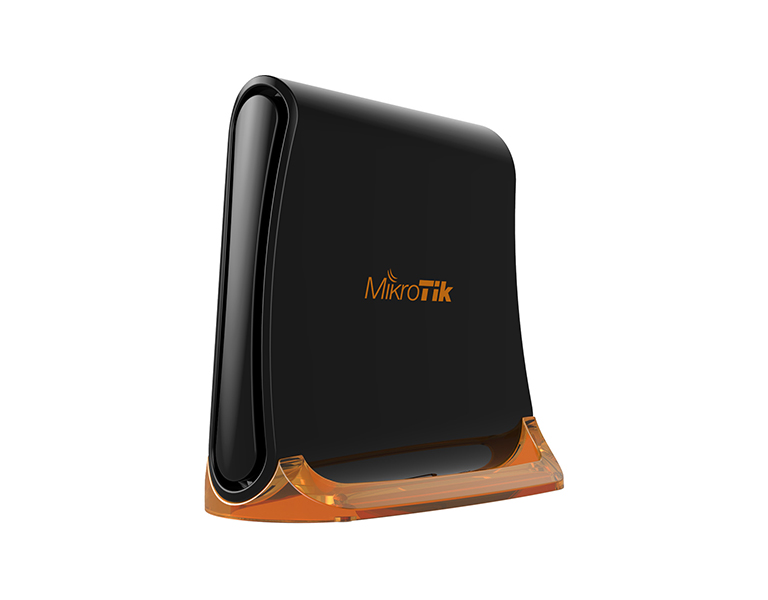

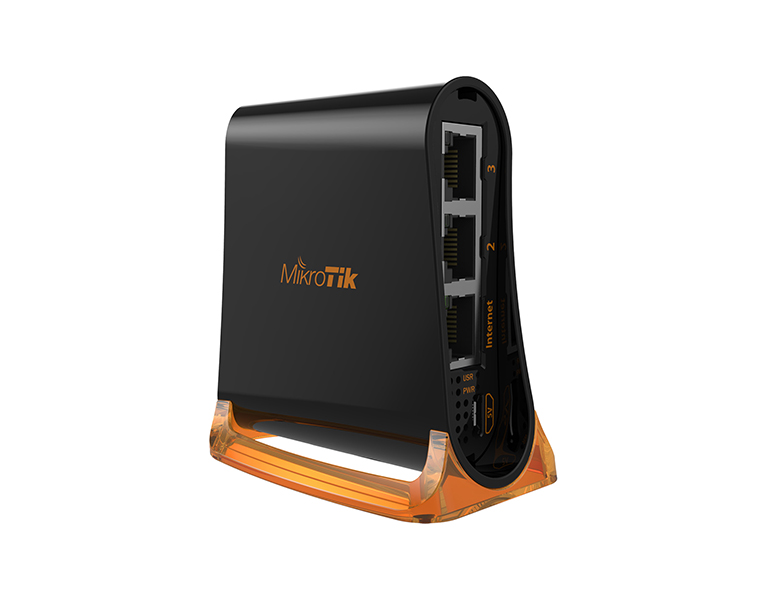

The hAP mini is a small 2GHz wireless access point for home or small offices. It has three ports, which are configured as one Internet port and two LAN ports, but can be reconfigured as desired, using the powerful RouterOS configuration options.
The unit is powered by microUSB and measures only 8 cm tall. Even with it’s small size, the hAP mini is still quite powerful, as it uses the QCA9533 CPU, just like the bigger units in the widely successful hAP series.
The device has an omnidirectional antenna built-in, and does not have a strict limitation on number of connected clients. It works in 2GHz and supports 802.11b/g/n standards.
The powerful 650MHz CPU gives you full access to the wide variety of features provided by the versatile RouterOS operating system, but if all you want is a simple access point - it is already configured out of the box. You simply need to open it’s web configuration page and set a password for it.
Προσοχή! Βάσει της ισχύουσας Ελληνικής Νομοθεσίας, του Ε.Κ.Κ.Ζ.Σ. και των όσων προβλέπει το Π.Δ. 98/2017 η νόμιμη χρήση του προϊόντος αυτού στη ζώνη συχνοτήτων 2400 – 2483,5 MHz, προβλέπει μέγιστη ισχύ εκπομπής τα 100 mW e.i.r.p. Στην ισχύ αυτή συνυπολογίζεται η ισχύς εξόδου του πομπού και το κέρδος της κεραίας. Αρμόδια για την εποπτεία του φάσματος είναι η E.E.T.T. Το προϊόν αυτό είναι εφοδιασμένο με σήμα συμμόρφωσης CE βλ. Π.Δ. 98/2017 Το προϊόν αυτό προορίζεται για χρήση σε εσωτερικούς χώρους. |
Εγγυήσεις - Επιστροφές: | |
Επιστροφή Χρημάτων: | Επισκευή - Αντικατάσταση: |
20 ημέρες | 12 μήνες |
Specifications | |
Product code | RB931-2nD |
Architecture | SMIPS |
CPU | QCA9533 |
CPU core count | 1 |
CPU nominal frequency | 650 MHz |
Dimensions | 48 x 78 x 81mm |
License level | 4 |
Operating System | RouterOS |
Size of RAM | 32 MB |
Storage size | 16 MB |
Storage type | FLASH |
MTBF | Approximately 100'000 hours at 25C |
Tested ambient temperature | -20°C to 70°C |
Powering | |
MicroUSB input Voltage | 5-5 V |
Number of DC inputs | 1 (MicroUSB) |
Max power consumption | 3.5 W |
Wireless | |
Wireless 2.4 GHz Max data rate | 300 Mbit/s |
Wireless 2.4 GHz number of chains | 2 |
Wireless 2.4 GHz standards | 802.11b/g/n |
Antenna gain dBi for 2.4 GHz | 1.5 |
Wireless 2.4 GHz chip model | QCA9533 |
Wireless 2.4 GHz generation | Wi-Fi 4 |
Ethernet | |
10/100 Ethernet ports | 3 |
Certification & Approvals | |
Certification | FCC |
Το ποιο εύχρηστο Mikrotik! Έαν επιθυμείτε να μοιράσετε το internet σας, από μια πρίζα δικτύου ή Router-Switch σε pc, tv, ps, κινητό, tablet, είναι έτοιμο και σεταρισμένο.
Με όλα τα χαρακτηριστικά του Mikrotik για τους μυημένους, με 3 + 1 interface, πλήρως παραμετροποιήσιμα!
