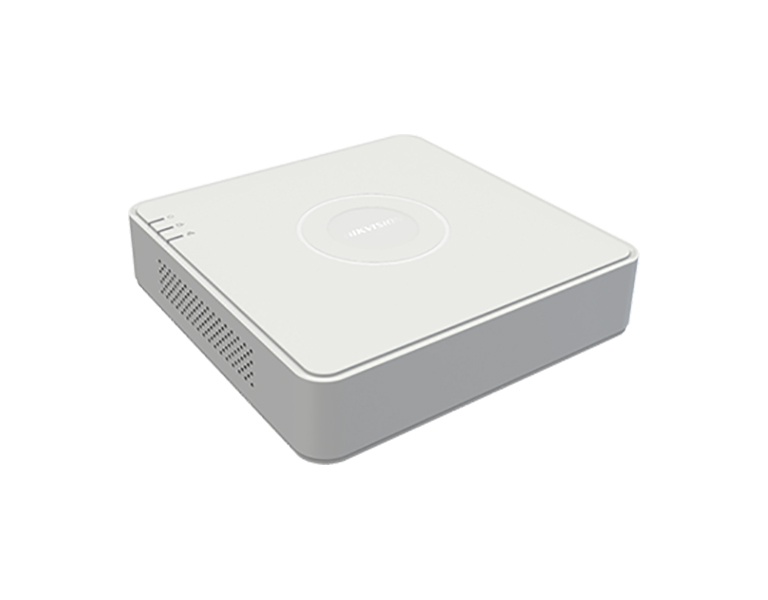

Hikvision DS-7108HQHI-K1(S)(C) Turbo HD DVR

Κωδικός προϊόντος:
DS-7108HQHI-K1(S)(C)
Κατασκευαστής Hikvision
Διαθεσιμότητα:

Κόστος Μεταφορικών:
  • Περιγραφή
  • Χαρακτηριστικά
  • Λήψεις
  • Γνώμες πελατών
Hikvision DS-7108HQHI-K1(S)(C) Turbo HD DVR

ΠΡΟΣΟΧΗ!!! Στην συσκευασία συμπεριλαμβάνεται τροφοδοτικό!!!

• H.265 Pro+/H.265 Pro/H.265 video compression
• HDTVI/AHD/CVI/CVBS/IP video input
• Audio via coaxial cable
• Max. 6/12/24 IP cameras input (up to 6 MP)
• Max. 800 m for 1080p and 1200 m for 720p HDTVI signal
• Up to 6TB capacity per HDD



Εγγυήσεις - Επιστροφές:
Επιστροφή Χρημάτων: Επισκευή - Αντικατάσταση:
20 ημέρες 36 μήνες
Specifications
Recording
Video compression H.265 Pro+/H.265 Pro/H.265/H.264+/H.264
Encoding resolution When 1080p Lite mode is not enabled:
4 MP lite/3 MP/1080p/720p/VGA/WD1/4CIF/CIF;
When 1080p Lite mode is enabled:
4 MP lite/3 MP/1080p lite/720p lite/VGA/WD1/4CIF/CIF
Frame rate Main stream:
When 1080p Lite mode not enabled:
For 4 MP stream access:
4 MP lite@15fps; 1080p lite/720p/WD1/4CIF/VGA/CIF@25fps (P)/30fps (N)
For 3 MP stream access:
3 MP/1080p/720p/VGA/WD1/4CIF/CIF@15fps
For 1080p stream access:
1080p/720p@15fps; VGA/WD1/4CIF/CIF@25fps (P)/30fps (N)
For 720p stream access:
720p/VGA/WD1/4CIF/CIF@25fps (P)/30fps (N)
When 1080p Lite mode enabled:
4 MP lite/3 MP@15fps; 1080p lite/720p lite/VGA/WD1/4CIF/CIF@25fps (P)/30fps (N)
Sub-stream:
WD1/4CIF@12fps; CIF@25fps (P)/30fps (N)
Video bit rate 32 Kbps to 6 Mbps
Dual stream Support
Stream type Video, Video & Audio
Audio compression G.711u
Audio bit rate 64 Kbps
Video and Audio
IP video input 2-ch (up to 10-ch)
Enhanced IP mode on:
4-ch (up to 12-ch), each up to 4 Mbps
Up to 6 MP resolution
Support H.265+/H.265/H.264+/H.264 IP cameras
Analog video input 8-ch
BNC interface (1.0 Vp-p, 75 Ω), supporting coaxitron connection
HDTVI input 4 MP, 3 MP, 1080p25, 1080p30, 720p25, 720p30, 720p50, 720p60
*: The 3 MP signal input is only available for channel 1/2 of DS-7108HQHI-K1
AHD input 4 MP, 1080p25, 1080p30, 720p25, 720p30
HDCVI input 4 MP, 1080p25, 1080p30, 720p25, 720p30
CVBS input Support
VGA output 1-ch, 1920 x 1080/60Hz, 1280 x 1024/60Hz, 1280 x 720/60Hz, 1024 x 768/60Hz
HDMI output 1-ch, 1920 x 1080/60Hz, 1280 x 1024/60Hz, 1280 x 720/60Hz, 1024 x 768/60Hz
Audio input 1-ch, RCA (2.0 Vp-p, 1 KΩ)
8-ch via coaxial cable
Audio output 1-ch, RCA (Linear, 1 KΩ)
Two-way audio 1-ch, RCA (2.0 Vp-p, 1 KΩ) (using the first audio input)
Synchronous playback 8-ch
Network
Remote connection 64
Total bandwidth 96 Mbps
Incoming bandwidth (Enhanced IP mode) 48 Mbps
Network protocol TCP/IP, PPPoE, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, NFS, iSCSI, UPnP™, HTTPS, ONVIF
Network interface 1, RJ45 10M/100M self-adaptive Ethernet interface
Auxiliary interface
SATA 1 SATA interface
Capacity Up to 6 TB capacity for each disk
USB interface Real panel: 2 x USB 2.0
Alarm in/out N/A
General
Power supply 12 VDC, 1.33 A
Consumption(without HDD) ≤ 12 W
Working temperature -10 °C to +55 °C (+14 °F to +131 °F)
Working humidity 10% to 90%
Dimension(WxDxH)  200 x 200 x 45 mm
Weight (without HDD) ≤ 1 kg
Δεν υπάρχουν αξιολογήσεις για το προϊόν ακόμη.
