Ubiquiti UPS-TOWER, UniFi 1KVA Managed UPS with 10 Outlets, Line Interactive, Desktop
The compact desktop UPS solution is an ideal choice for securing smaller servers, switches, or other network devices. With a power of 1000 VA / 600 W and line-interactive technology, it reliably manages voltage fluctuations and switches to battery mode within milliseconds. A total of 10 C13 sockets allow for the distribution of devices according to priority – some are backed up, while others are protected against surges. The battery capacity of 108 Wh provides up to 7 minutes of operation at 50% load and is hot-swappable, ensuring maximum availability without downtime.
Safety and integration without compromise
With support for UniFi Alarm Manager, it is easy to monitor the power status, manage events, and connect the unit to a larger ecosystem via a LAN interface with speeds of 10/100 Mbps. There’s also NUT protocol support for integration with third-party devices. The UPS protects not only the power supply but also the data connection thanks to integrated LAN port protection. The fanless design ensures quiet operation, and the compact IP20-rated construction is suitable for offices and technical rooms with temperatures from 0 to 40 °C.
Key features
- Power of 1000 VA / 600 W with line-interactive technology
- 10 IEC C13 sockets (both backed up and surge protected)
- Battery 108 Wh, runtime of up to 7 minutes at 50% load
- Hot-swappable battery replacement without downtime
- Support for UniFi Alarm Manager and NUT protocol
- Protection for LAN cable and connection via LAN (10/100 Mbps)
- Quiet operation with no fan
- Desktop design, IP20 rating, operating temperature 0–40 °C
| Specifications: | |
| Mechanical |
|

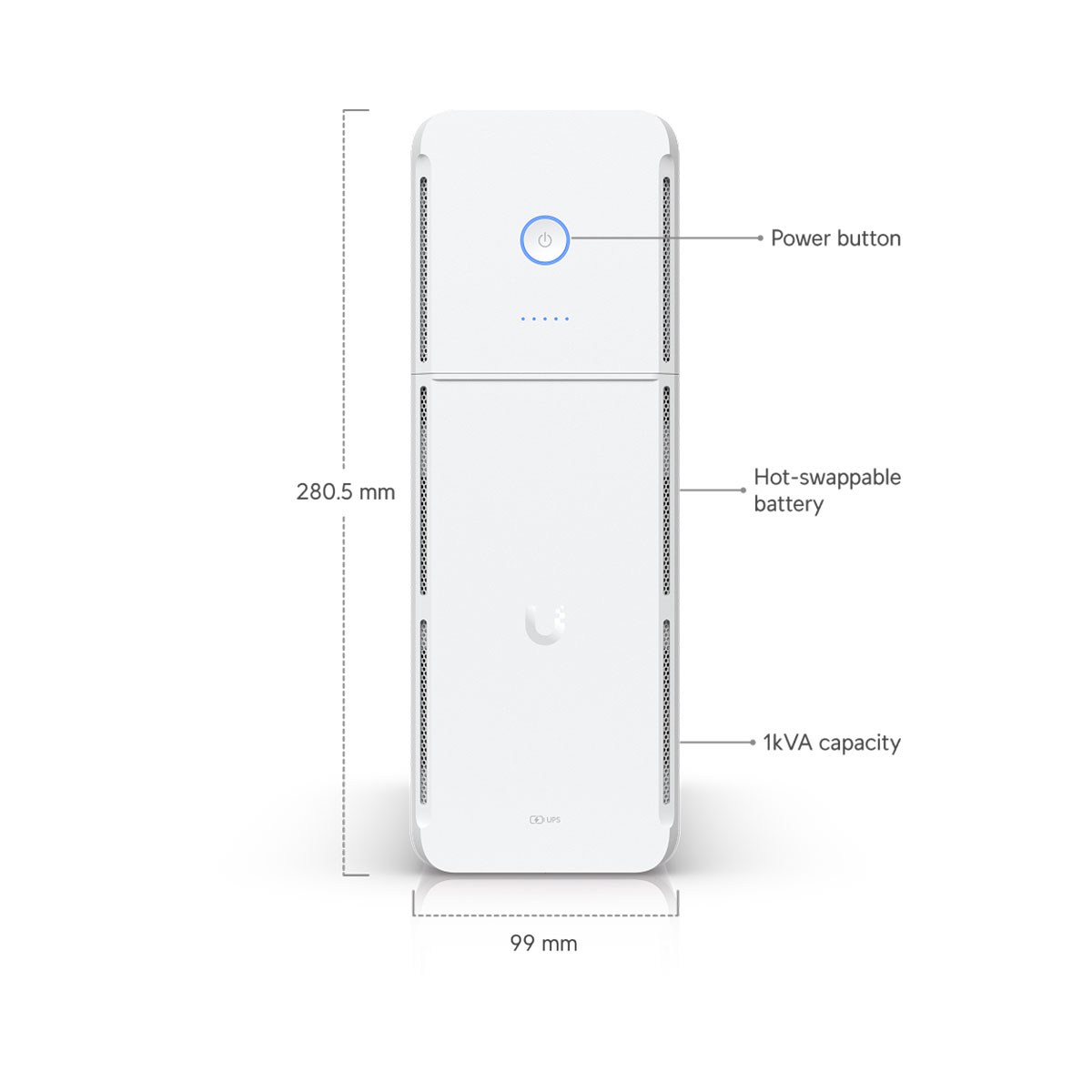

| Dimensions | 288 x 99 x 280.5 mm |
| Weight | 7.85 kg |
| Enclosure Material | Polycarbonate and acrylonitrile butadiene styrene blend |
| Form Factor | Desktop |
| Weatherproofing | IP20 |
| Hardware | |
| Management | Ethernet |

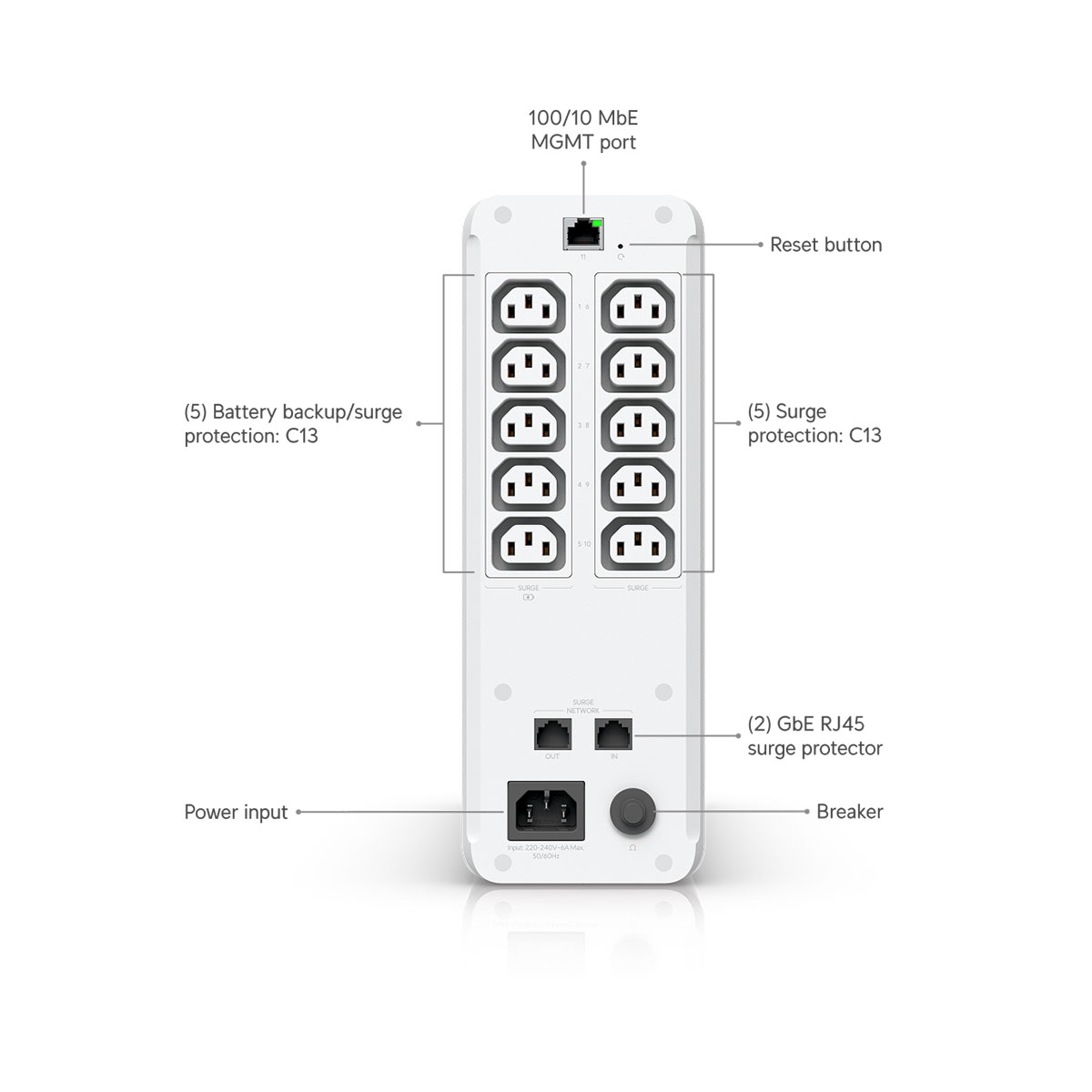

| Networking Interface | (1) 100/10 MbE port for network connection (2) GbE ports for surge in/out |
| Power | (1) OVC II AC in: C14 socket, 1.8 m (5.9 ft) removable power cord (5) Battery backup/surge protection: C13 (5) Surge protection: C13 |
| Capacity | 1,000VA/600W |
| Type | Line interactive |
| Input Voltage Range | 170–280V AC |
| Power Method | (1) TN system, 220–240V AC, 6A Max., 50/60 Hz |
| Nominal Input Voltage | 230V AC |
| Output Voltage | 220–240V AC |
| Nominal Output Voltage | 230V AC |
| Frequency Range | AC mode: 50/60 Hz ±5 Hz (Auto sensing) Battery mode: 50 Hz ±1 Hz |
| AC Voltage Regulation | ±10% (Battery mode) |
| Transfer Time | 6 ms typical; 10 ms max. (Battery mode) |
| Wave Form | Simulated sine wave (Battery mode) |
| Battery Type | (1) Lead Acid 12V, 9Ah |
| Runtime | Full load: 2 min Half load: 7 min |
| Battery Charging Time | 6-8 hours recovery to 90% capacity |
| Overload at On-Line Mode | 110% 5 min go to fault 120% go to fault immediately |
| Overload at Battery Mode | 110% shutdown in 5 sec 120% shutdown immediately |
| Short Circuit Protection at On-Line Mode | Breaker, 250V AC, 10A |
| Output Short-Circuit Current | Ipeak 401.9A Irms 160.7A |
| Buttons | (1) Power (1) Factory reset |
| LEDs | Status Off: device not turned on Flashing white: initializing / factory default Steady white: waiting for adoption Steady blue: device adoption and working Flashing blue: battery mode Alternating white/blue: firmware upgrading Rapid flashing blue: locate Steady red: warning Flashing red: low battery Battery Indicator All off: 0% (1) Steady blue: battery 1–19% (2) Steady blue: battery 20–39% (3) Steady blue: battery 40–59% (4) Steady blue: battery 60–79% (5) Steady blue: battery 80–100% |
| Operating Altitude | 3,000 m |
| Operating Environment | Pollution Degree 2 |
| Ambient Storage Temperature | -20 to 50° C |
| Ambient Operating Temperature | 0 to 40° C |
| Ambient Operating Humidity | 0 to 95% noncondensing |
| Certifications | CE, IEC 62040-1 |
