Ubiquiti UVC-G4 Doorbell Pro PoE Kit - UniFi Protect G4 Doorbell Professional PoE Κit
Product Code:
UVC-G4 Doorbell Pro PoE Kit
500,00 €
(Includes VAT 24%)
Sales price without VAT:
403,23 €
7 Days
Ubiquiti UVC-G4 Doorbell Pro PoE Kit - UniFi Protect G4 Doorbell Professional PoE Κit
Shipping cost calculation:
Quantity
Description
Characteristics
Downloads
Description

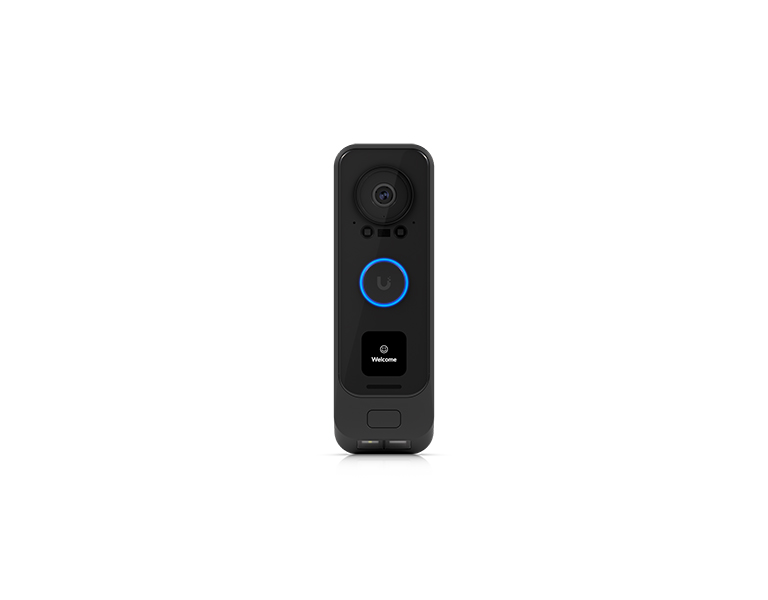

Premium UniFi doorbell with integrated PoE and included PoE chime for plug-and-play installation.
• Improved HDR and low-light performance

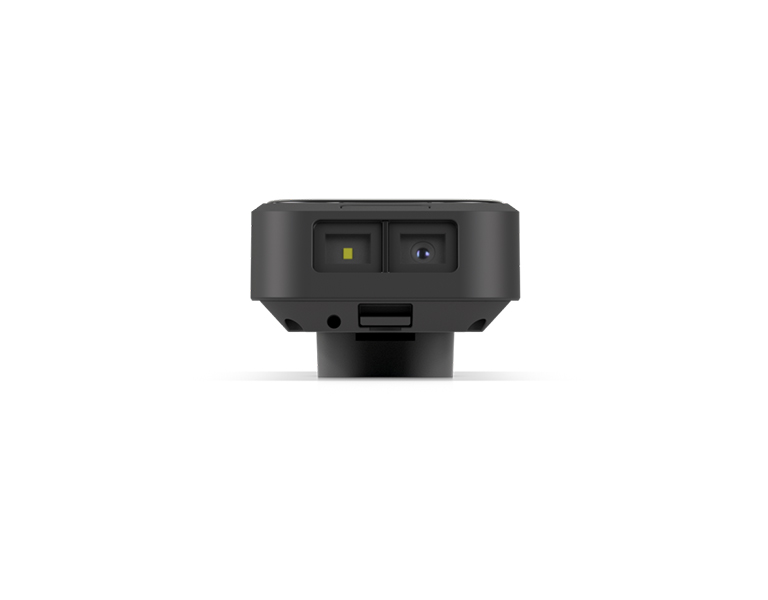

• Programmable welcome display and secondary package-detection camera
• AI event detections
• Connect and power using PoE
• Integrated 2-way audio

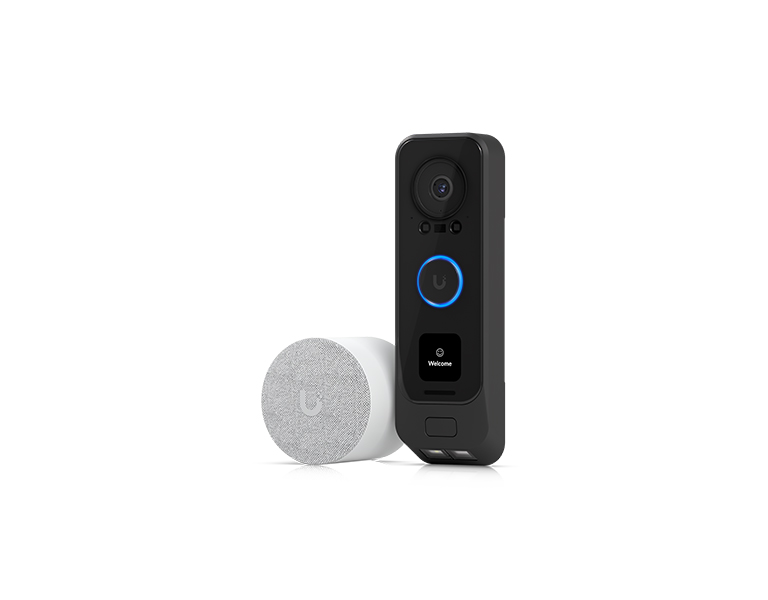

• Includes PoE Chime
• Weather-resistant (outdoor covered)
Characteristics
| UVC-G4 Doorbell Pro PoE Kit | |
| Mechanical | |
| Dimensions | Device: 160.6 x 51.7 x 35.1 mm Wall mount: 159.3 x 50.3 x 17.5 mm Wedge: 161.1 x 52.1 x 25.7 mm On-wall mount: 161.1 x 52.1 x 25.75 mm |
| Weight |
Device: 264 g Wall mount: 56 g Wedge: 33 g On-wall mount: 53 g |
| Enclosure Materials | Aluminum alloy, polycarbonate |
| Mount Materials | Wall mount: aluminum alloy Wedge: polycarbonate On-wall mount: polycarbonate |
| Weatherproofing | IPX4 |
| Optics | |
| Sensor | Main camera: 5MP CMOS Package camera: 8MP CMOS |
| Lens | Fixed focal length |
| View angle | Main camera: H: 138°, V: 114°, D: 155° Package camera: H: 97.5°, V: 79.4°, D: 118.2° |
| Night mode | Built-in IR LED illumination and IR cut filter |
| Video | |
| Video compression | H.264 |
| Resolution | Main camera: 2MP 1600 x 1200 (4:3) Package camera: 2MP 1600 x 1200 (4:3) |
| Max. frame rate | 30 FPS |
| System | |
| Processor | Quad-core Arm® Cortex®-A53 based chip |

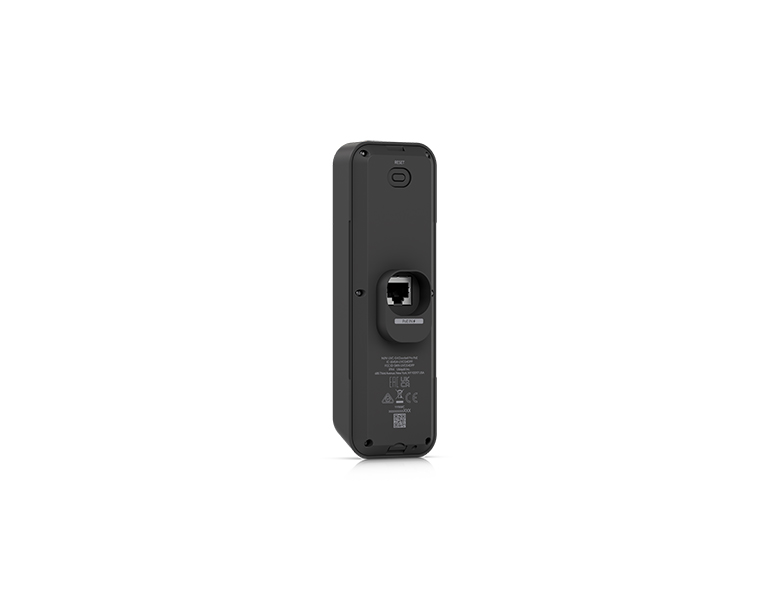

| Networking interface | GbE RJ45 port |
| Power method | PoE |
| Supported voltage range | 37—57V DC |
| Max. power consumption | 7W |
| LED | Link/activity |
| Button | (1) Ring button (1) Factory reset |
| Operating Temperature | -30 to 40º C |
| Operating Humidity | 0 to 90% Noncondensing |
| Certifications | CE, FCC, IC |
| Audio | |
| Microphone | Yes (Can be disabled ) |
| Speaker | Yes |
| Software | |
| UniFi OSapplication | UniFi Protect |
| Mobile app | UniFi Protect iOS™ and Android™ |

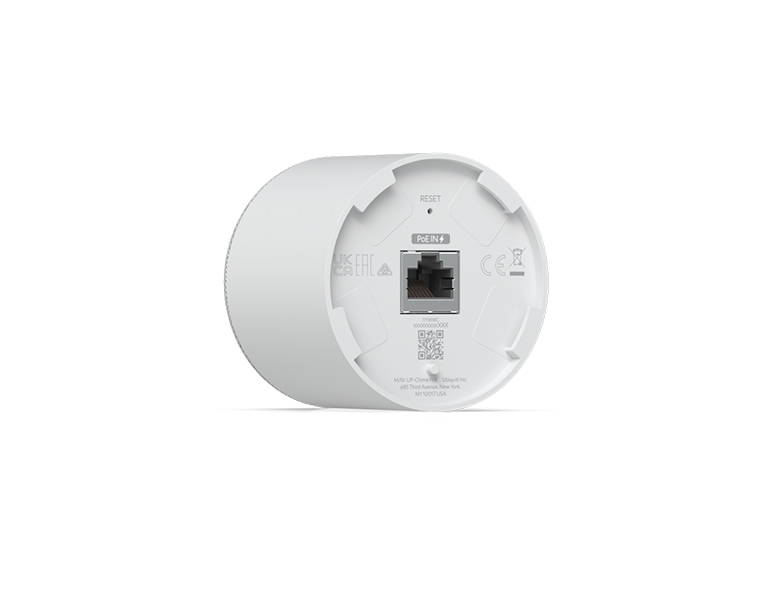

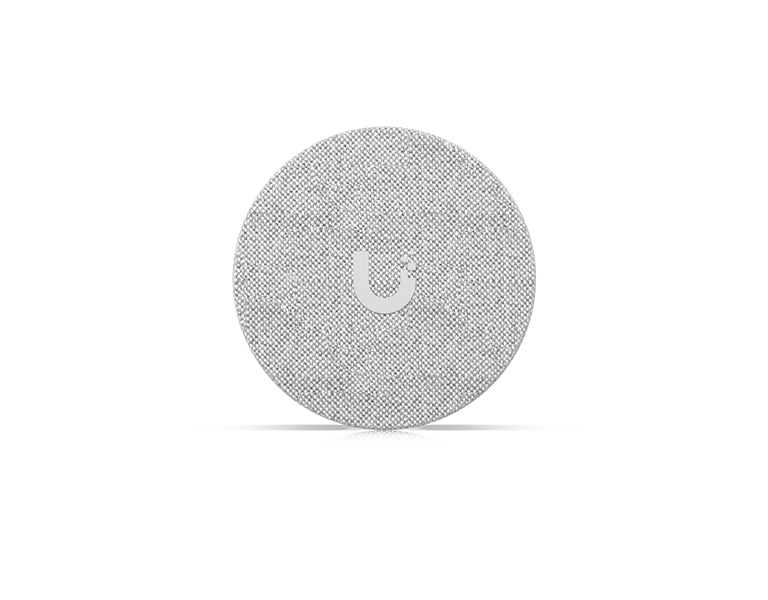

| UP-Chime PoE | |
| Mechanical | |
| Dimensions | Device: Ø62 x 54 mm In-wall mount: Ø89 x 63.1 mm On-wall Mount: Ø62 x 20.2 mm |
| Weight | Device: 158 g In-wall mount: 91 g On-wall mount: 28 g |
| Enclosure materials | Aluminum alloy, polycarbonate |
| Mount materials | Polycarbonate, zinc alloy |
| System | |
| Processor | Dual-Core Xtensa®, 32 bit ,400 MIPS |
| Networking interface | 10/100 MbE port |
| Power method | PoE |
| Supported voltage range | 44—57V DC |
| Max. power consumption | 3.5W |
| ESD/EMP protection | Air: ± 16kV, contact: ± 8kV |
| LED | R/G/B/W |
| Button | Factory reset |
| Operating temperature | 0 to 40° C |
| Operating humidity | 10 to 90% noncondensing |
| Certifications | CE, FCC, IC |
| Audio | |
| Speaker | Yes |
| Buzzer | Yes |
| Software | |
| Web application | UniFi Protect |
| Mobile app | UniFi Protect iOS™ and Android™ |
Downloads
