MaxLink MAXPI90 PoE injector, 802.3af/at/bt, 55V, 1.75A, 95W, 1Gbit
Product Code:
MAXPI90
116,00 €
(Includes VAT 24%)
Sales price without VAT:
93,55 €
7 Days
MaxLink MAXPI90 PoE injector, 802.3af/at/bt, 55V, 1.75A, 95W, 1Gbit
Shipping cost calculation:
Quantity
Description
Characteristics
Downloads
Description

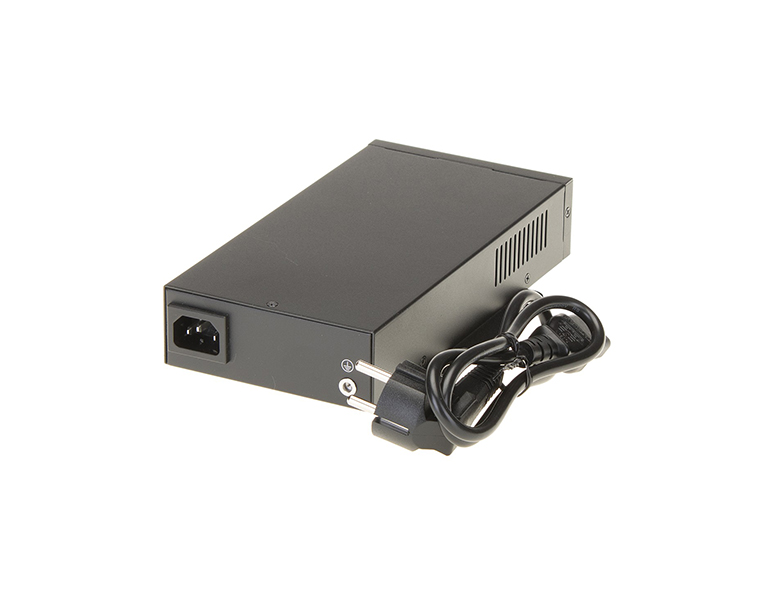

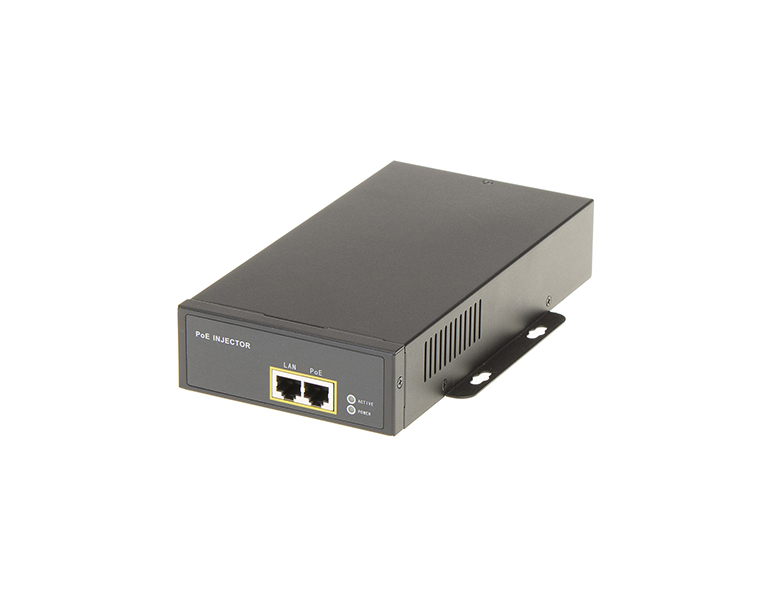

MAXPI90 is a high quality Gigabit PoE injector with one POE output port for powering devices with 802.3af/at/bt support with a maximum consumption of up to 95W. For better distribution of the current load, all 4 pairs of conductors are powered. Can also be installed in outdoor cabinets due to the wide temperature working range. The package includes a power cord.
Characteristics
| Specifications | |
| PoE Out standards | 802.3af, 802.3at, 802.3at - ultra PoE (60W), 802.3bt |
| PoE Out ports | 1 |
| LED indication | Yes |
| Pin powering | 1,2,7,8 (-), 3,4,5,6 (+) |
| Output Voltage | 55V |
| Output Power / 1port | 95W |
| Ethernet speed | 10/100/1000 Mbps |
| Gigabit LAN | Yes |
| Operating temperature | -40 up to 65°C |
| Weight | 1070g |
| Depth | 214mm |
| Width | 134mm |
| Height | 41mm |
| Package Contents | MAXPI90 1x User Manual 1x Power cord |
