RF-Elements Twin Horn Bracket

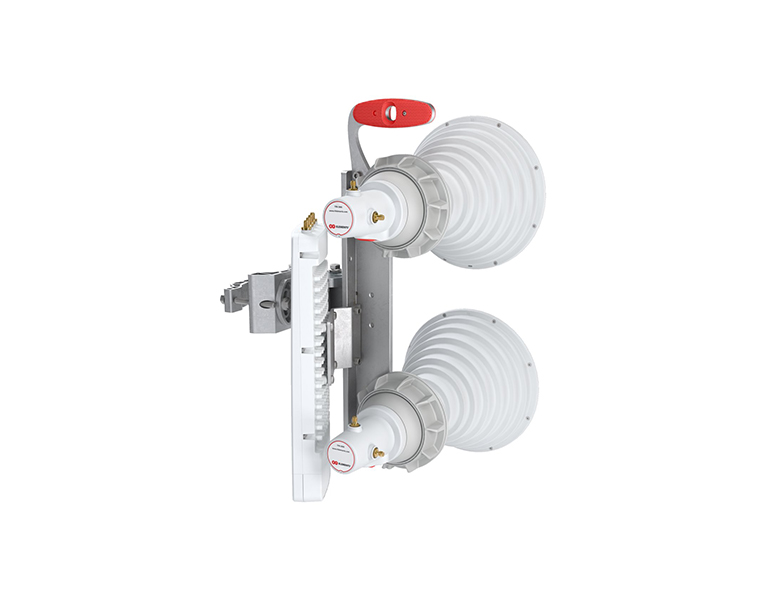

Twin Horn Bracket allows you to install two symmetrical Horn antennas with exactly the same alignment. The bracket also accommodates mainstream 4x4 radios, such as ePMP 3000 or Mimosa A5c. High density sectors or 4x4 deployments are now ingeniously simple.
Optional Radio Mount

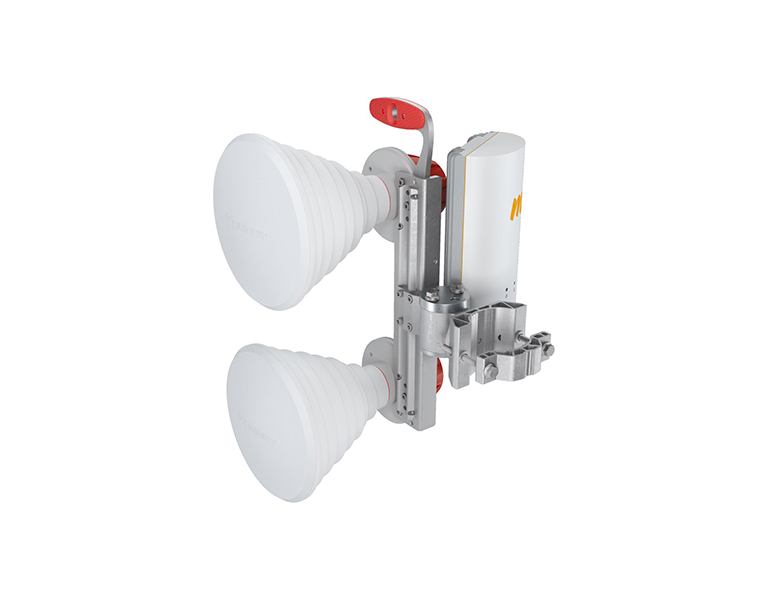

Twin Horn Bracket also provides integrated mounting option for 4x4 radios available on the market, such as CambiumTM ePMPTM 3000 and Mimosa A5c. The radio and antennas are integrated on the same structure, enabling easy installation in the field. Radio mount is detachable, so the THB can be used with any 3rd party radio that is mounted separately.
Easy Installation

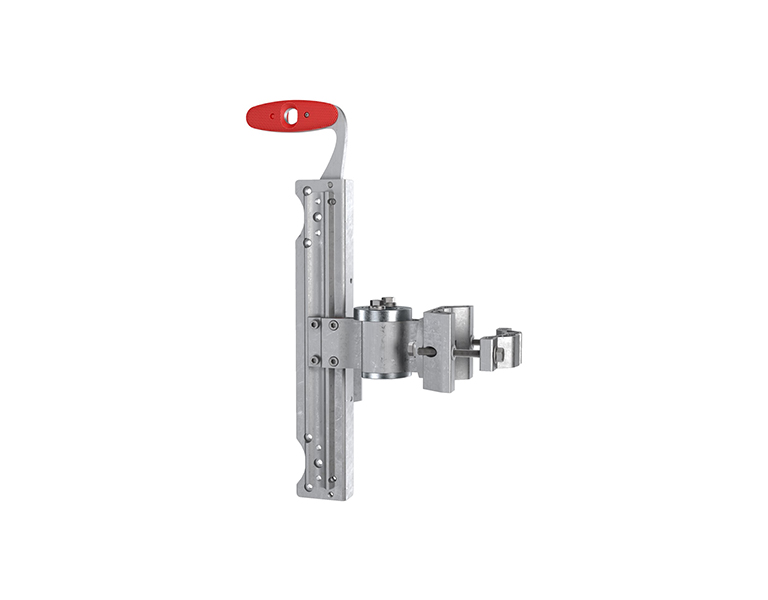

Twin Horn Bracket features a new innovative mounting system. The mount is separated from the antenna which makes the antenna installation and adjustment easy and quick.
| Warranties - Returns: | |
| Money Return: | Repair - Replacement: |
| 20 days | 24 months |
| Specifications | |
| Materials | Aluminium and Zinc Alloy, Stainless Steel UV stabilized and weather resistant ABS plastic |
| Enviromental | IP55 |
| Pole Mounting Diameter | 40-80mm (recommend as close to 80mm as possible) |
| Temperature | -40°C to +60°C |
| Wind Survival | 160 km/h |
| Mechanical Adjustment | ± 20° Elevation, ± 20° Azimuth |
| Weight | 2.5 Kg – single unit 2.7 Kg – single unit incl. package |
| Single Unit | Retail Box: 387 x 145 x 98 mm |
| Compatible wireless platforms | |
| RF elements | any Symmetrical Horn TP Antennas Gen2 any Symmetrical Horn CC Antennas Gen2 |
| TwistPort™ adaptor & radio combinations | TP-ADAP-e2K + ePMP™ 2000 all radios compatible with: TP-ADAP-IS, TPA-PAF, TPA-R5AC, TPA-RM5, TPA-A5x, TPA-C5x, TP-ADAP-C5c, TPA-RBC, TPA-RBP, TPA-SMA |
| Cambium Networks | ePMP™ 3000, ePMP™ 4600 AP |
| Mimosa Networks | A5c |
| Package contents | |
| • Twin Horn Bracket • Pole Mounting Bracket • Hex Key 5mm |
|
There are yet no reviews for this product.
