Offered as either with an internal omni directional antennas or with optional external 5GHz antenna support, the T300 Series is designed for easy installation within an ultra-lightweight and low profile enclosure. The T300 is ideal for venue owners and enterprises looking to quickly and economically deploy Wi-Fi in high-capacity environments.
Features:

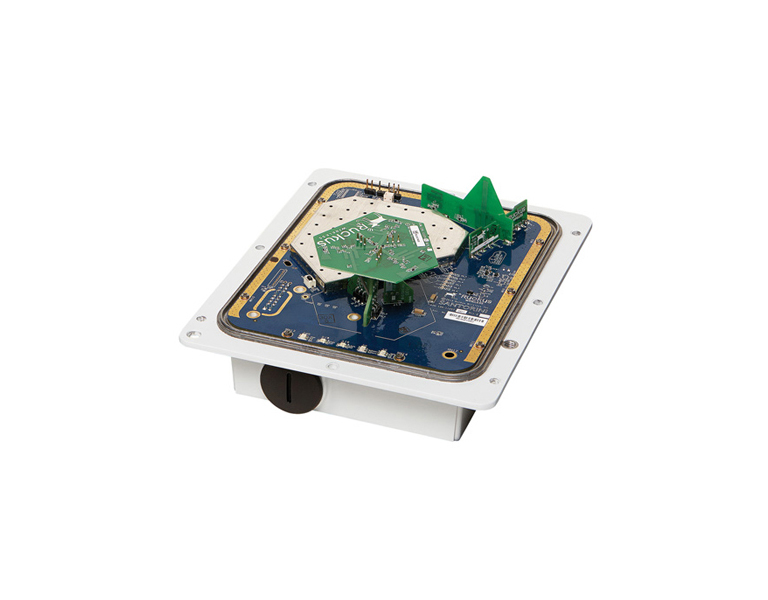

Integrated BeamFlex+ Smart Antenna Technology
• Omni directional for very high-density deployments in arenas, stadiums, airports, etc. or external antennas
• BeamFlex+ support for up to 4 dB of signal gain and 10 dB of interference mitigation in addition to the antenna gain

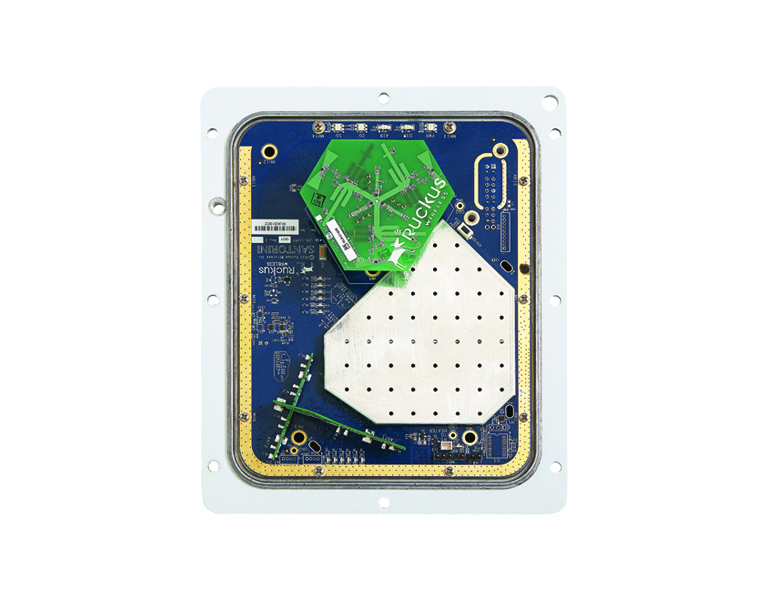

• Internal antenna for a minimal form factor, which is essential in many deployments
• Polarization Diversity with Maximal Ratio Combining (PD-MRC) ensures reliable connectivity for mobile devices
Hardened enclosure for harsh outdoor environments
• IP-67 water and dustproof plastic enclosure with flexible wall or pole mounting options.
| Physical Characteristics | |
| Power | 802.3af PoE Input (Class 3 PD) |
| Physical Size | 18cm x 15cm x 8.6cm (7” x 5.9” x 3.4”) |
| Weight | 1 kg (2.1 lbs) with bracket 0.9 kg (2 lbs) without bracket |
| Etherner Ports | 10/100/1000Base-T 802.3,802.3 u,802.3ab 802.3at/af PoE PD Input Jumbo frame support (2290 byte max MTU) |
| RF Connectors | N female qty 2 (optional 5GHz only) |
| Environmental Conditions | Operating temperature range: -20°C to +65° C Weather protection: IP67 per IEC 60529 |
| Power Draw | PoE Input Idle: 6.5W Typical: 7.5W Peak: 11W |
| Mounting Options | Wall Mount Pole Mount Diameter 1” to 2.5” |
| Performance and Capacity | |
| Physical Layer Modulation Data Rate | 2.4GHz 802.11b/g/n 300Mbps 5GHz 802.11a/n/ac 867Mbps |
| Concurrent Stations | Up to 500 capable per AP |
| Simultaneous VoIP Clients | Up to 30 |
| Certifications Specs | |
| Transportation | ISTA 2A: Random Vibration & Drop Test Compression & Loose Cargo Test ETSI EN 300 019-2-2 Specification T 2.2 Careful transportation |
| Safety | Safety Listing - EU EN 60950-1:2006/A12:2011 EN 60950-22:2006/AC:2008 International CB Scheme Certificate CB Bulletin IEC 60950-1: 2005 Second Edition IEC 60950-22: 2005 First edition CISPR 22 CISPR 24 CAN/CSA C22.2 60950-1 Edition 2 CAN/CSA C22.2 60950-22 Edition 1 |
| Health And Human Safety to RF Exposure | EN 62311:2008 EN 50385:2002 FCC OET-65 ICNIRP:2010 |
| Hazardous Materials | RoHS Directive 2002/95/EC RoHS Directive 2011/65/EU WEEE |
| Immunity | EN61000-4-2 Level 4 Contact / Level 3 Air ESD Immunity EN61000-4-5 Level 1 & 2 Immunity EN61000-4-3 Level 4 EMC Immunity GR1089 - 1kV 25A Surge (data ports) |
| Railway And Rolling Stock | EN50121-1 EN50121-4 EN61373 (for trackside use) |
| Wi-Fi Alliance | Wi-Fi CERTIFIED™ a, b, g, n, ac WPA™ — Enterprise, Personal WPA2™ — Enterprise, Personal • Optimization — WMM® |
| Wi-Fi | |
| Standards | 5 GHz IEEE 802.11ac 2GHz IEEE 802.11g/n |
| Frequency Band | IEEE 802.11g/n 2.4-2.472GHz (ch1-13 CE, ch1-11 US) IEEE 802.11ac 5GHz U-NII-1 5.15-5.25 GHz U-NII-2 5.25-5.35 (DFS) U-NII-2B 5.37-5.47* U-NII-2C 5.47-5.725 (DFS) U-NII-3 5.725-5.825 ISM 5.725 – 5.875 U-NII-4 5.85-5.925* |
| WLAN Radio Configuration | Dual band concurrent 2 x 2:2 stream radios |
| Maximum TX Power** | 26 dBm for 2.4GHz 25 dBm for 5.0GHz |
| Channeliation | 2.4GHz 802.11b/g/n 20/40 MHz 5GHz 802.11a/n/ac 20/40/80 MHz |
| BSSID | Up to 32 (27 configurable) on 2.4 GHz Up to 16 (13 configurable) on 5 GHz |
| Certifications*** | U.S., Europe, Argentina, Australia, Brazil, Canada, Chile, China, Colombia, Costa Rica, Hong Kong, India, Indonesia, Israel, Japan, Korea, Malaysia, Mexico, Peru, Philippines, Russia, Saudi Arabia, Singapore, South Africa, Taiwan |
* With future software release
** Max power varies by country setting, band, and MCS rate
*** Refer to price list for current country certifications
Caution! According to current Greek Legislation, of N.F.B.A.R. and the provisions of the P.D. 98/2017 the lawful use of this product in the frequency band 2400 – 2483,5 MHz, provides for a maximum transmit power of 100mW e.i.r.p.
At this maximum power the output power of the transmitter and the gain of the antenna are both taken into account. Responsible for spectrum surveillance is H.T.P.C.
This product is CE marked, P.D. 98/2017
This product is intended for indoor use.
Caution! According to current Greek Legislation, of N.F.B.A.R. and the provisions of the P.D. 98/2017 the lawful use of this product in the frequency band 5150 – 5250MHz and 5250 – 5350MHz, provides for a maximum transmit power of 200 mW e.i.r.p. and in the frequency band 5470 – 5725MHz, provides for a maximum transmit power of 1 W e.i.r.p.
At this maximum power the output power of the transmitter and the gain of the antenna are both taken into account. Responsible for spectrum surveillance is H.T.P.C.
This product is CE marked, P.D. 98/2017
This product is intended for indoor use.
