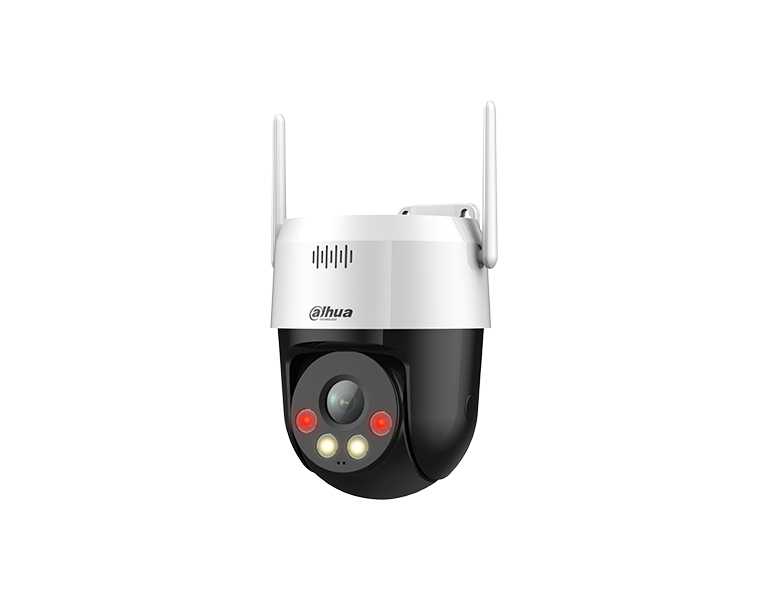

DAHUA SD2A500HB-GN-AW-PV-0400-S2 5MP Full-color Network PT Camera

Κωδικός προϊόντος:
SD2A500HB-GN-AW-PV-0400-S2
Κατασκευαστής Dahua
Διαθεσιμότητα:

Κόστος Μεταφορικών:
  • Περιγραφή
  • Χαρακτηριστικά
  • Λήψεις
  • Γνώμες πελατών
DAHUA SD2A500HB-GN-AW-PV-0400-S2 5MP Full-color Network PT Camera
• 1/2.8" 5Megapixel STARVIS™ CMOS
• Max. 20 fps@5MP
• Human detection
• Tripwire, intrusion
• H.265 encoding
• Wi-Fi
• IP66
• Two-way audio
•Sound and light alarm
• IR and white light, three night view modes


System Overview
The Active Defense series of small PT cameras raises the bar on performance. After detecting an intrusion, it triggers sound and light alarms, and then instantly relays vital information on the intrusion to the mobile client, keeping you informed no matter where you are. It supports two-way talk, allowing you to communicate with people in front of the camera in real time. It also records videos in full color, and uses Smart Dual Light to help produce vivid images, making it easy to obtain information on events, and reduce light pollution.

Functions
Smart H.265+ & Smart H.264+
With advanced scene-adaptive rate control algorithm, Dahua smart encoding technology realizes the higher encoding efficiency than H.265 and H.264, provides high-quality video, and reduces the cost of storage and transmission.

Two-way Talk
With its built-in high-sensitivity microphone and high-power speaker, the camera realizes two-way talk through the mobile app.

Smart Dual Light
Dahua Smart Dual Light technology adopts smart algorithm to detect targets. Usually, the IR illuminator is on at night; when the target appears in the monitoring area, the white light is on, and the camera records the full-color video and information of key events. That is, the camera links snapshot and video with full-color image. When the target is out of the monitoring area, the white light is off and the IR illuminator is on, which reduces light pollution efficiently.

IVS
With advanced video algorithm, Dahua IVS technology supports intelligent functions, such as tripwire and intrusion.

Siren and Light Active Deterrence
Dahua siren and light active deterrence network camera supports the white light alarm and voice alarm when perimeter event occurs, to realize the deterrence and effective intervention. The camera is built in one voice, and supports customized voice importing.

Προσοχή! Βάσει της ισχύουσας Ελληνικής Νομοθεσίας, του Ε.Κ.Κ.Ζ.Σ. και των όσων προβλέπει το Π.Δ. 98/2017 η νόμιμη χρήση του προϊόντος αυτού στη ζώνη συχνοτήτων 2400 – 2483,5 MHz, προβλέπει μέγιστη ισχύ εκπομπής τα 100mW e.i.r.p.
Στην ισχύ αυτή συνυπολογίζεται η ισχύς εξόδου του πομπού και το κέρδος της κεραίας. Αρμόδια για την εποπτεία του φάσματος είναι η E.E.T.T.
Το προϊόν αυτό είναι εφοδιασμένο με σήμα συμμόρφωσης CE βλ. Π.Δ. 98/2017
Το προϊόν αυτό προορίζεται για χρήση σε εσωτερικούς χώρους.



Εγγυήσεις - Επιστροφές:
Επιστροφή Χρημάτων: Επισκευή - Αντικατάσταση:
20 ημέρες 36 μήνες
Specifications
Camera
Image Sensor 1/2.8" CMOS
Pixel 5 MP
Max. Resolution 2560 (H) × 1920 (V)
ROM 128 MB
RAM 128 MB
Electronic Shutter Speed 1/3 s–1/100,000 s
Scanning System Progressive
Min. Illumination Color: 0.005 lux@F1.6
B/W: 0.0005 lux@F1.6
0 lux (illuminator on)
Illumination Distance 30 m(IR) 30 m(white light)
Illuminator On/Off Control  Manual, auto, off
Illuminator Number 2 (IR light)
2 (White light)
Lens
Max. Aperture F1.6
Focal Length   4.0 mm
Field of View H: 80.4°
V: 58.1°
D: 104.8°
Close Focus Distance 0.3m
Iris Control Fixed
DORI Distance Detect:77.4 m
Observe: 31.0 m
Recognize: 15.5 m
Identify: 7.74 m
PTZ
Pan/Tilt Range Pan: 0° to 345°
Tilt: 0° to +80°
Manual Control Speed Pan: 0.1°–74°/s
Tilt: 0.1°–36.4°/s
Preset Speed Pan: 62°/s
Tilt: 36.3°/s
Preset 300
Power-off Memory Yes
Idle Motion Preset
Smart Event
IVS Tripwire, intrusion
Human Detection Yes
Active Deterrence
Light Warning White light warning Flash duration: 5 s–30 s
Flash frequency: high, medium, low
Sound Warning Sound warning alarm: Customizable Alarm duration: 10 s, 20 s, 30 s
Video
Video Compression H.264B;Smart H.265+;H.264;H.265;MJPEG(Sub Stream);Smart H.264+
Streaming Capability 2 streams
Resolution 5M (2560 × 1920); 4M (2560 × 1440); 1080P (1920 × 1080); 960P(1280x960); 720P (1280 × 720); D1 (704 × 576/704 × 480); CIF (352 × 288/352 × 240)
Video Frame Rate Main stream: 5M(1–20 fps),4M/1080p/1.3M/720p (1–25/30 fps)
Sub stream: D1/CIF (1–25/30 fps)
Bit Rate Control CBR/VBR
Video Bit Rate H264: 512–8192 kbps
H265: 233–7680 kbps
Day/Night Auto (ICR)/Color/B/W
BLC Yes
WDR DWDR
HLC Yes
White Balance Auto, manual, tracking, indoor, outdoor, sodium lamp, street lamp, natural light
Gain Control Auto, manual
Noise Reduction 2D NR, 3D NR
Motion Detection Yes
Image Rotation 180°
S/N Ratio ≥55 dB
Audio
Audio Compression PCM, G.711a, G.711Mu, G.726, MPEG2-Layer2, G722.1
Network
Network Port RJ-45 (10/100 Base-T)
Wi-Fi Yes
Wi-Fi–Wireless Standard 802.11n, IEEE802.11b, 802.11g
Wi-Fi–Wireless Frequency Range 2.4GHz
Wi-Fi–Wireless Transmission Rate 150Mbps
Network Protocol UDP,FTP,RTMP,IPv6,IPv4,IP Filter,DNS,RTCP,HTTP,NTP,SS L,DHCP,RTP,SMTP,HTTPS,TCP/IP,RTSP,DDNS,ARP
Interoperability CGI, SDK, ONVIF (Profile S&T), P2P
Streaming Method Unicast/Multicast
User/Host 20
Storage Micro SD card (512 GB), FTP
Browser IE: IE 7 and later versions, Chrome, Firefox, Safari
Management Software DMSS
Mobile Client iOS, Android
Certification
Certification CE: EN55032/EN50130-4/EN IEC61000-3-3/EN IEC61000- 3-2/EN55024/EN55035/EN62368-1 FCC: 47 CFR FCC Part15, Subpart B, ANSI C63.4:2014
Port
Audio Input 1 channel (built-in mic)
Audio Output 1 channel (built-in speaker)
Two-way Audio Yes
Alarm Linkage Capture, preset, recording, audio, sending email
Alarm Event Motion/Tampering detection, audio detection, network disconnection detection, IP conflict detection, memory card state detection, memory space detection
Audio I/O 1/1
Power
Power Supply 12 VDC/1.5 A±10%
Power Consumption Basic: 3.5 W
Max.: 11 W (illuminator + PT + speaker + heating glass)
Environment
Operating Temperature –30 °C to +55 °C
Operating Humidity ≤ 95%
Protection IP66, TVS 2000 V lightning proof; surge protection; voltage transient protection
Structure
Product Dimensions 140.5 mm × Φ111.0 mm
Net Weight 0.5 kg
Gross Weight 1 kg
*The precision of the presets for PTZ cameras might vary depending on different series. For scenes with high requirements on the precision, contact your local sales representative for assistance with selecting the model.
