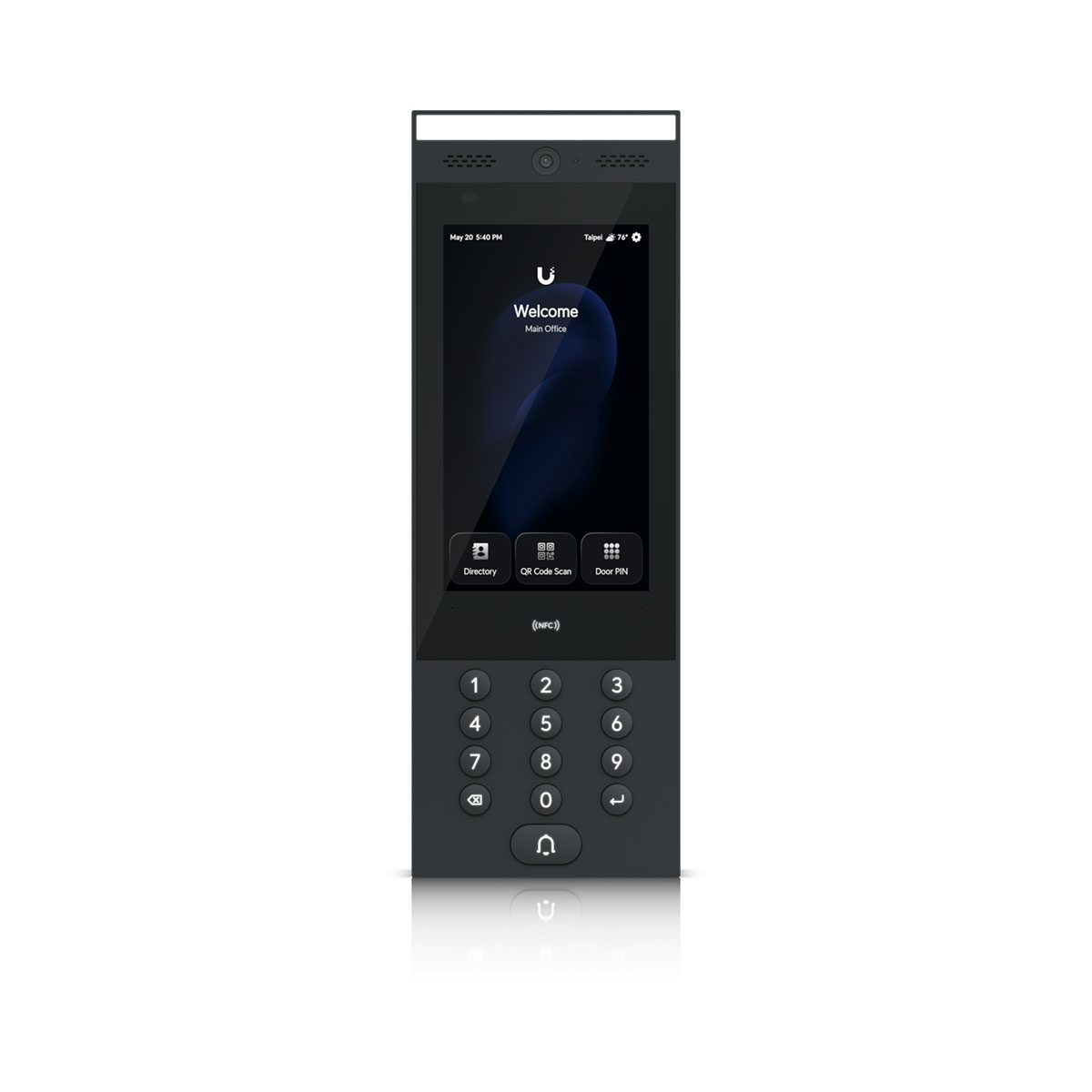

Ubiquiti UA-G3-Intercom Indoor/Outdoor Intercom with Keyboard
Ubiquiti UA-G3-Intercom Indoor/Outdoor Intercom with Keyboard
UA-G3-Intercom is a brand new generation of high-end video intercom suitable for both indoor and outdoor use (operating temperature -30°C to +60°C), ideal for managing access to residential and commercial buildings.
The intercom combines a robust and durable design with advanced features to ensure secure and convenient access. This intercom allows unlocking access through various methods, such as NFC card, UniFi Identity mobile app, PIN code, or QR code, offering flexibility in choosing the preferred method.
Thanks to the built-in directory and doorbell function, visitors can easily communicate with users, who can grant them access. A single intercom can also be connected to multiple home video phones, so installations in apartment buildings are not a problem.
Its easy installation and Power over Ethernet (PoE) powering through the UA-Hub allow for implementation in both existing and new systems. The UA-Intercom is designed to meet the demanding requirements for reliability and performance, providing security and comfort for users.
Enhance your access control and communication system with the UA-Intercom from Ubiquiti – a combination of security, comfort, and modern technology in your building.

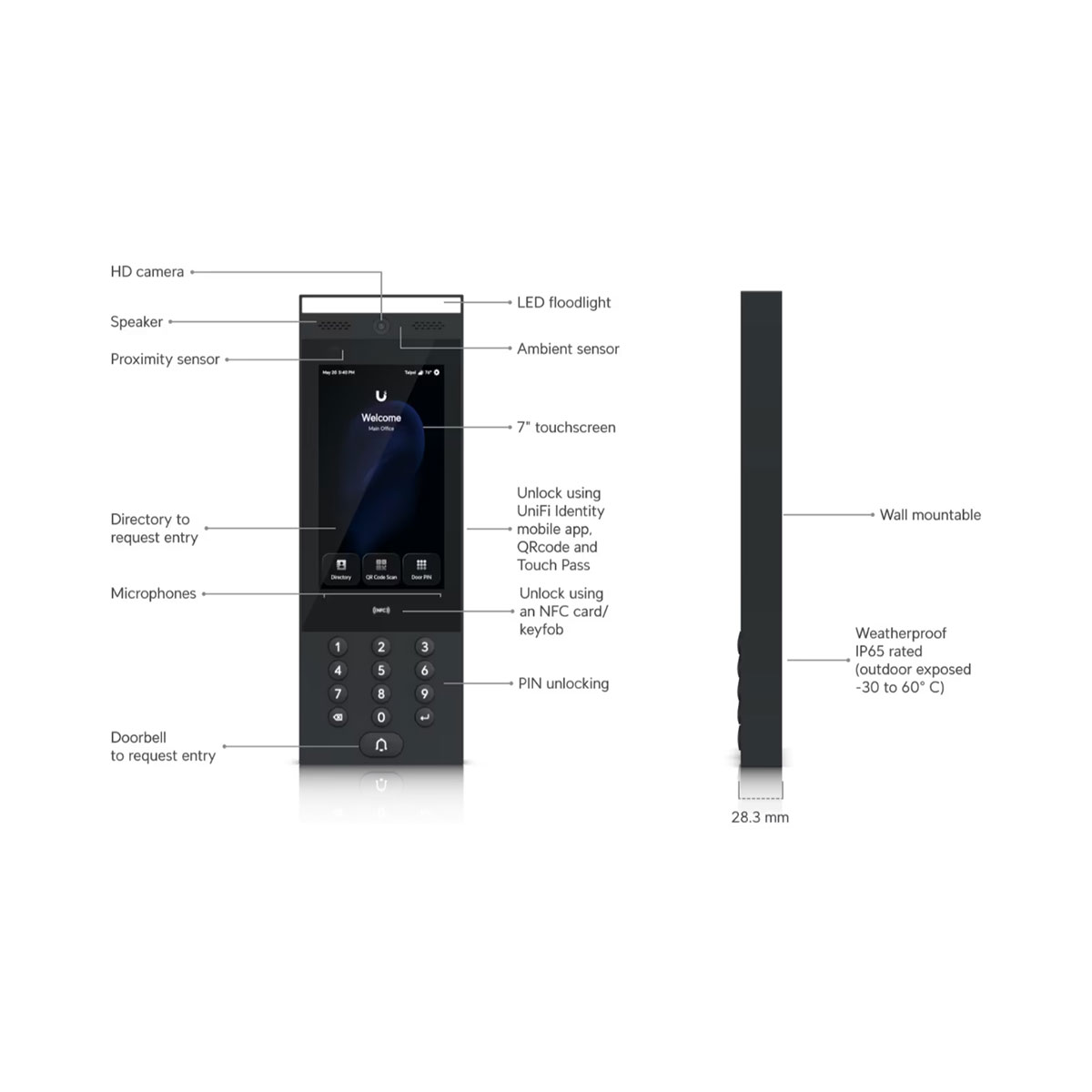

Key Features:
• Unlocking via NFC card, UniFi Identity mobile app, PIN code, or QR code
• Directory and doorbell function for granting access
• Connection to UniFi Access Hub, powered via PoE
• Durable design for indoor and outdoor use
• Touchscreen display
• Integrated camera
• Two-way audio

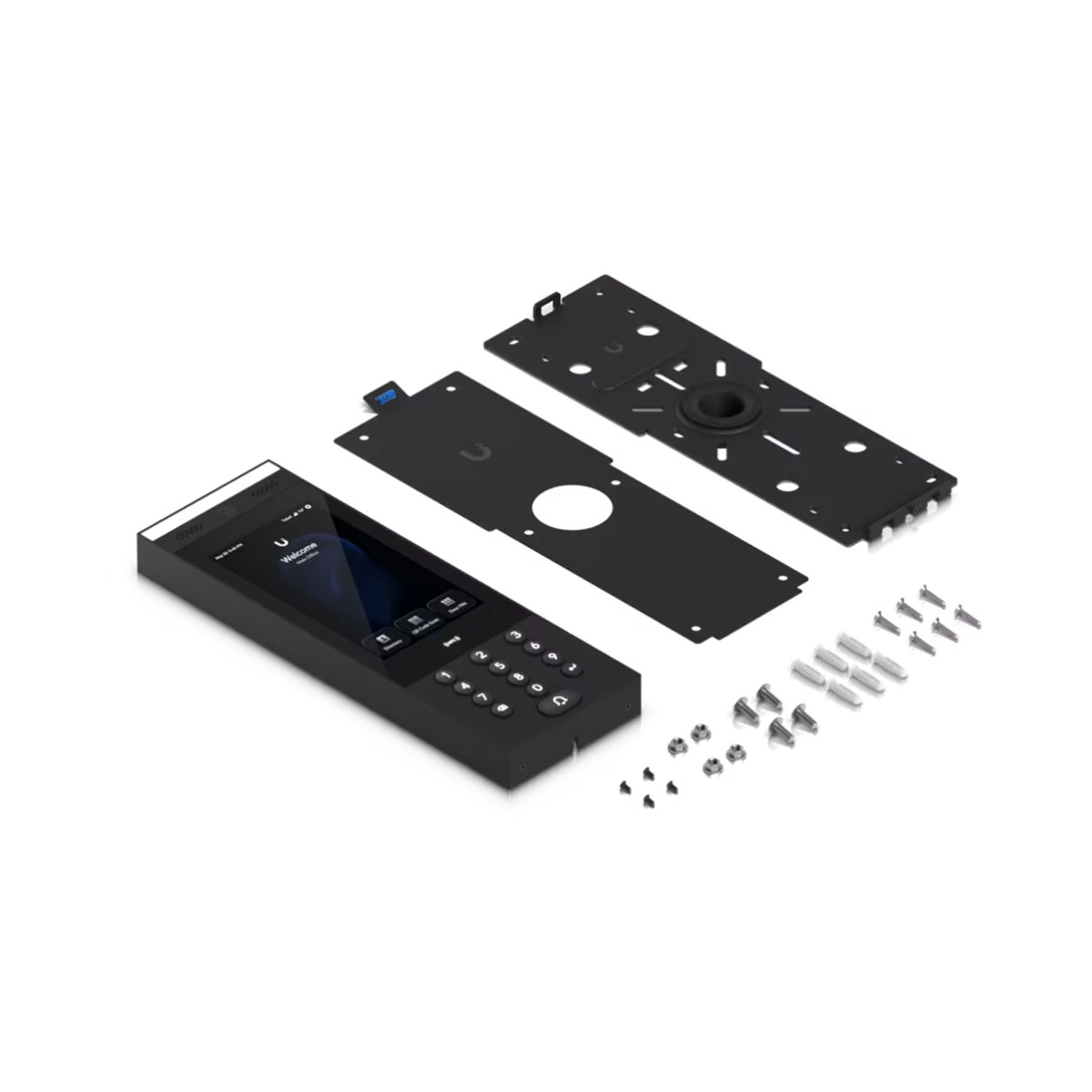

Package contents:
• Intercom
• Wall mount
• Drilling template
• Mounting kit
| Specifications | |
| Overview | |

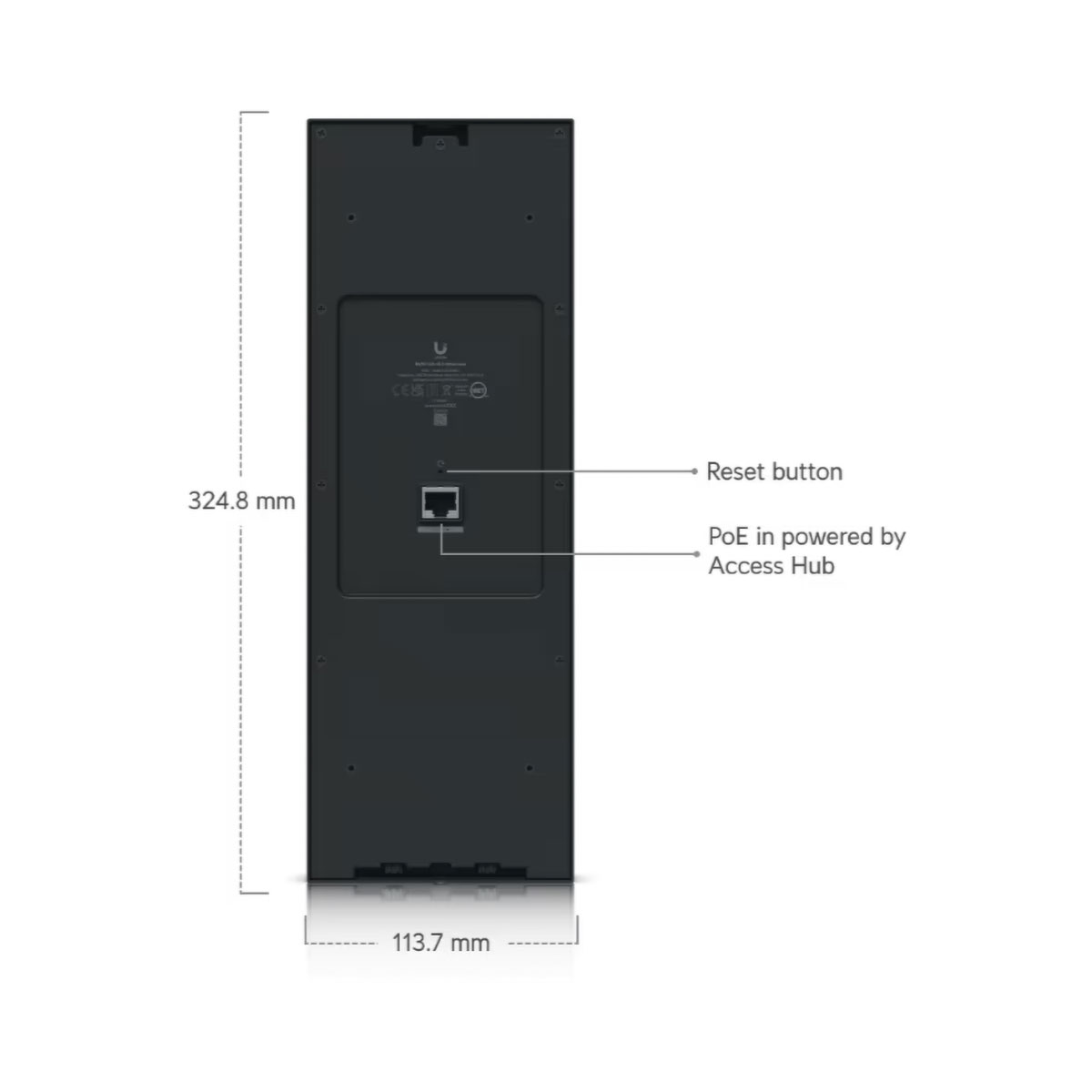

| Dimensions | 324.8 x 113.7 x 28.3 mm |
| Integrated Camera | Yes |
| NFC Card & Keyfob Access | Yes |
| PIN Access | Yes |
| Apple/Google Wallet | Yes |
| Mobile Unlock | Yes |
| Two-Way Intercom & Doorbell Access | Yes |
| NDAA Compliant | Yes |
| UL 294 Level | Destructive attack: Level I Line security: Level I Endurance: Level I Standby power: Level I |
| Weatherproofing | IP65 |
| Mechanical | |
| Weight | Device: 965 g Bracket: 445 g |
| Enclosure material | Aluminum alloy, UV-stabilized polycarbonate, glass |
| Mounting material | Powder-coated stainless steel |
| Mounting | Wall mount, adapter to the gooseneck pedestal (Included) Surface angle, flush mount, sunshield kit (Optional) |
| Hardware | |
| Indoor and Outdoor Use | Yes |
| Ambient Operating Temperature | Device: -30 to 60° C Display: -25 to 60° C |
| Ambient Operating Humidity | 5 to 90% noncondensing |
| Networking interface | (1) GbE RJ45 port |
| Connectivity | BLE 4.2 NFC |
| Power method | PoE UL 294 Power-limited Class 2 PSU UL 60950-1/62368-1 LPS/PS2 PSU |
| Max. power consumption | 13W |
| Supported Voltage Range | 48V DC |
| Sensors | Proximity sensor ALS sensor |
| Display | 177 mm (7") diagonal |
| Touch Screen Technology | Capacitive multi-touch |
| Display Luminance | Max. 1000 nits (Typical) |
| Screen Orientation | Portrait |
| Resolution | 1024 x 600 px |
| Microphone | Yes |
| Speaker | Yes |
| NFC frequency | 13.56 MHz |
| NFC read range | < 30 mm |
| NFC Technology | ISO/IEC 14443A / 14443B / 15693 / 18092 (Ecma 340) MIFARE Classic / MIFARE DESFIRE Sony FeliCa™ (ID only) NFC Forum tags T1T, T2T, T3T, T4T and T5T ECP 2.0 |
| LEDs | Amber Learn More |
| Buttons | (1) Factory-reset |
| PoE Cabling Requirements | Cat 5e cabling is the minimum performance category recommended. The performance category utilized should match the transmission speed required at the installation site. The minimal conductor gauge permitted to connect between the PSE or power injector and the PD shall be 26 AWG (0.13 mm² ) for patch cords; 24 AWG (0.21 mm² ) for horizontal or riser cable. |
| UL 294 Statement | Compliance with IEEE 802.3 specifications was not verified as part of UL 294. The equipment is intended to comply with the section of the National Electrical Code, ANSI/NFPA 70, Article 725.121, Power Sources for Class 2 and Class 3 Circuits. |
| CAN/ULC-60839-11-1 Grade | Grade assignment: I |
| Document number, and issue date and/or revision level | UA-G3-Intercom, V01 |
| Certifications | CE, FCC, IC,UL 294, CAN/ULC-60839-11-1 |
| Software | |
| Management application | Access |
