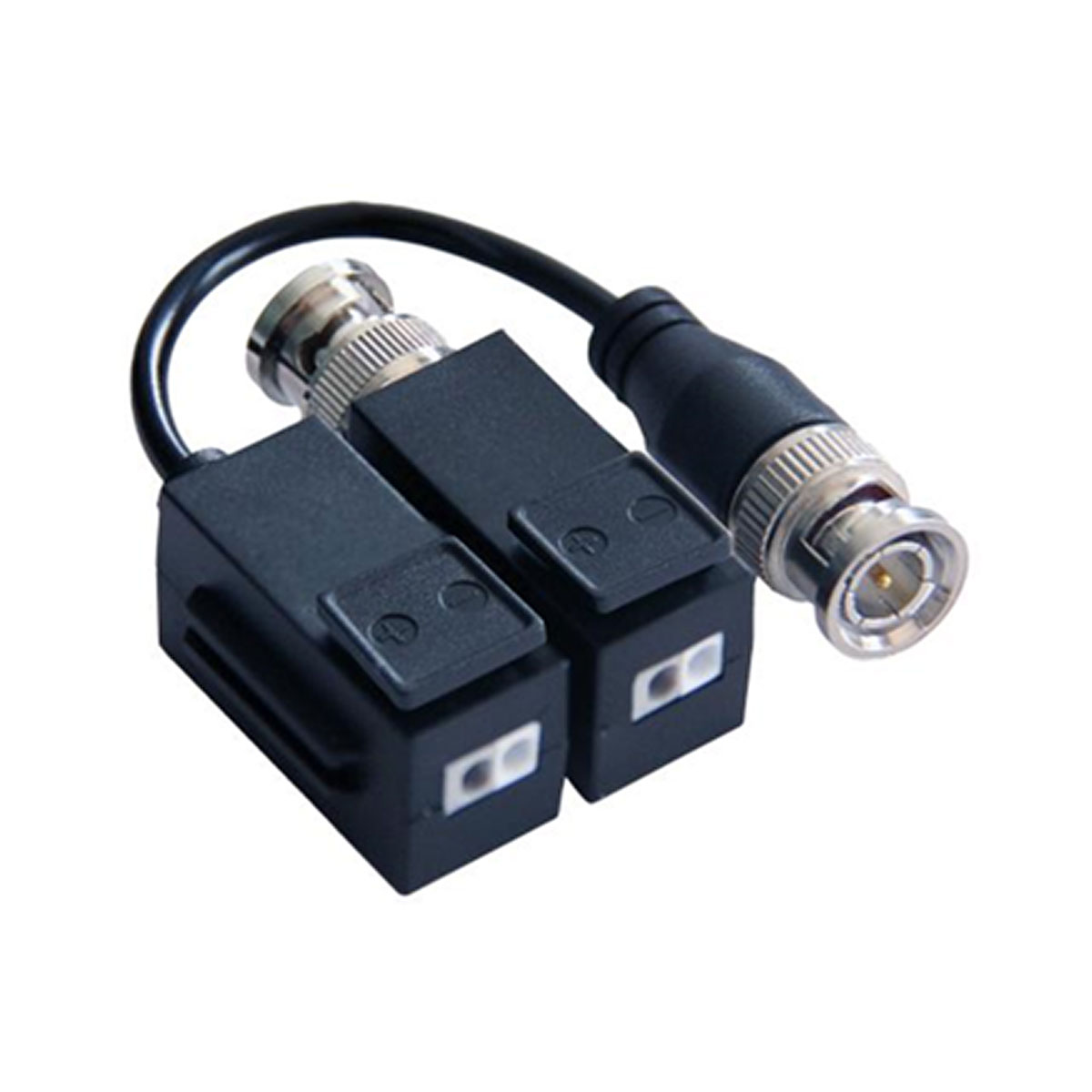

Hikvision DS-1H18S/E(C) Video Balun

Product Code:
DS-1H18S/E(C)
Available
Hikvision DS-1H18S/E(C) Video Balun
Shipping cost calculation:
Call for pricing
Manufacturer:
Warranty:
36 Months
Description
Characteristics
Downloads
Description

• Screw interface with cable and without cable
• Mini size for easy installation
• ABS outer shell for convenient to use in intensive project
• No power required, and simplified project wiring
• Plug and play, real-time transmit CCTV HD video signal, and high quality and stable video
• Compatible with HDTVI/HDCVI/AHD
• Transmission distance: non-POC Camera: Max. 200m.
• Superior anti-interference and lighting protection and ESD



Characteristics
HARDWARE FEATURES
Properties
Transmission Signal 1 channel
Transmission Distance Non-POC Camera: Max 200m
Category Type UTP CAT 5E/ 6 (R<100Ω/100M)
Video Transmission Properties and Port
Coaxial Video Connector BNC-M
Twisted-pair Video Connector Screw Interface
Compatible Format HDTVI/HDCVI/AHD
Resolution 720P/1080P/3MP/4MP/5MP
Ant-interference >60db
Protection
ESD 1a contact discharge electricity level3
1b air discharge electricity level3
Per: IEC61000-4-2
Coaxial Cable Connector 2KV(common-code) Per:IEC61000-4-5
UTP Cable Connector 2KV(different-code),
2KV(common-code)
Per:IEC61000-4-5
Impedance
BNC Male 75 ohms
UTP Cable 100 ohms
Physical Properties
Shell ABS
Color Black
Dimensions (L x W x H) 147mm x 14.5mm x 17mm
45mm x 14.5mm x 17mm
Weight 31.2 g
Stability
MTBF >10000 h
Environmental
Operating Temperature  -10 - 55ºC
Storage Temperature -20 - 70ºC
Humidity  0-95% (non-condensing)
