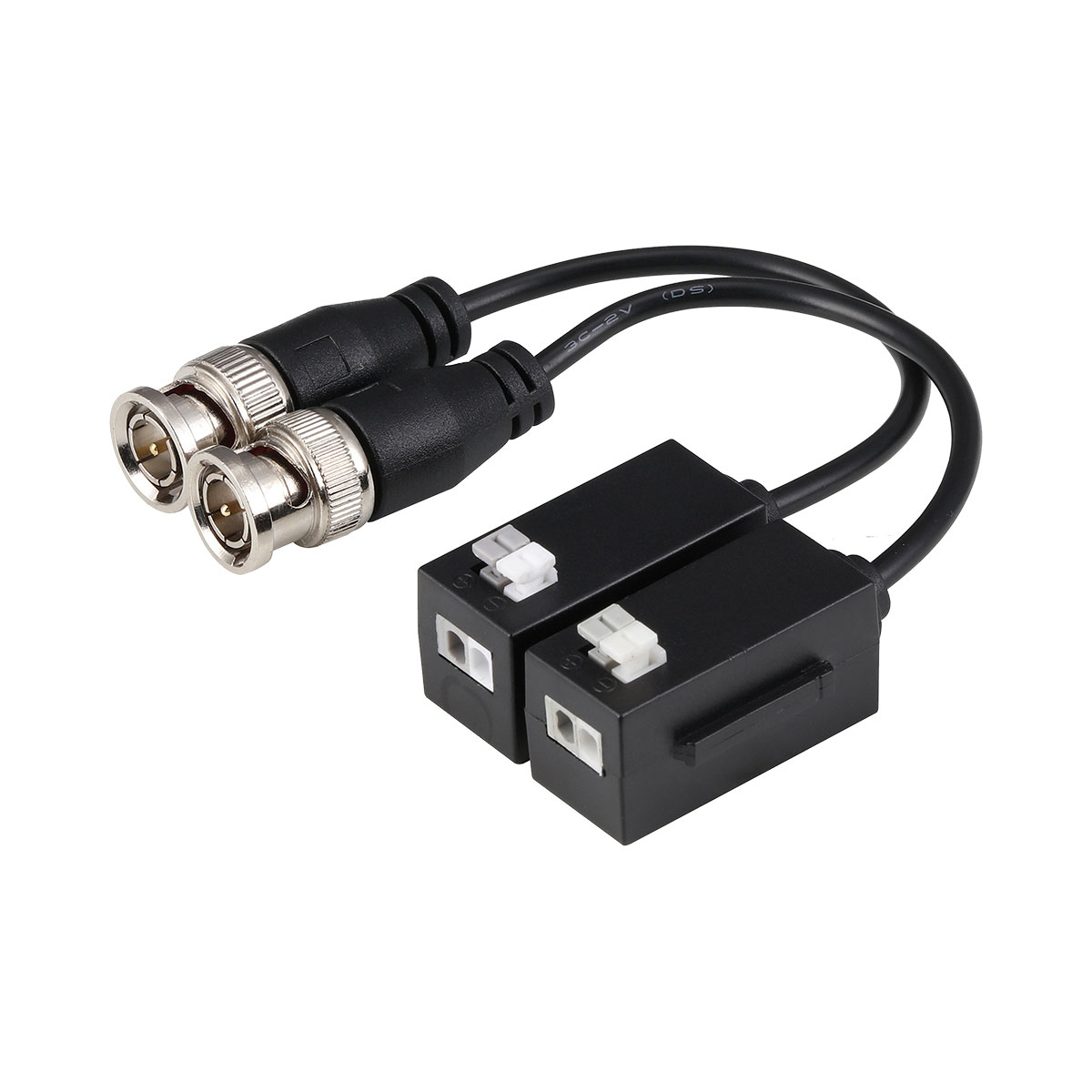

DAHUA PFM800-4K 1-CH Passive Video Balun
Product Code:
PFM800-4K
Available
DAHUA PFM800-4K 1-CH Passive Video Balun
Shipping cost calculation:
Call for pricing
Description
Characteristics
Downloads
Description
Features:
• Real-time transmission over UTP CAT5E/6 cable
• Passive, no need for power supply
• Excellent anti-thunder, anti-static and anti-interference capabilities
• Compatible format: HDCVI/TVI/AHD/CVBS
• With female BNC connector, and pluggable screw terminal connections
Characteristics
| SPECIFICATIONS | |
| Properties | |
| Transmission Signal | 1-CH |
| Network cable Type | UTP CAT5E/6 (material: CU) |
| Transmission Properties | HDCVI: 720P : max.400m 1080P : max.250m 4M/5M/4K : max.200m TVI: 720P : max.400m 1080P : max.250m 4M/5M/4K : max.200m AHD: 720P : max.400m 1080P : max.250m 4M/5M/4K : max.200m |
| Video Transmission Properties | |
| Coaxial Video Connector | BNC-M |
| Connection Way | RJ45 |
| Compatible Format | HDCVI/TVI/AHD/CVBS |
| Resolution | 720P/1080P/4MP/5MP/4K |
| Protection | |
| ESD | • 1a contact discharge electricity level 3 • 1b air discharge electricity level 3 • Per: IEC61000-4-2 |
| UTP Cable Connector | • 2KV(different-mode), 4KV(common-mode) • Per: IEC61000-4-5 |
| Impedance | |
| BNC Male Impedance | 75 ohms |
| UTP Cable Impedance | 100 ohms |
| Physical Properties | |
| Weight | 40g (1 pair) |
| Dimension(LxWxH) | 173.8mm x 19.5mm x 21mm |
| Shell | ABS |
| Color | Black |
| Environmental | |
| Operating Temperature | -30℃~+70℃ |
| Operating Humidity | <95% RH |
| Storage Temperature | -40℃~+80℃ |
| NOTE：Camera and XVR built-in POC not supported | |
