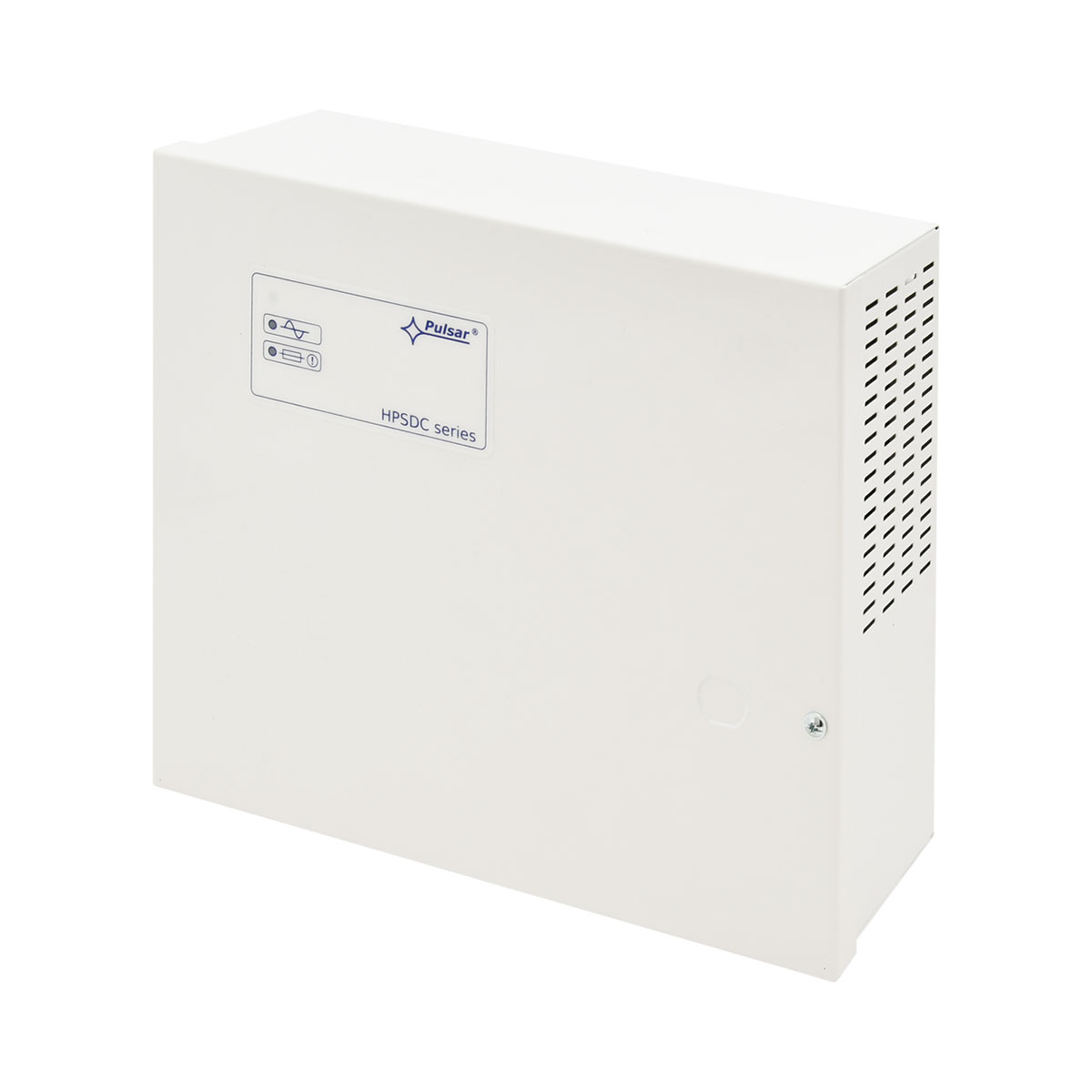

PULSAR HPSDC-12V16X1A Power Supply - Up to 8HD Cameras with Metal Box
PULSAR HPSDC-12V16X1A Power Supply - Up to 8HD Cameras with Metal Box

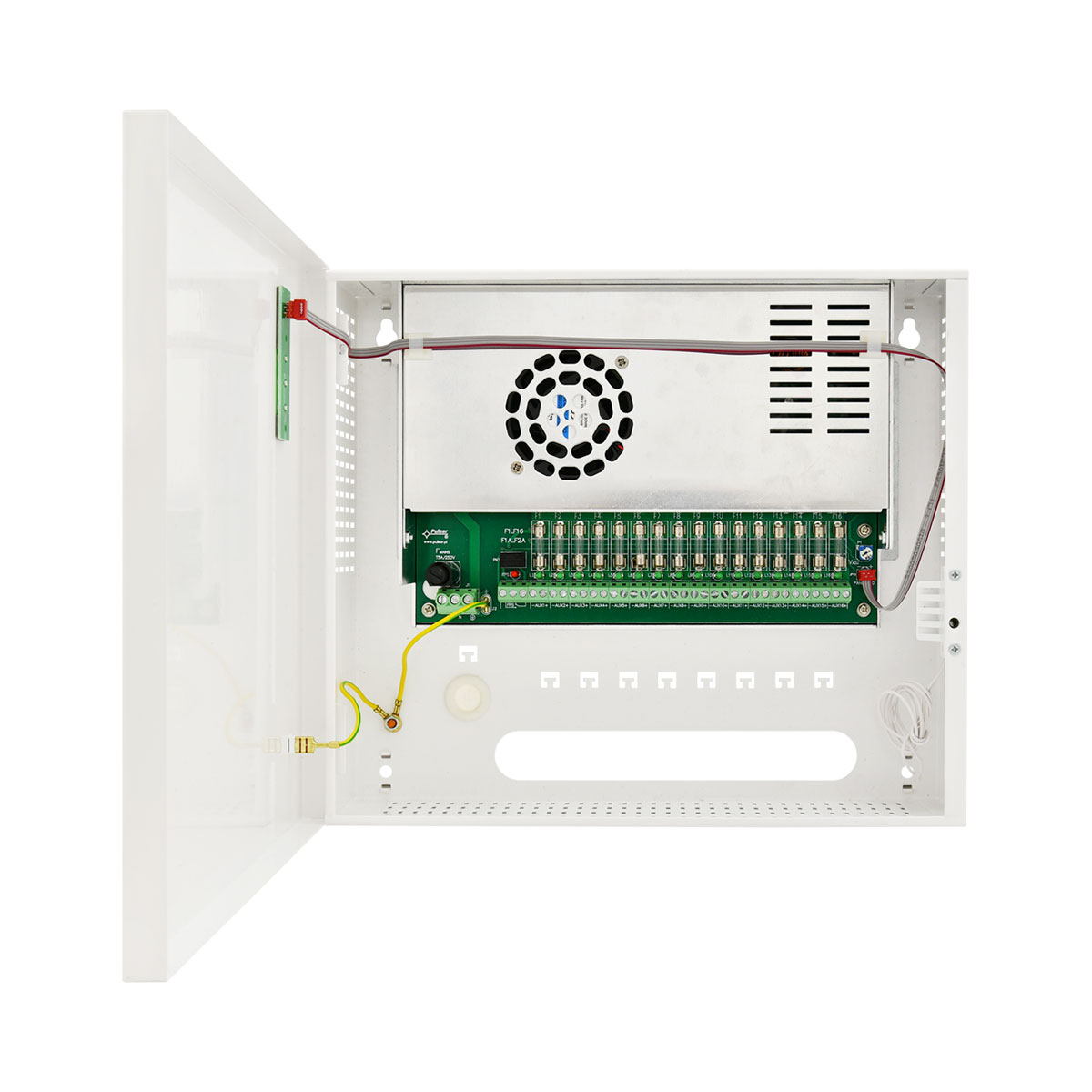

HPSDC series stabilized power supplies are designed to supply power to HD cameras or other devices requiring stabilized voltage of 12 V DC. Output voltage is adjusted with a potentiometer within the range of 12 - 15 V DC. The PSU features 16 outputs, protected independently by glass fuses. A failure (an overload, a short circuit) in the output circuit will result in blowing of the fuse Fn and disconnection of the corresponding AUXn output from the power supply. The power supplies are equipped with short-circuit, overload, overvoltage and overcurrent protection. They are mounted inside a metal enclosure equipped with a signalling panel and a microswitch indicating the opening of the door (lid).
Features:
• supply voltage ~200 - 240 V
• 16 outputs protected with fuses
• high efficiency (up to 85%)
• adjustable output voltage 12 - 15V DC
• LED optical indication
• FPS technical output of fuse activation indication
• protections:
· SCP short circuit protection
· OVP overvoltage protection
· surge protection
· OLP overload protection
· antisabotage protection: unwanted enclosure opening
| TECHNICAL DATA | |
| Power supply | 200 - 240 V AC |
| Power supply output | 16 x 1 A / 12 V DC / 180 W (15 A max.) voltage adjustment range: 12 - 15 V DC |
| Fuse | 16 x 1A (glass fuse) |
| Efficiency | 85 percent |
| Technical outputs relay type | FPS indication of output fuse activation |
| Dimensions | 300 x 258 x 77 +/-2 mm distance from surface: 8 mm |
| Protections | OVP, OLP, tamper, opening of enclosure, SCP |
| Closing | bolted (lock assembly possible) |
| Installation | surface-mounted |
| Indication | LED optical indication |
| Material | steel DC01, 0.7 mm, RAL9003 (white), metallic |
