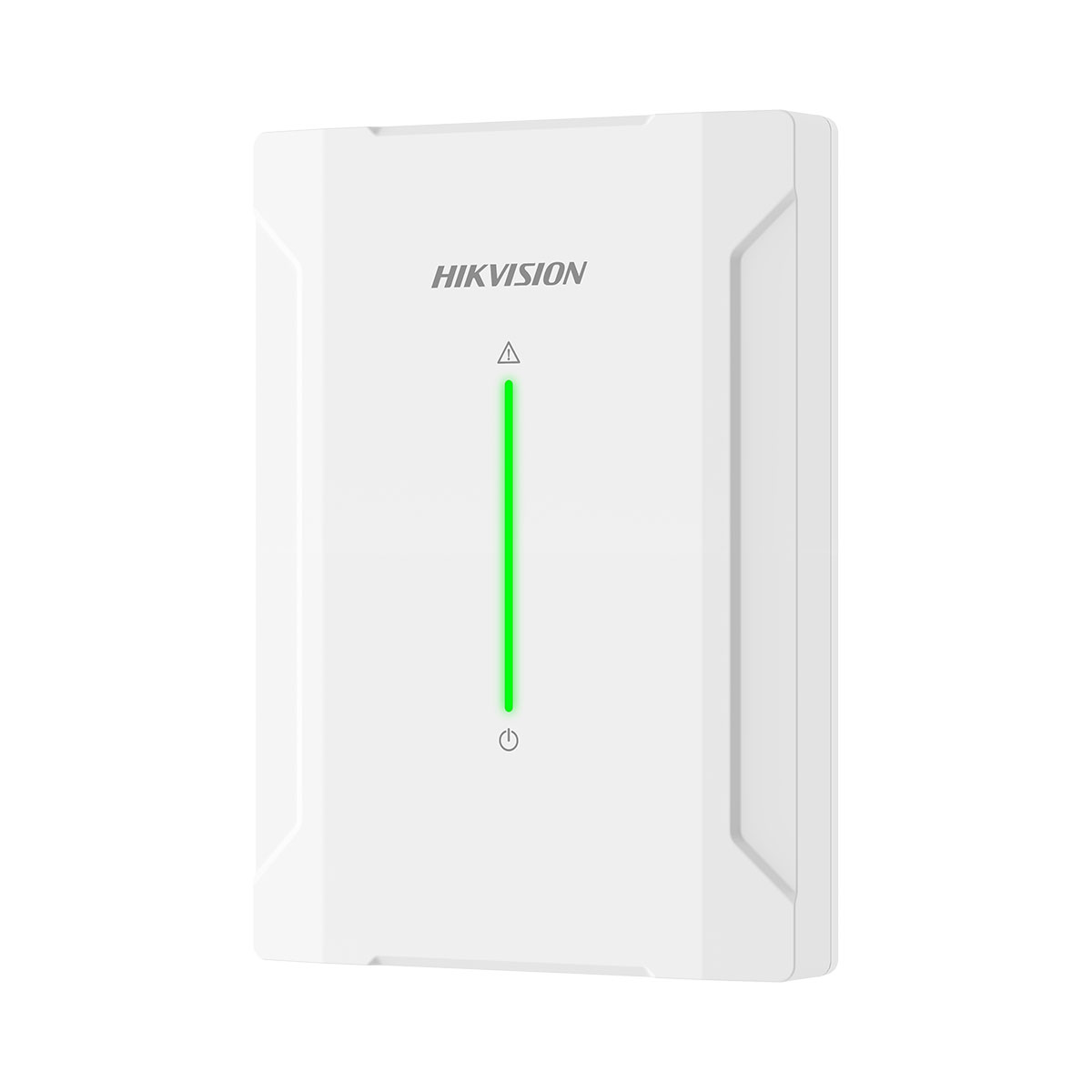

Hikvision DS-PM501Z8T4 AX Hybrid Pro Bus Input Expander
Product Code:
DS-PM501Z8T4
Available
Hikvision DS-PM501Z8T4 AX Hybrid Pro Bus Input Expander
Shipping cost calculation:
Call for pricing
Description
Characteristics
Downloads
Description
- 8 zone inputs for intrusion detection
- 4 zones configurable as PGM outputs
- 1 AUX power output for detectors
- Built-in bus extender for extended bus range
- Compatible with wide range of 3rd party wired detectors
Characteristics
| Specifications |
|
| Inputs(Zones) |
|
| Max. Zones | 8 |
| On-board zones | 8 |
| Outputs | |
| Max. outputs | 4 |
| On-board PGM outputs | 4 (Z5~Z8 programmable) |
| Bus interconnection | |
| Bus-extender | Yes |
| Bus technology | Half-Duplex RS-485 |
| Bus wiring | 4-Core Alarm Cable (at least 2×0.5mm²+2×0.22mm²) |
| Power supply - general | |
| Input voltage |
12 VDC nominal (9~16 VDC), powered by bus |
| Quiescent current |
80 mA @12VDC |
| Max. current | 150 mA @12VDC |
| Power supply - auxiliary power output | |
| Output capacity | 12VDC nominal (9~16 VDC), 500mA |
| Output protection | 500 mA PPTC |
| PGM output | |
| Output voltage |
0 VDC with switched (NPN output) |
| Max. current | 200 mA per output |
| Environmental | |
| Operating temperature | -10°C to 50°C |
| Storage temperature | -20°C to 60°C |
| Relative humidity | 10% ~ 90% non-condensing |
| Physical | |
| Dimension (W × H × D) |
110 × 155 × 31 mm |
| Weight | 225 g |
| Tamper-proof | Front and Rear |
| Installation method | Wall mount |
| Compliance | |
| Electrical conformity |
CE, CB |
| EN 50131 | Security Grade 2, Environmental Class II |
*Specifications are measured under laboratory conditions. Actual performance may vary depending on operating
environment and application-specific factors.
