AJAX SYSTEMS AJ-SOCKET-B, SOCKET BLACK
| • Control appliances remotely • Monitor power consumption • Automate your security |
Everything is ready by the time you get home
You will come back home to enjoy comfortable climate and cozy atmosphere all year round. Turn on your heating devices during winter and air conditioner during summer. Start your humidifier and heat water for your bath: do it all with only a few taps in the app on your way home.
No more worries about forgetting an iron on
When you leave your house, close the door and arm the system. All top energy consuming and dangerous appliances will be automatically switched off. Iron, heater, and toaster will no longer create a risk of fire.
Identifies power vampires

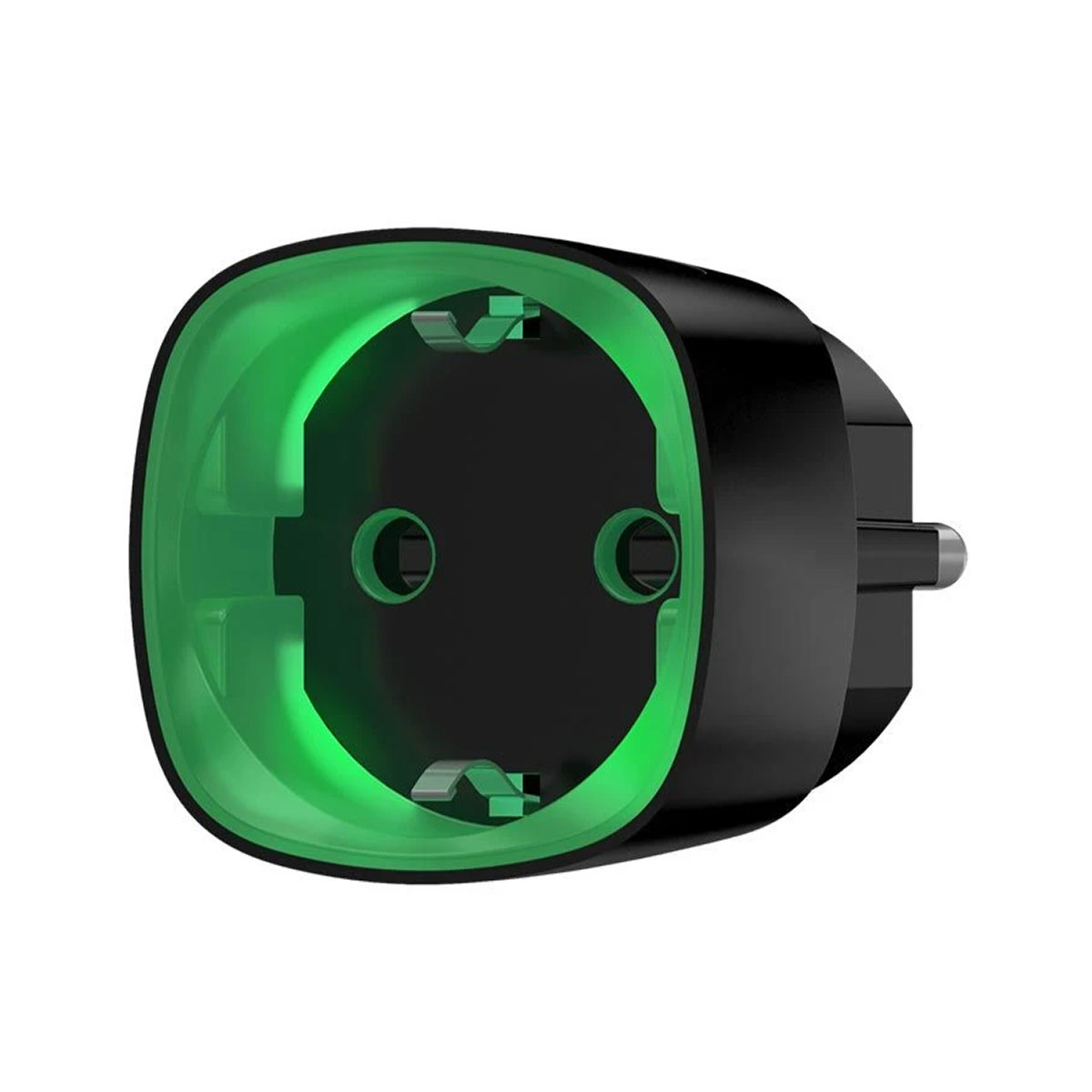

Socket informs you about the most power consuming devices. As soon as an appliance starts consuming electricity, Socket's LED changes colour in real time.
Complies with electrical safety standards
Socket complies with the standards for electrical appliances ensuring your safety. Each smart plug is fully tested: quality of materials, effect of high temperatures, ability to work for a long time under load.
Protects your curious little ones
Special shutters inside the Socket protect your children and prevent them from inserting screwdrivers, scissors, or hairpins. They also protect from dust and splashes.
Safeguard in the power grid
The device connects to the 230 V AC source and closes/opens the circuit on command. The smart plug can handle loads of up to 2.5 kW, which is enough to connect a very power-hungry devices.
Simple connection
Socket can be connected and set up in a matter of minutes. To add a Socket to the system, scan a QR code with the Ajax app, name it and assign a room. The device and automation scenarios are also configured in the app in real time.
| Power supply | |
| Power supply voltage | 110–230 V~, 50/60 Hz |
| Maximum continuous load current | 11 A |
| Output power | up to 2.5 kW (resistive load at 230 V~) up to 1.2 kW (resistive load at 110 V~) |
| Average consumption | up to 1 W |
| Current protection | more than 11 A (when Current protection is enabled) more than 13 A (when Current protection is disabled) Once the current exceeds the specified level, the plug turns off automatically. |
| Voltage protection for 230 V~ mains electricity | min — 184 V~ max — 253 V~ Once the voltage exceeds the specified levels, the plug turns off automatically. |
| Voltage protection for 110 V~ mains electricity | min — 88 V~ max — 121 V~ Once the voltage exceeds the specified levels, the plug turns off automatically. |
| Temperature protection | more than +85 °C If protection is triggered, the plug turns off. |
| Electric shock protection class | Class I (with grounding terminal) |
| Control via smartphone | The user can set up the plug configurations and receive a detailed event log in the Ajax app. |
| Automation scenarios | By arming/disarming By schedule By alarm By temperature By humidity1 By CO2 concentration1 By touching LightSwitch / pressing Button |
| Energy consumption monitor | Control of the current, voltage, power, and electric energy consumed by connected appliances. |
| Adjustable pulse duration2 | from 1 to 255 s |
| LED indication | Informs about the plug’s state and the power consumption of connected appliances with different colors. The brightness of the LED frame can be adjusted or turned off in the Ajax app. |
| Operation modes | pulse2 bistable Available on devices with firmware version 5.54.1.0 or higher manufactured after March 4, 2020. |
| Contact state | normally open normally closed |
| Childproofing | The plug is equipped with special internal shutters. They protect children by preventing them from inserting items like screwdrivers, scissors, or hairpins into the plug and also guard against dust and splashes. |
| Sabotage protection | |
| Protection against spoofing | device authentication |
| Communication loss detection | after 36 s |
| Enclosure | |
| Dimensions | 45 × 45 × 65.5 mm |
| Weight | 58 g |
| Operating temperature range | from 0 °C to +40 °C |
| Operating humidity | up to 75% with no condensation |
| Protection class | IP20 |
| Colors | Black |
| Complete set | Socket (type F) Jeweller Quick start guide |
Caution! According to current Greek Legislation, of N.F.B.A.R. and the provisions of the P.D. 98/2017 the lawful use of this product in the frequency band 863 – 870 MHz, provides for a maximum transmit power as described in the radio equipment interface requirement 105. Responsible for spectrum surveillance is H.T.P.C.
This product is CE marked, P.D. 98/2017
This product is intended for indoor and outdoor use.
