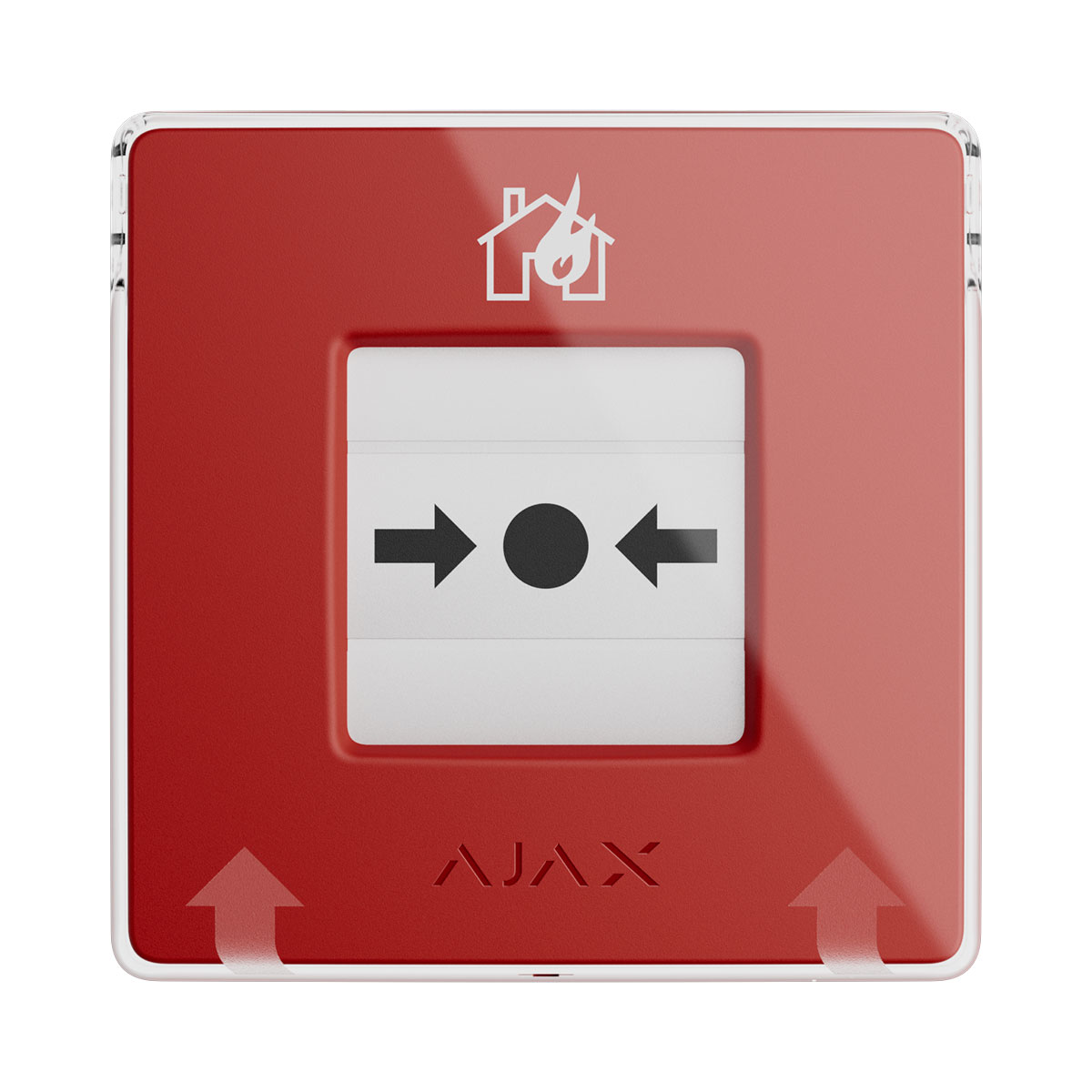

AJAX SYSTEMS AJ-MCP-R - MANUAL CALL POINT (RED)
Product Code:
AJ-MCP-R
Available
AJAX SYSTEMS AJ-MCP-R - MANUAL CALL POINT (RED)
Shipping cost calculation:
Call for pricing
Category:
Manufacturer:
Description
Characteristics
Downloads
Description
Basic fire safety. Reengineered.
ManualCallPoint (Red) Jeweller is a fast and straightforward way for anyone to activate the fire alarm. Pressing the button triggers the built-in sirens of all fire detectors in the system and informs the users. Meanwhile, the central monitoring station (CMS) receives the alarm and calls emergency services. All the data is instantly available in Ajax apps: which device was triggered, when, and where. In a life-endangering situation, Ajax innovative features follow an alarm in seconds: automation scenarios de-energize the facility, turn the emergency lights, and unlock the exits.
Explore an alternative version of ManualCallPoint
De-energize the facility, open electric locks on emergency exits, or activate ventilation with single press — resettable buttons designed for lightning-fast activation of programmable scenarios. Available in four colors: blue, green, yellow, and white.
Effortless installation and maintenance
ManualCallPoint is ready to operate straight out of the box. There is no need to disassemble the button during installation. The Ajax apps help quickly make the device a part of the system. And it can always be reconfigured remotely without site visits.
The button does not require regular manual testing. A self-test system automatically reports the device’s state to the hub. A key for after-press reset is included in the complete set.
| Warranties - Returns: | |
| Money Return: | Repair - Replacement: |
| 20 days | 24 months |
Characteristics
| Technical Specifications | |
| Compatibility | Hub 2 (2G), Hub 2 (4G), Hub 2 Plus, Hub Hybrid (2G), Hub Hybrid (4G), Hub Plus1, ReX 2, ReX |
| Communication | |
| Jeweller communication technology |
Proprietary wireless communication technology to transmit commands, alarms, and events.
Key features: |
| Maximum effective radiated power (ERP) | up to 25 mW
Automatic power control to reduce power consumption and radio interference. |
| Radio signal modulation | GFSK |
| Radio communication range | up to 1,700 m
Between button and hub (or range extender) in an open space. |
| Key features | |
| Resettable frangible element | activates the button
When the central part (frangible element) is pressed, the button depresses inward, triggering an alarm or initiating a scenario. Two yellow stripes appear at the top and bottom, indicating the device's state. |
| Operating modes | fire alarm scenario trigger With appropriate settings, it activates an alarm or controls Ajax automation devices. |
| LED status indication | fire alarm
malfunctions The LED indicator on the device enclosure lights up when a fire alarm is triggered or malfunctions are detected. |
| Interconnected fire detectors alarms | by pressing the button
By pressing the frangible element, fire detectors in the system trigger the built-in sirens. |
| Special tool (key) | |
| Button reset | after pressing
To reset the button, insert the special tool into the corresponding hole. |
| Hole in the enclosure | to hang on a ring from a keychain
The person responsible for fire safety can carry the special tool on their keychain. |
| Sabotage protection | • Tamper Alarm • Protection against spoofing • Communication loss detection |
| Power supply | |
| Battery | 2 x CR2032 Pre-installed.With typical use (one press lasting 1 minute per week), the batteries can last up to 7 years. |
| Enclosure | |
| Operating temperature range | From 0°С to +50°С |
| Operating humidity |
Up to 80%
|
| Dimensions | 102 × 104 × 34 mm |
| Weight | 214 g |
| Package contents |
ManualCallPoint (Red) Jeweller
SmartBracket mounting panel Special tool (key) 2 × CR123A battery (pre-installed) Installation kit Quick start guide |
1Discontinued product
2To install Hub Hybrid (2G) and Hub Hybrid (4G) into Case D (430), use Module Holder (type B). The installation does not meet the Grade (EN 50131) requirements. The compliant version will be available soon.
