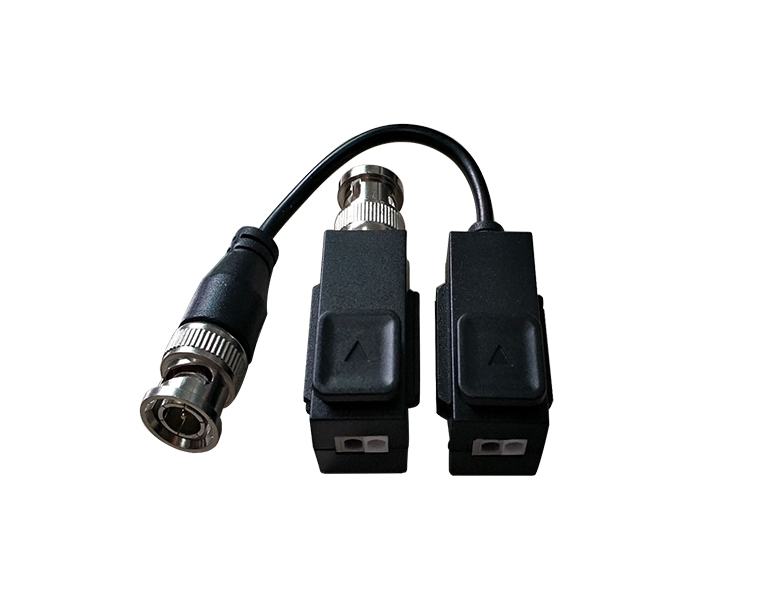

Hikvision DS-1H18S/E(C) Video Balun
• Screw interface with cable and without cable
• Mini size for easy installation
• ABS outer shell for convenient to use in intensive project
• No power required, and simplified project wiring
• Plug and play, real-time transmit CCTV HD video signal, and high quality and stable video
• Compatible with HDTVI/HDCVI/AHD
• Transmission distance: non-POC Camera: Max. 200m.
• Superior anti-interference and lighting protection and ESD
| Warranties - Returns: | |
| Money Return: | Repair - Replacement: |
| 20 days | 36 months |
| HARDWARE FEATURES | |
| Properties | |
| Transmission Signal | 1 channel |
| Transmission Distance | Non-POC Camera: Max 200m |
| Category Type | UTP CAT 5E/ 6 (R<100Ω/100M) |
| Video Transmission Properties and Port | |
| Coaxial Video Connector | BNC-M |
| Twisted-pair Video Connector | Screw Interface |
| Compatible Format | HDTVI/HDCVI/AHD |
| Resolution | 720P/1080P/3MP/4MP/5MP |
| Ant-interference | >60db |
| Protection | |
| ESD | 1a contact discharge electricity level3 |
| 1b air discharge electricity level3 | |
| Per: IEC61000-4-2 | |
| Coaxial Cable Connector | 2KV(common-code) Per:IEC61000-4-5 |
| UTP Cable Connector | 2KV(different-code), 2KV(common-code) Per:IEC61000-4-5 |
| Impedance | |
| BNC Male | 75 ohms |
| UTP Cable | 100 ohms |
| Physical Properties | |
| Shell | ABS |
| Color | Black |
| Dimensions (L x W x H) | 147mm x 14.5mm x 17mm 45mm x 14.5mm x 17mm |
| Weight | 31.2 g |
| Stability | |
| MTBF | >10000 h |
| Environmental | |
| Operating Temperature | -10 - 55ºC |
| Storage Temperature | -20 - 70ºC |
| Humidity | 0-95% (non-condensing) |
