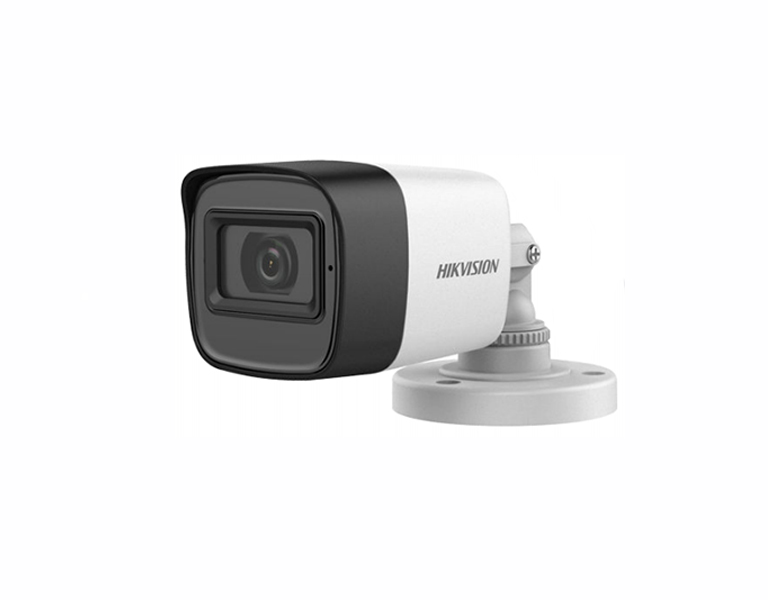

Hikvision DS-2CE16H0T-ITFS-2.8 5MP Audio Fixed Mini Bullet Camera (2.8mm)
Product Code:
DS-2CE16H0T-ITFS-2.8
2-3 Days
Hikvision DS-2CE16H0T-ITFS-2.8 5MP Audio Fixed Mini Bullet Camera (2.8mm)
Shipping cost calculation:
Call for pricing
Category:
Manufacturer:
Description
Characteristics
Downloads
Description
CAUTION!!! Package doesn't include power supply!!!
• 5 MP, 2560 x 1944 resolution
• Digital WDR
• 2.8 mm fixed focal lens
• Smart IR, up to 30 m IR distance
• Audio over coaxial cable, built-in mic
• 4 in 1 video output (switchable TVI/AHD/CVI/CVBS)
• IP67
| Warranties - Returns: | |
| Money Return: | Repair - Replacement: |
| 20 days | 36 months |
Characteristics
| Specifications | |
| Camera | |
| Image Sensor | 5 MP CMOS |
| Max. Resolution | 2560 (H) × 1944 (V) |
| Min. Illumination | 0.01 Lux@(F2.0, AGC ON), 0 Lux with IR |
| Shutter Time | PAL: 1/25 s to 1/50, 000 s NTSC: 1/30 s to 1/50, 000 s |
| Day ＆ Night | ICR |
| Angle Adjustment | Pan: 0 to 355°, Tilt: 0 to 75°, Rotation 0 to 355° |
| Signal System | PAL/NTSC |
| Lens | |
| Lens Type | 2.8 mm fixed lens |
| Focal Length ＆ FOV | horizontal FOV: 85.5°,vertical FOV: 63.7°, diagonal FOV: 110.7° |
| Lens Mount | M12 |
| Image | |
| Image Settings | Brightness, Sharpness, Mirror, Smart IR |
| Frame Rate | TVI: 5MP@20fps, 4MP@30fps, 4MP@25fps, 1080P@30fps, 1080P@25fps CVI: 4MP@30fps, 4MP@25fps AHD: 5MP@20fps, 4MP@30fps, 4MP@25fps CVBS: PAL/NTSC |
| Day/Night Mode | Auto/Color/BW (Black and White) |
| Image Enhancement | BLC |
| White Balance | ATW/MANUAL |
| AGC | Support |
| Interface | |
| Video Output | Switchable TVI/AHD/CVI/CVBS |
| General | |
| Material | Metal |
| Dimension | 58 mm × 61 mm × 158.6 mm |
| Weight | Approx. 292 g |
| Operating Condition | -40° C to 60° C , Humidity 90% or less (no condensation) |
| Communication | HIKVISION-C |
| Language | English |
| Power Supply | 12 VDC ± 25% *You are recommended to use one power adapter to supply the power for one camera. |
| Consumption | Max. 3.7 W |
| IR Range | Up to 30 m |
| Approval | |
| Protection | IP67 |
