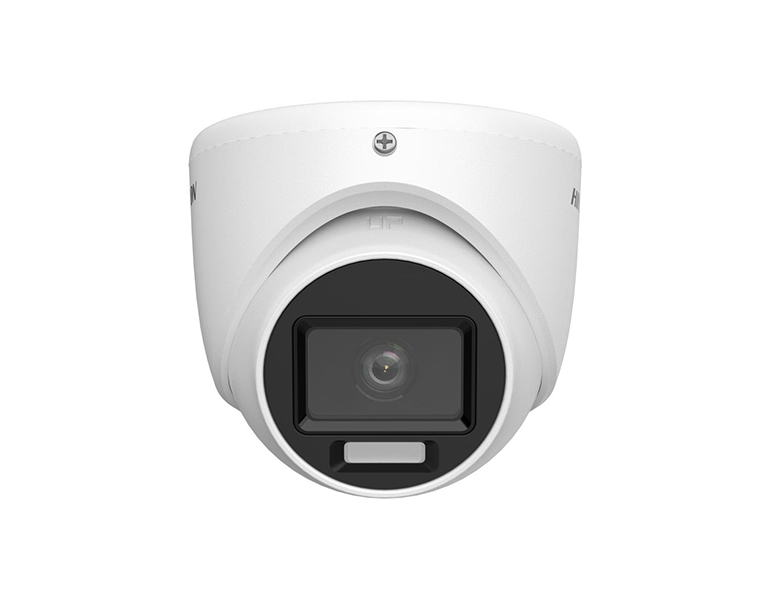

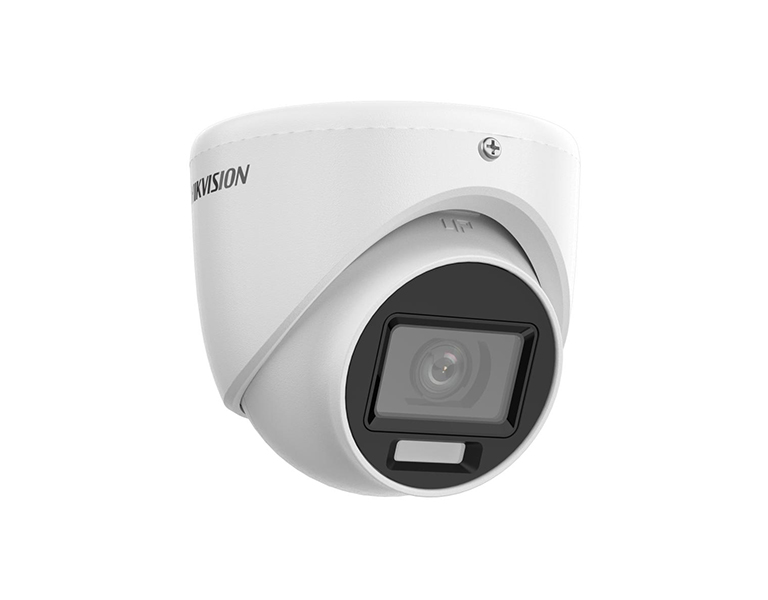

Hikvision DS-2CE76D0T-LMFS-2.8 2MP Smart Hybrid Light Audio Fixed Turret Camera (2.8mm)
Product Code:
DS-2CE76D0T-LMFS-2.8
Available
Hikvision DS-2CE76D0T-LMFS-2.8 2MP Smart Hybrid Light Audio Fixed Turret Camera (2.8mm)
Shipping cost calculation:
Call for pricing
Category:
Manufacturer:
Description
Characteristics
Downloads
Description
CAUTION!!! Package doesn't include power supply!!!
• High quality imaging with 2 MP, 1920×1080 resolution
• Up to 30 m IR distance for bright night imaging
• 2.8 mm fixed focal lens
• One port for four switchable signals (TVI/AHD/CVI/CVBS）
• Up to 20 m white light distance for bright night imaging
• High quality audio with audio over coaxial cable, built-in mic
• Water and dust resistant (IP67)
• Smart-Hybrid light, optimize your security with flexible lighting options
| Warranties - Returns: | |
| Money Return: | Repair - Replacement: |
| 20 days | 36 months |
Characteristics
| Specifications | |
| Camera | |
| Image Sensor | 2 MP CMOS |
| Signal System | PAL/NTSC |
| Resolution | 1920 (H) x 1080 (V) |
| Min. illumination | 0.01 Lux@(F1.6, AGC ON), 0 Lux with IR |
| Shutter Time | PAL: 1/25 s to 1/50,000 s NTSC: 1/30 s to 1/50,000 s |
| Day & Night | ICR |
| Angle Adjustment | Pan: 0 to 360°, Tilt: 0 to 75°, Rotation: 0 to 360° |
| Lens | |
| Lens Type | 2.8 mm fixed focal lens |
| Focal Length & FOV | horizontal FOV: 101°, vertical FOV: 56°, diagonal FOV: 118° |
| Lens Mount | M12 |
| Illuminator | |
| Supplement Light Type | White Light,IR |
| Supplement Light Range | IR : Up to 30 m White Light : Up to 20 m |
| Image | |
| Image Settings | Brightness, Sharpness, Smart IR |
| Frame Rate | TVI: 1080P @ 30 fps, 1080P @ 25 fps AHD: 1080P @ 30 fps, 1080P @ 25 fps CVI: 1080P @ 30 fps, 1080P @ 25 fps CVBS: PAL/NTSC |
| Day/Night Mode | Auto/Color/BW (Black and White) |
| White Balance | Auto/Manual |
| Image Enhancement | DWDR/BLC/HLC/Global |
| Wide Dynamic Range (WDR) | Digital WDR |
| AGC | Yes |
| Interface | |
| Video Output | Switchable TVI/AHD/CVI/CVBS |
| Built-in Microphone | Yes |
| General | |
| Operating Conditions | -40 °C to 60 °C humidity 90% or less (non-condensing) |
| Power Supply | 12 VDC ± 25% *You are recommended to use one power adapter to supply the power for one camera. |
| Power Consumption | Max. 3.3 W |
| Material | Metal |
| Language | English |
| Communication | HIKVISION-C |
| Dimensions | 80 mm × Ø 85.1 mm |
| Weight | Approx. 296 g |
| Approval | |
| Protection | IP67 |
