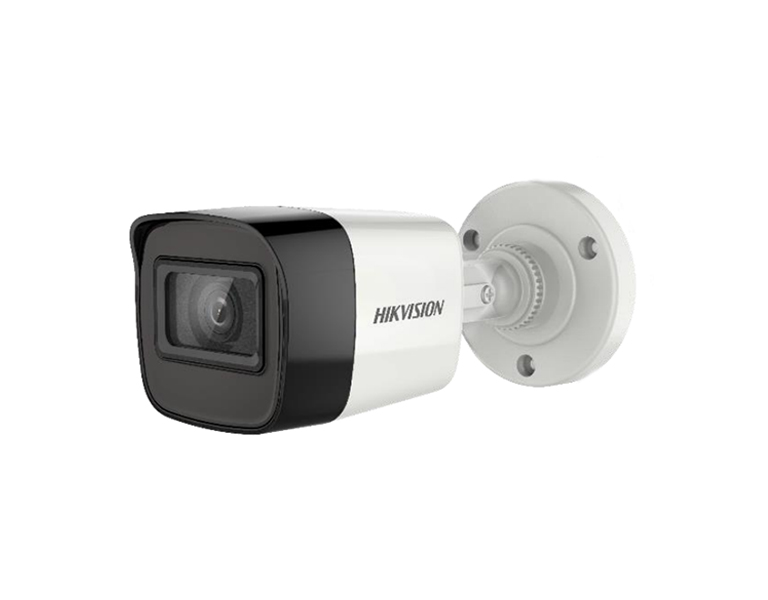

Hikvision DS-2CE16D3T-ITF-2.8 2MP EXIR Bullet Camera (2.8mm)
Product Code:
DS-2CE16D3T-ITF-2.8
2-3 Days
Hikvision DS-2CE16D3T-ITF-2.8 2MP EXIR Bullet Camera (2.8mm)
Shipping cost calculation:
Call for pricing
Category:
Manufacturer:
Description
Characteristics
Downloads
Description
CAUTION!!! Package doesn't include power supply!!!
• 2 MP high-performance CMOS
• Ultra low light
• 1920 x 1080 resolution
• 2.8 mm fixed lens
• EXIR 2.0, smart IR, up to 30 m IR distance
• OSD menu, 3D DNR, 120 dB true WDR, day/night switch
• 4 in 1 video output (switchable TVI/AHD/CVI/CVBS)
• IP67
• Up the coax (HIKVISION-C)
| Warranties - Returns: | |
| Money Return: | Repair - Replacement: |
| 20 days | 36 months |
Characteristics
| Specifications | |
| Camera | |
| Image Sensor | 2.0 megapixel progressive scan CMOS |
| Signal System | PAL/NTSC |
| Frame Rate | PAL: 1080p@25fps NTSC: 1080p@30fps |
| Resolution | 1920 (H) x 1080 (V) |
| Min. illumination | 0.005 Lux@(F1.2, AGC ON), 0 Lux with IR |
| Shutter Time | PAL: 1/25 s to 1/50,000 s NTSC: 1/30 s to 1/50,000 s |
| Slow Shutter | Max. 16 times |
| Lens | 2.8 mm |
| Horizontal Field of View | 106° |
| Lens Mount | M12 |
| Day & Night | IR cut filter |
| Angle Adjustment | Pan: 0° to 360°, Tilt: 0° to 180°, Rotation: 0° to 360° |
| Synchronization | Internal synchronization |
| WDR (Wide Dynamic Range) | ≥ 120 dB |
| Menu | |
| AGC | High/Medium/Low |
| D/N Mode | Auto/Color/BW (Black and White) |
| Image Mode | STD/HIGH-SAT |
| HLC (Highlight Compensation) | Yes |
| BLC (Backlight Compensation) | Yes |
| WDR | Yes |
| 3D DNR | Level 1 to 9 |
| Language | English |
| Functions | Brightness, Sharpness, 3D DNR, Mirror, Smart IR |
| Interface | |
| Video Output | 1 HD analog output |
| Switch Button | TVI/AHD/CVI/CVBS |
| General | |
| Operating Conditions | -40 °C to 60 °C, Humidity 90% or less (non-condensation) |
| Power Supply | 12 VDC ±25% *You are recommended to use one power adapter to supply the power for one camera. |
| Power Consumption | Max. 4.6 W |
| Protection Level | IP67 |
| Material | Metal |
| IR Range | Up to 30 m |
| Dimensions | 158 mm x 61 mm x 58 mm |
| Weight | Approx. 325 g |
