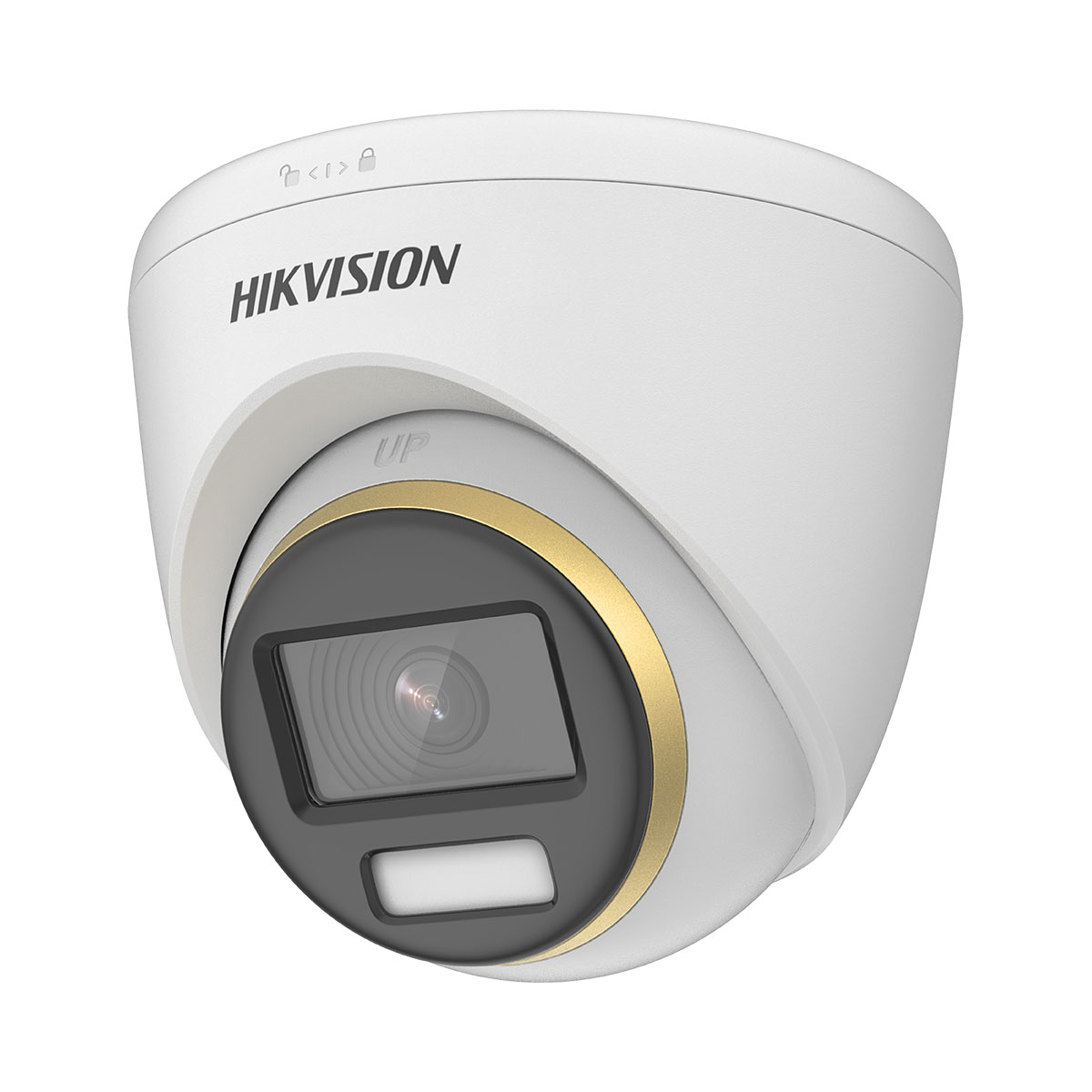

Hikvision DS-2CE72UF3T-E-2.8 4K ColorVu POC Fixed Turret Camera (2.8mm)
Product Code:
DS-2CE72UF3T-E-2.8
Available
Hikvision DS-2CE72UF3T-E-2.8 4K ColorVu POC Fixed Turret Camera (2.8mm)
Shipping cost calculation:
Call for pricing
Description
Characteristics
Downloads
Description
CAUTION!!! Package does not include power supply!!!
• High quality imaging with 8 MP, 3840 x 2160 resolution
• 24/7 color imaging
• Clear imaging against strong back light due to 130 dB true WDR technology
• 3D DNR technology delivers clean and sharp images
• 2.8 mm fixed focal lens
• Up to 40 m white light distance for bright night imaging
• Water and dust resistant (IP67)
Characteristics
| Specifications | |
| Camera | |
| Image Sensor | 8 MP CMOS |
| Signal System | PAL/NTSC |
| Resolution | 3840 (H) x 2160 (V) |
| Frame Rate | TVI: 8 MP @ 12.5 fps/15 fps, 3K @ 20 fps, 1080P @ 25 fps/30 fps |
| Min. Illumination | 0.0005 Lux@(F1.0, AGC ON), 0 Lux with white light |
| Shutter Time | PAL: 1/12.5 s to 1/50,000 s; NTSC: 1/15 s to 1/50,000 s |
| Lens | 2.8 mm fixed focal lens |
| Horizontal Field of View | horizontal FOV: 110°, vertical FOV: 59°, diagonal FOV: 131° |
| Lens Mount | M16 |
| Light Alarm | Solid Light Alarm (White Light) |
| Day & Night | Color |
| WDR (Wide Dynamic Range) | ≥130 dB |
| Angle Adjustment | Pan: 0° to 360°, Tilt: 0° to 180°, Rotation: 0° to 360° |
| Menu | |
| White Light | Auto/Off |
| Image Mode | STD/HIGH-SAT/HIGHLIGHT |
| AGC | Yes |
| Day/Night Mode | Color |
| White Balance | Auto/Manual |
| AE (Auto Exposure) Mode | WDR, BLC, HLC, Global, HLS |
| Privacy Mask | 4 programmable privacy masks |
| Motion Detection | 4 programmable motion areas |
| Noise Reduction | 3D DNR/ 2D DNR |
| Language | English |
| Function | Brightness, Contrast, Mirror, Sharpness, Anti-Banding, Smart Light |
| Interface | |
| Video Output | 1 HD analog output |
| General | |
| Operating Conditions | -40 °C to 50 °C, Humidity 90% or less (non-condensing) |
| Power Supply | 12 VDC ±25%/ PoC.at *You are recommended to use one power adapter to supply the power for one camera. |
| Power Consumption | Max. 5.1 W |
| Protection Level | IP67 |
| Material | Main Body: Metal Enclosure: Plastic |
| White Light Range | Up to 40 m |
| Communication | HIKVISION-C |
| Dimension | 194.2 mm x 78 mm x 74.5 mm |
| Weight | Approx. 350 g |
