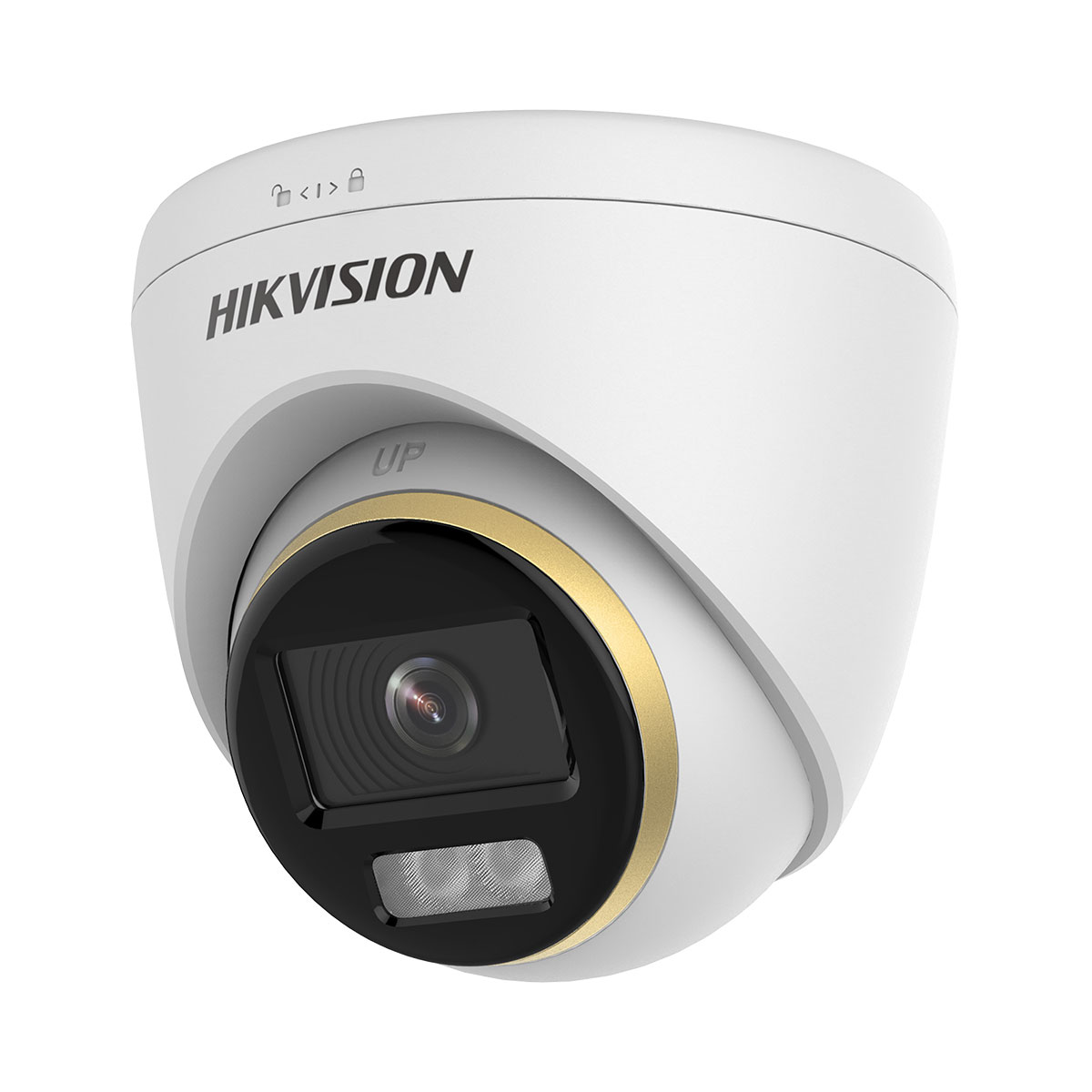

Hikvision DS-2CE72KF3T-LE-2.8 3K ColorVu PoC Fixed Turret Camera (2.8mm)
Product Code:
DS-2CE72KF3T-LE-2.8
Available
Hikvision DS-2CE72KF3T-LE-2.8 3K ColorVu PoC Fixed Turret Camera (2.8mm)
Shipping cost calculation:
Call for pricing
Description
Characteristics
Downloads
Description
CAUTION!!! Package does not include power supply!!!
Dual-Light technology is only supported if the camera is connected to a recorder with AcuSense technology!
• High quality imaging with 3K, 2960 × 1665 resolution
• Excellent low-light performance
• Clear imaging against strong back light due to 130 dB true WDR technology
• 3D DNR technology delivers clean and sharp images
• 2.8 mm fixed focal lens
• Up to 40 m white light distance for bright night imaging
• Up to 40 m IR distance for bright night imaging
• Water and dust resistant (IP67)
• 24/7 color imaging with F1.0 aperture
• Smart-Hybrid light, optimize your security with flexible lighting options
Characteristics
| Specifications | |
| Camera | |
| Image Sensor | 3K CMOS |
| Signal System | PAL/NTSC |
| Max. Resolution | 2960 (H) × 1665 (V) |
| Min. illumination | 0.0005 Lux @ (F1.0, AGC ON), 0 Lux with white light |
| Shutter Time | PAL: 1/25 s to 1/50,000 s; NTSC: 1/30 s to 1/50,000 s |
| Angle Adjustment | Pan: 0° to 360°, Tilt: 0° to 75°, Rotation: 0° to 360° |
| Lens | |
| Lens Type | 2.8 mm fixed focal lens |
| Focal Length & FOV | Horizontal FOV: 110° Vertical FOV: 59° Diagonal FOV: 139° |
| Lens Mount | M12 |
| Illuminator | |
| Supplement Light Range | IR: Up to 40 m,White Light: Up to 40 m |
| Smart Supplement Light | Yes |
| Image | |
| Frame Rate | 3K@20fps, 4MP@25fps/30fps, 1080p@25fps/30fps |
| Privacy Mask | 4 programmable privacy masks/8programmable privacy masks |
| Wide Dynamic Range (WDR) | ≥130 dB |
| Image Parameters Switch | STD/HIGH-SAT/HIGHLIGHT |
| AGC | Yes |
| Day/Night Mode | Auto/Color/BW (Black and White) |
| White Balance | Auto/Outdoor/Global/Manual |
| Image Enhancement | WDR,BLC,HLC,Global,HLS |
| Noise Reduction | 3D DNR/2D DNR |
| Image Settings | Brightness,Contrast,Mirror,Smart Light,Anti-Banding |
| Interface | |
| Video Output | 1 HD analog output |
| Event | |
| Motion Detection | 4 programmable motion areas |
| General | |
| Language | English |
| Operating Condition | -40°C to 50°C Humidity: 90% or less (non-condensing) |
| Power Supply | 12 VDC±25%, PoC.at, Max.7.8 W,*You are recommended to use one power adapter to supply the power for one camera. |
| Language | English |
| Operating Condition | -40 °C to 60 °C Humidity: 90% or less (non-condensing) |
| Material | Main body: Metal, Enclosure: Plastic |
| White Light Range | Up to 40 m |
| Communication | HIKVISION-C |
| Dimension | Φ 109.98 mm × 98.27 mm |
| Weight | Approx. 360 g |
| Approval | |
| Protection | IP67 |
