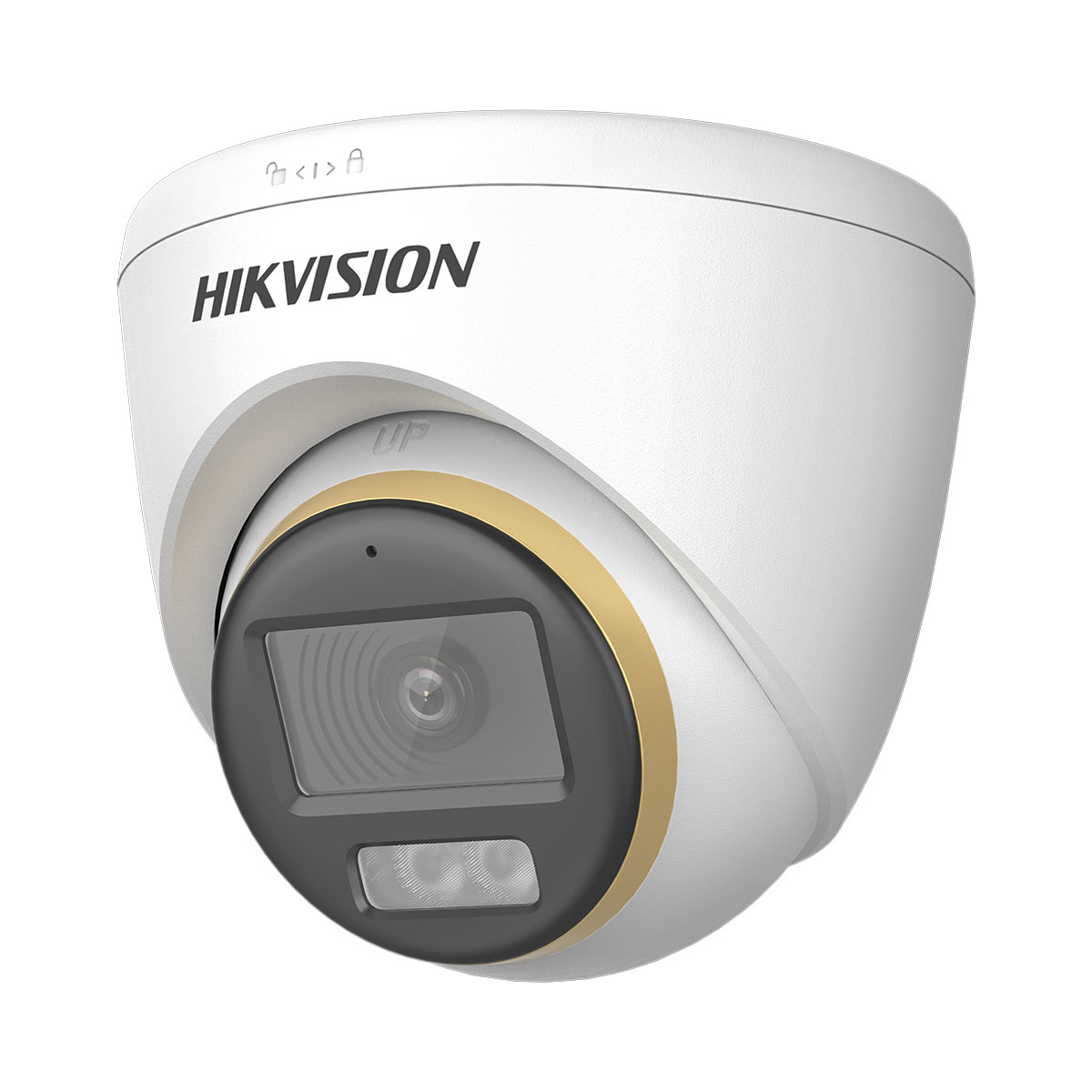

Hikvision DS-2CE72DF3T-LFS-2.8 2MP Smart Hybrid Light ColorVu Fixed Turret Camera (2.8mm)
Product Code:
DS-2CE72DF3T-LFS-2.8
Available
Hikvision DS-2CE72DF3T-LFS-2.8 2MP Smart Hybrid Light ColorVu Fixed Turret Camera (2.8mm)
Shipping cost calculation:
Call for pricing
Category:
Manufacturer:
Description
Characteristics
Downloads
Description
CAUTION!!! Package doesn't include power supply!!!
Dual-Light technology is only supported if the camera is connected to a recorder with AcuSense technology!
• High quality imaging with 2 MP, 1920 × 1080 resolution
• 24/7 color imaging with F1.0 aperture
• Smart-Hybrid light, optimize your security with flexible lighting options
• Clear imaging against strong back light due to 130 dB true WDR technology
• 3D DNR technology delivers clean and sharp images
• 2.8 mm fixed focal lens
• Up to 40 m white light distance for bright night imaging
• Up to 40 m IR distance for bright night imaging
• High quality audio with audio over coaxial cable, built-in mic
• One port for four switchable signals (TVI/AHD/CVI/CVBS)
• Water and dust resistant (IP67)
| Warranties - Returns: | |
| Money Return: | Repair - Replacement: |
| 20 days | 36 months |
Characteristics
| Specifications | |
| Camera | |
| Image Sensor | 2 MP CMOS |
| Signal System | PAL/NTSC |
| Max. Resolution | 1920 (H) × 1080 (V) |
| Min. Illumination | 0.0005 Lux @ (F1.0, AGC ON), 0 Lux with white light |
| Shutter Time | PAL: 1/25 s to 1/50,000 s; NTSC: 1/30 s to 1/50,000 s |
| Day ＆ Night | ICR |
| Angle Adjustment | Pan: 0° to 360°, Tilt: 0° to 75°, Rotation: 0° to 360° |
| Slow Shutter | Max. 16 times |
| Lens | |
| Lens Type | 2.8 mm fixed focal lens |
| Focal Length ＆ FOV | 2.8 mm, horizontal FOV: 105°, vertical FOV: 56°, diagonal FOV: 123° |
| Lens Mount | M12 |
| Illuminator | |
| Supplement Light Type | White Light, IR |
| Smart Supplement Light | Yes |
| Supplement Light Range | IR : Up to 40 m White Light : Up to 40 m |
| Image | |
| Image Parameters Switch | STD/HIGH-SAT/HIGHLIGHT |
| Image Settings | Brightness, Contrast, Sharpness, Anti-banding, AGC |
| Frame Rate | TVI: 1080p @25 fps/30 fps CVI: 1080p @25 fps/30 fps AHD: 1080p @25 fps/30 fps CVBS: PAL/NTSC |
| Day/Night Mode | Auto |
| Wide Dynamic Range (WDR) | ≥130 dB |
| Image Enhancement | WDR, BLC, HLC, Global, HLS |
| White Balance | Auto/Manual |
| Privacy Mask | 4 programmable privacy masks |
| Noise Reduction | 3D DNR |
| Interface | |
| Video Output | Switchable TVI/AHD/CVI/CVBS |
| Alarm | Solid Light Alarm(White Light) |
| Built-in Microphone | Yes |
| Event | |
| Motion Detection | 4 programmable motion areas |
| General | |
| Material | Enclosure: Plastic Main body: Metal |
| Dimension | Ø 109.98 mm × 98.27 mm |
| Weight | Approx. 340 g |
| Operating Condition | -40 °C to 60 °C Humidity: 90% or less (non-condensation) |
| Communication | HIKVISION-C |
| Language | English |
| Power Supply | 12 VDC ± 25% *You are recommended to use one power adapter to supply the power for one camera. |
| Approval | |
| Protection | IP67 |
Downloads
