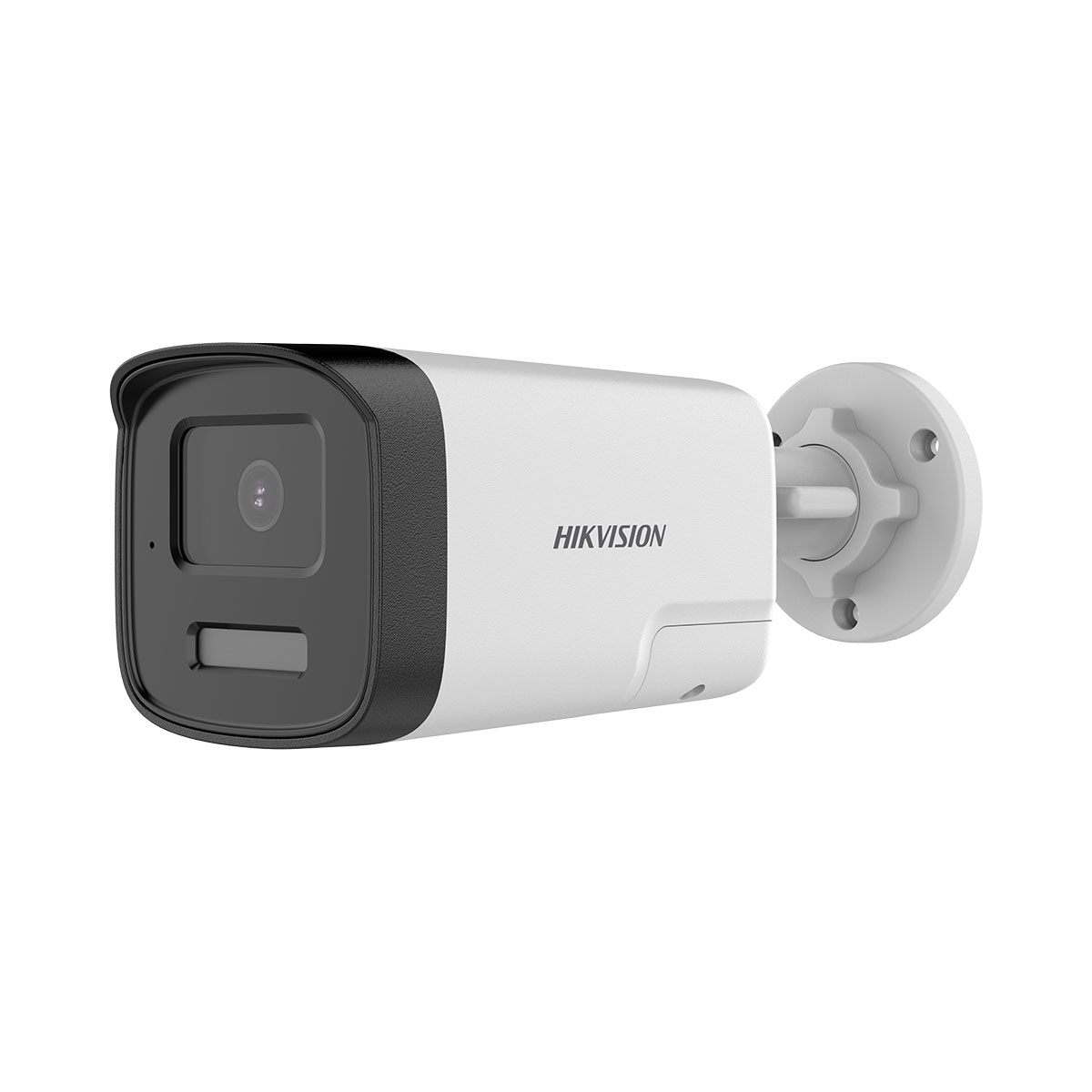

Hikvision DS-2CE17D0T-LTS-2.8 2MP Two-Way Audio Fixed Bullet Camera (2.8mm)
Product Code:
DS-2CE17D0T-LTS-2.8
Available
Hikvision DS-2CE17D0T-LTS-2.8 2MP Two-Way Audio Fixed Bullet Camera (2.8mm)
Shipping cost calculation:
Call for pricing
Description
Characteristics
Downloads
Description
CAUTION!!! Package doesn't include power supply!!!
To transmit audio signals from camera to speaker via coaxial cable, camera has to be connected with a XT series recorder.
• High quality imaging with 2 MP, 1920 × 1080 resolution
• 2.8 mm, 3.6 mm fixed focal lens
• Up to 40 m IR distance for bright night imaging
• Up to 40 m white light distance for bright night imaging
• Smart-Hybrid Light, optimize your security with flexible lighting options
• High quality audio with audio over coaxial cable, built-in mic, and built-in speaker
• Provide real-time communication via built-in two-way audio
• Water and dust resistant (IP67)
Characteristics
| Specifications | |
| Camera | |
| Image Sensor | 2 MP CMOS |
| Signal System | PAL/NTSC |
| Resolution | 1920 (H) x 1080 (V) |
| Min. Illumination | 0.01 Lux @(F1.6, AGC ON), 0 Lux with White Light |
| Shutter Time | PAL: 1/12.5 s to 1/50,000 s NTSC: 1/15 s to 1/50,000 s |
| Angle Adjustment | Pan: 0° to 360°,Tilt: 0° to 180°,Rotate: 0° to 360° |
| Day & Night | ICR |
| Lens | |
| Lens Type | 2.8 mm fixed lens |
| Focal Length ＆ FOV | 2.8 mm, horizontal FOV: 105°, vertical FOV: 59°, diagonal FOV: 127° |
| Lens Mount | M12 |
| Microphone | |
| Pickup Distance | In a radius of up to 5 m |
| Amount | 1 |
| Speaker | |
| Rated Power | 2 W |
| Speaker Range | In a radius of up to 5 m |
| Illuminator | |
| Supplement Light Type | IR, White Light |
| Supplement Light Range | IR: Up to 40 m, White Light: Up to 40 m |
| Image | |
| Image Settings | Anti-banding, Brightness, Sharpness, Smart IR |
| Frame Rate | TVI: 1080p @25 fps/30 fps |
| Day/Night Mode | Auto/Color/BW (Black and White) |
| Wide Dynamic Range (WDR) | Digital WDR |
| Image Enhancement | WDR, BLC, HLC, Global, HLS |
| Noise Reduction | 2D DNR |
| White Balance | Auto, Manual |
| Interface | |
| Video Output | 1 HD analog output |
| Audio | |
| Audio Function | Echo Cancellation, AI Noise Reduction, Automatic Gain Control |
| General | |
| Operating Conditions | -40 °C to 60 °C Humidity 90% or less (non-condensing) |
| Power Supply | 12 VDC ± 25%, max.9 W |
| Material | Main body: Metal; Enclosure: Plastic |
| Communication | HIKVISION-C |
| Dimensions | 211 mm × 83.5 mm × 80.7 mm |
| Weight | Approx. 425 g |
| Language | English |
| Approval | |
| Protection | IP67 |
