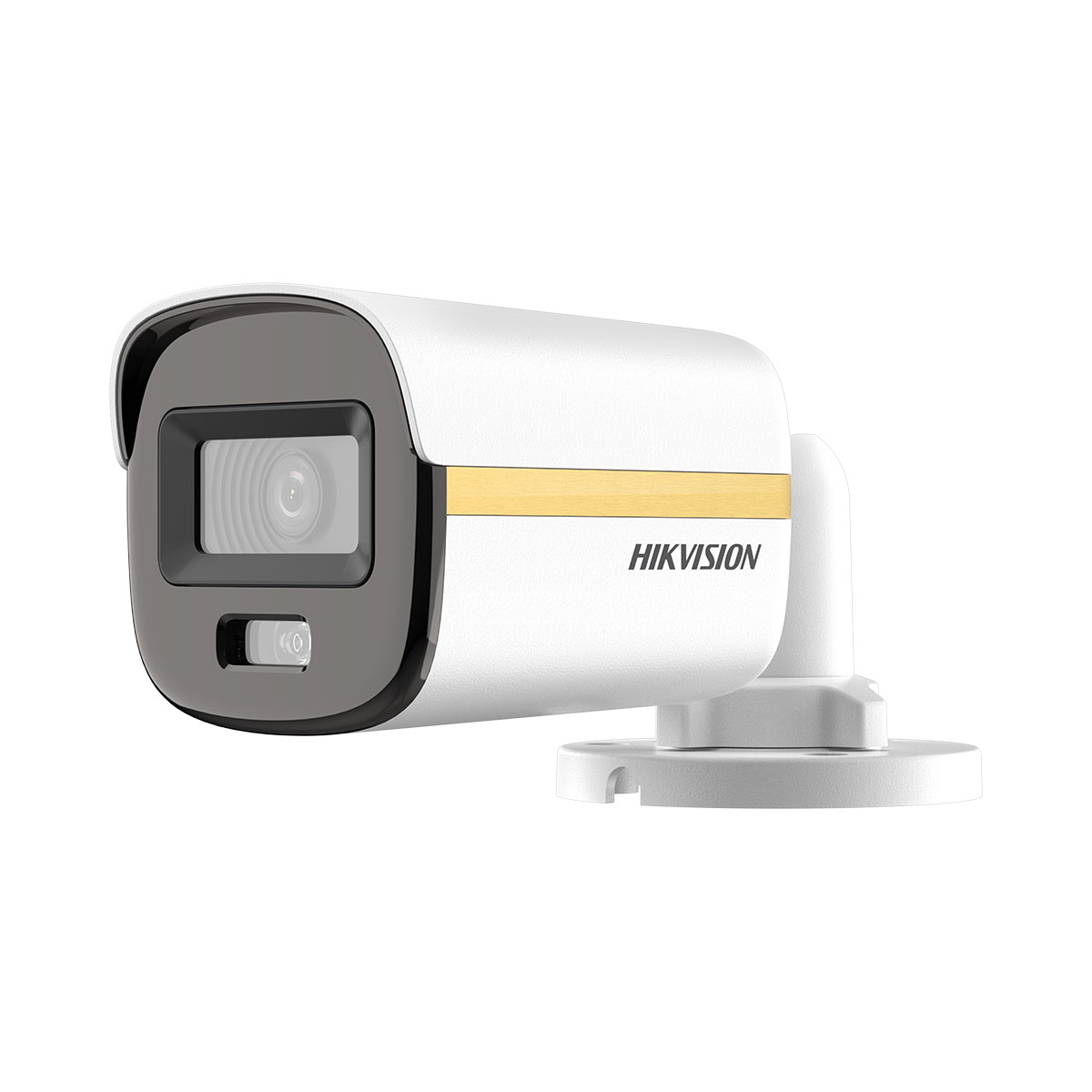

Hikvision DS-2CE10KF3T-LE-2.8, 3K ColorVu POC Fixed Mini Bullet Camera (2.8mm)
Product Code:
DS-2CE10KF3T-LE-2.8
Available
Hikvision DS-2CE10KF3T-LE-2.8, 3K ColorVu POC Fixed Mini Bullet Camera (2.8mm)
Shipping cost calculation:
Call for pricing
Description
Characteristics
Downloads
Description
- High quality imaging with 3K, 2960 × 1665 resolution
- Excellent low-light performance
- 24/7 color imaging with F1.0 aperture
- Clear imaging against strong back light due to 130 dB true WDR technology
- 3D DNR technology delivers clean and sharp images
- 2.8 mm and 3.6 mm fixed focal lens
- Up to 20 m IR distance for bright night imaging
- Up to 20 m white light distance for bright night imaging
- Water and dust resistant (IP67)
- Smart-Hybrid light, optimize your security with flexible lighting options
Characteristics
| Specifications | |
| Camera | |
| Image Sensor | 3K CMOS |
| Signal System | PAL/NTSC |
| Resolution | 2960 (H) × 1665 (V) |
| Min. Illumination | 0.0005 Lux @ (F1.0, AGC ON), 0 Lux with white light |
| Shutter Time | PAL: 1/25 s to 1/50,000 s;NTSC: 1/30 s to 1/50,000 s |
| Angle Adjustment | Pan: 0° to 360°, Tilt: 0° to 90°, Rotate: 0° to 360° |
| Lens | |
| Lens Type | 2.8 mm fixed focal lens |
| Field of View | 2.8 mm, horizontal FOV: 105°, vertical FOV: 59°, diagonal FOV: 139° |
| Lens Mount | M12 |
| Illuminator | |
| Supplement Light Type | Smart, IR, White Light |
| Supplement Light Range | IR: Up to 20 m, White Light: Up to 20 m |
| Smart Supplement Light | Yes |
| Image | |
| Privacy Mask | 4 programmable privacy masks/8programmable privacy masks |
| Frame Rate | 3K @20 fps, 4 MP @25 fps/30 fps, 1080p @25 fps/30 fps |
| Wide Dynamic Range (WDR) | ≥130 dB |
| Image Parameters Switch | STD/HIGH-SAT/HIGHLIGHT |
| White Light | Auto/Off |
| Image Mode | STD/HIGH-SAT/HIGHLIGHT |
| AGC | Yes |
| Day/Night Mode | Auto/Color |
| White Balance | Auto/Outdoor/Global/Manual |
| Image Enhancement | WDR,BLC,HLC,Global,HLS |
| Noise Reduction | 3D DNR/2D DNR |
| Image Settings | Brightness,Contrast,Mirror,Smart Light,Anti-Banding |
| Interface | |
| Video Output | 1 HD analog output |
| Event | |
| Motion Detection | 4 programmable motion areas |
| General | |
| Power | 12 VDC±25%, PoC.af, max. 5.7 W, *You are recommended to use one power adapter to supply the power for one camera. |
| Language | English |
| Weight | Approx. 400 g |
| Operating Condition | -40 °C to 60 °C humidity: 90% or less (non-condensation) |
| Communication | HIKVISION-C |
| Material | Metal |
| Dimension | 161.1 mm × 68.4 mm × 65.2 mm |
| Protection | IP67 |
