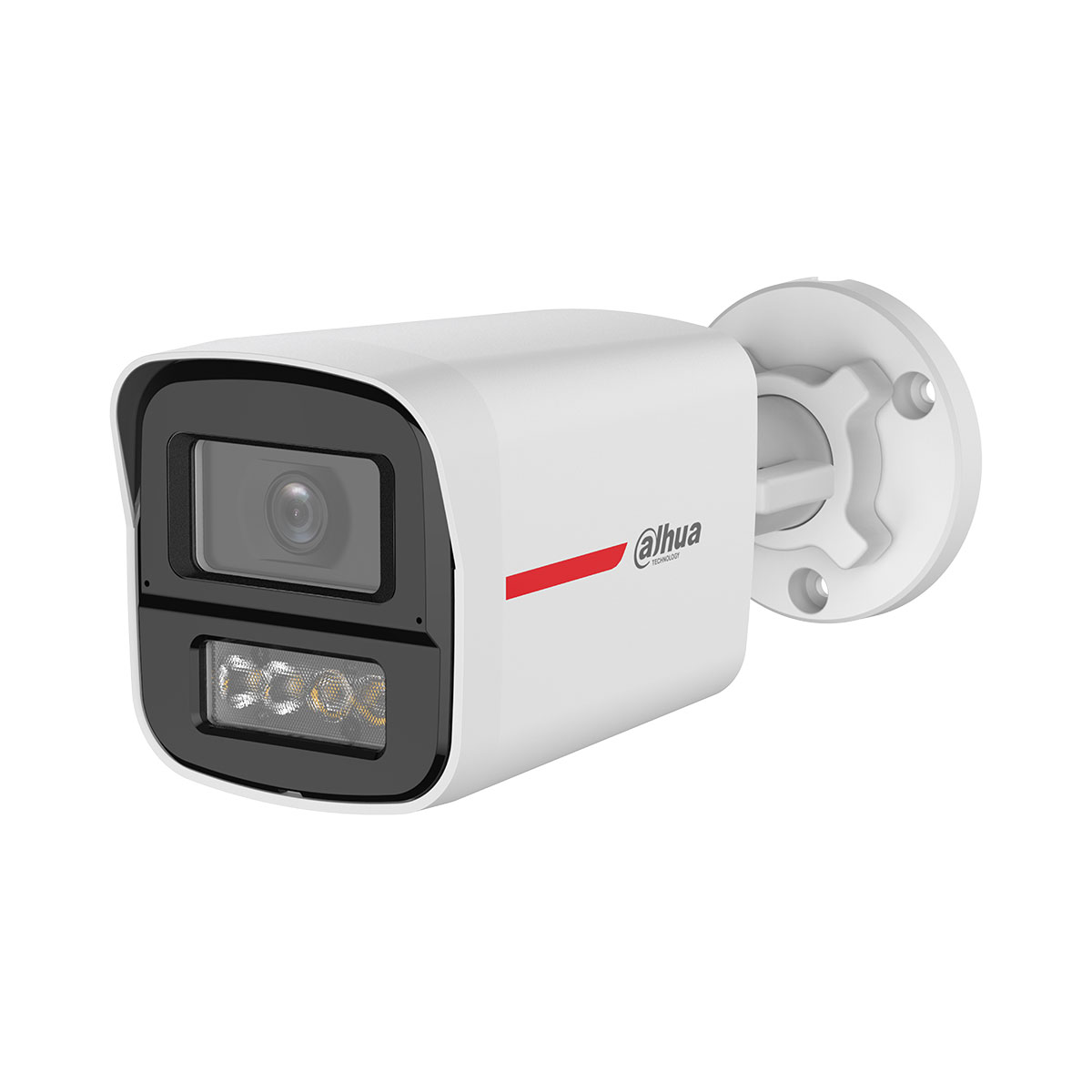

DAHUA HAC-HFW1549X-A-PRO-0280B-DIP 5MP WizColor HDCVI Fixed-Focal Bullet Camera (2.8mm)

Product Code:
HAC-HFW1549X-A-PRO-0280B-DIP
Available

DAHUA HAC-HFW1549X-A-PRO-0280B-DIP 5MP WizColor HDCVI Fixed-Focal Bullet Camera (2.8mm)

Shipping cost calculation:
Call for pricing
Manufacturer:
Warranty:
36 Months
Description
Characteristics
Downloads
Description



  •  * The parameters and datasheets below can only be applied to 1549 series.
  •  * In order to use the 5MP 16:9 HDCVI camera, the firmware of XVR must be upgraded to
  •  V4.001.0000001.0.R.200908 or later version.
  •  24/7 color imaging, Max. 25 fps@5MP (16:9 video output)
  •  AI-ISP.
  •  Distortion Correction.
  •  Smart Light+.
  •  50 m illumination distance
  •  Super Adapt,130 dB true WDR, 3D NR
  •  Built-in Dual Mic
  •  Quick-to-install eyeball saves installation time.
  •  3.6 mm fixed lens (2.8 mm optional)
  •  CVI/CVBS/AHD/TVI switchable
  •  IP67, 12 VDC

System Overview
The Lite Series is a great choice for consumers looking for high quality monitoring products at a reasonable price. Its low cost and high performance make it ideal for residential areas and SMB solutions. This series is equipped with a wide range of technologies, such as fullcolor and starlight, providing various solutions for different scenarios.

Functions
WizColor Technology
Dahua WizColor Technology seamlessly combines with the powerful AI-ISP and large aperture in cameras. This unique integration enables cameras to effortlessly capture high-quality images with vibrant colors during nighttime scenarios, ensuring fine details are preserved and minimizing motion blur. Unlike traditional self-illuminating cameras, Dahua WizColor Technology maximizes the utilization of weak light sources, such as moonlight and city lights reflected in the sky, delivering captivating full-color images of the entire scene. It also ensures that monitoring distances are not compromised at night due to limited illumination ranges, facilitating full-color image capture even over long distances.

AI-ISP
With AI ISP technology, the camera is able to easily adapt to scenes, producing high quality images that reveal the fine details of targets.

Full-color
With its advanced image processing algorithm and capability to absorb large quantities of light, the camera provides 24/7 color monitoring that collects clear and highly detailed information, significantly increasing the reliability of the human and vehicle images that are collected as evidence for intelligent analysis.

Distortion Correction
With advanced distortion correction algorithm, Dahua Distortion Correction corrects the image distortion in both horizontal and vertical directions to be consistent with the actual situation.

Smart Light+
Equipped with advanced LEDs and beam processing technology, the camera effectively reduces interference of stray light, ensuring concentrated illumination within the lens's field of view. This allows the camera to easily produce clear images that reveal the fine details of targets even in low light conditions.

Built-in Dual Mic
Equipped with Dual Mic audio processing technology combined with intelligent noise reduction algorithms, HDCVI cameras effectively suppress environmental background noise and enhance audio clarity and pickup distance, ensuring the authenticity and reliability of the captured audio information. This technology protects the integrity of audio evidence in video surveillance, making it particularly suitable for scenes that require both audio and videos for verification.

Characteristics
SPECIFICATIONS
Camera
Image Sensor 5MP CMOS
Max. Resolution 2880 (H) × 1620 (V)
Scanning System Progressive
Electronic Shutter Speed PAL: 1/25 s–1/100,000 s
NTSC: 1/30 s–1/100,000 s
Min. Illumination 0.0001 lux@F1.0 (Color, 30 IRE)
0 lux (Illuminator on)
S/N Ratio >65 dB
Illumination Distance Warm light: 50 m
Illuminator On/Off Control Auto/Manual
Illuminator Number 4 (Warm light)
Pan/Tilt/Rotation Range Pan: 0°–360°
Tilt: 0°–90°
Rotation: 0°–360°
Lens
Lens Type Fixed-focal
Lens Mount  M12
Focal Length 2.8 mm
Max. Aperture F1.0
Field of View H: 109.6°; V: 57.5°; D: 131°
Iris Control Fixed
Close Focus Distance 2.0 m
DORI Distance

Detect: 66.0 m
Observe: 26.4 m
Recognize: 13.2 m
Identify: 6.6 m

*DORI (Detect, Observe, Recognize, Identify) is a standard system
(EN-62676-4) for defining the ability of a person viewing the
video to distinguish persons or objects within a covered area.
The numbers in this table do not reflect intelligent function
distances. For intelligent function distances, refer to installation
and commissioning manual/project design tool.

Video
Video Frame Rate CVI:
PAL: 5M@25 fps; 5M@12.5 fps;
NTSC: 5M@25 fps; 5M@10 fps;
AHD:
PAL: 4M@25 fps
NTSC: 4M@30 fps
TVI:
PAL: 5M@20 fps
NTSC: 5M@20 fps
CVBS:
PAL: 960H
NTSC: 960H
Resolution 5M (2880 × 1620); 4M (2560 × 1440); 960H (960 × 576/960 × 480); TVI 5M 16:9 (2960 × 1665)
Day/Night Color
WDR 130 dB
White Balance Auto
Gain Control Auto
Noise Reduction 3D NR
Motion Detection Yes (It needs to be controlled through the XVR)
Illumination Mode Smart Light
Mirror Yes (It needs to be controlled through the XVR)
Privacy Masking Yes (It needs to be controlled through the XVR)
Certification
Certifications
CE-LVD: EN 62368-1;
CE-EMC: EN 55032; EN 55035;
Audio
Built-in Mic
Yes, built-in dual Mic
Camera Audio
CVI
Pick-up Distance  12 m
Port
Video Output Video output choices of CVI/TVI/AHD/CVBS by one BNC port (DIP Switch)
Power
Power Supply 12 VDC ± 30%
Power Consumption Max 5.8 W (12 VDC, LED on)
Environment
Operating Temperature –40 °C to +60 °C
Operating Humidity < 95% (RH), non-condensation
Storage Temperature –40 °C to +60 °C
Storage Humidity <95% (RH), non-condensing
Protection Grade IP67
Anti-corrosion Level Basic Protection
Structure
Casing Material  Metal front cover + plastic rear barrel + metal bracket
Product Dimensions 186.5 mm × 75 mm × 82.2 mm
Net Weight 0.35 kg
Gross Weight 0.49 kg
Installation Wall mount; ceiling mount; vertical pole mount
