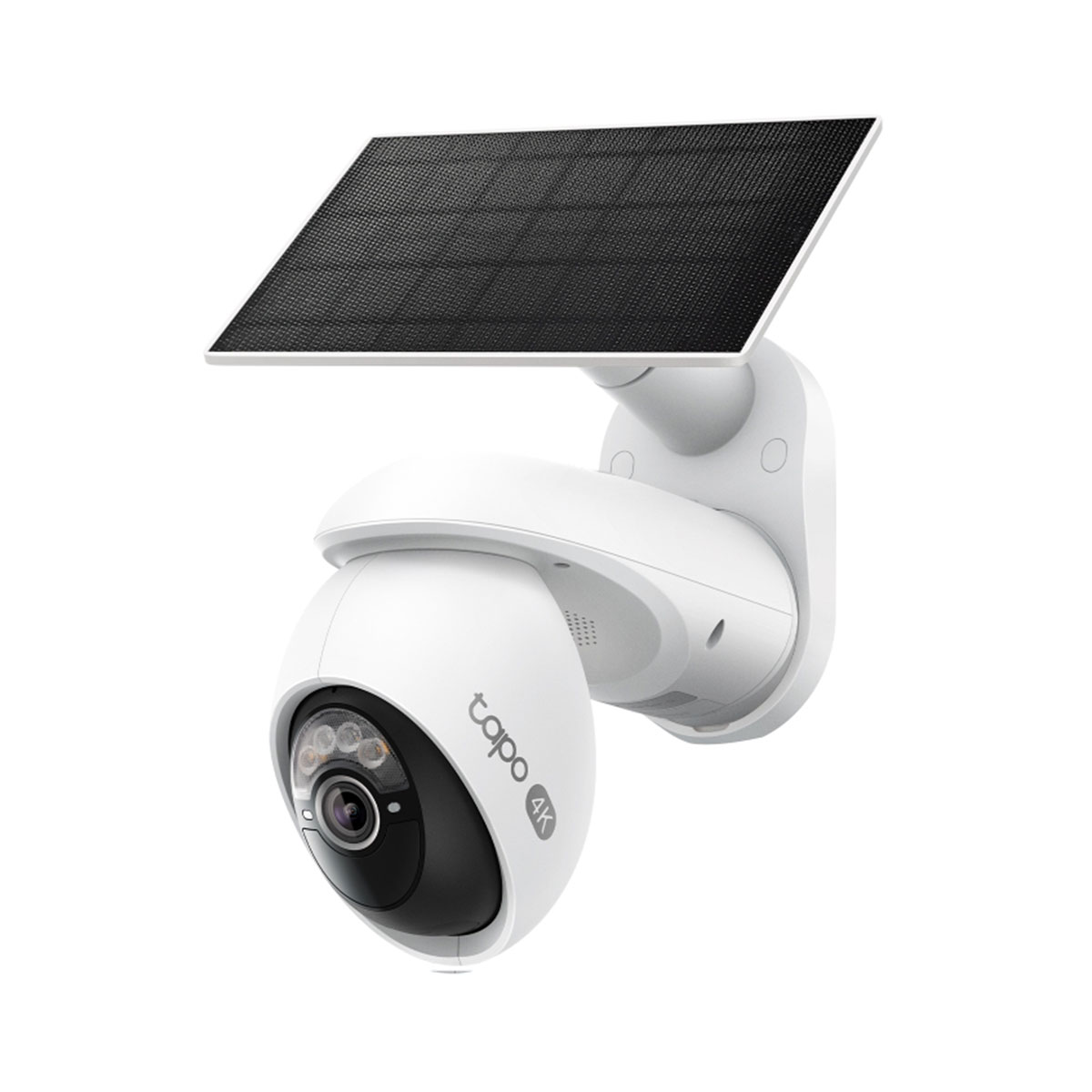

TP-LINK TAPO C660 KIT V1 Solar-Powered Pan/Tilt Security Camera Kit
TP-LINK TAPO C660 KIT V1 Solar-Powered Pan/Tilt Security Camera Kit
| • 4K Ultimate Clarity: The camera features 4K 8MP resolution and 18× digital zoom for superior clarity. • Free Person/Pet/Vehicle Detection: The camera identifies people, pets, and vehicles, reducing false alerts and unnecessary notifications. • 360° AI Tracking: The camera provides 360° coverage and accurately identifies and tracks people, pets, and vehicles. • Solar Charging, Maintenance-Free: Effortlessly monitor your space wirelessly from any location, liberating yourself from outlet limitations. • Starlight Color Night Vision: Capture vibrant images in low light. Enhance security with an F1.6 lens, starlight sensor, and spotlights. • 2.4/5 GHz Connection: Connect the camera to 5 GHz for faster speed or 2.4 GHz for longer distance |
4K Ultimate View, Sharper and Farther
Tapo 4K cameras deliver sharper, more detailed live views, making them perfect for capturing finer details like license plates, lush lawns, and moving pets
Detailed and Colorful, Even at Night
Enjoy colorful images in low-light conditions with spotlights and a starlight sensor.
24-Hour Protection
Capture all activity day and night, not just when motion is detected..
Farther Detection. Faster Alerts. No Missed Motion.
Detects movement up to 60 ft away. Longer range and smarter motion sensing means quicker alerts and no missed activity.
360° Protection Powered by AI – No Subscription Required
Faster Connection with 5 GHz
Connect the camera to 5 GHz for faster speed or 2.4 GHz for longer distance.△ Enjoy better connectivity to watch lag-free 4K live views.
Powerful Defense with Sound and Light Alarm
Scare off intruders with sound and light alarm. You can customize the alarm to fit your needs.
Flexible Storage Options
§45 min of sunlight time is based on standard environmental conditions (1000W/m2, 25°C, AM1.5) and specified working scenes (up to 100 events triggered per day). Actual required time of sunlight may vary.
*The number of automatic 360° scans and recordings is limited per day.
△5 GHz band has more bandwidth but has decreased Wi-Fi range compared to 2.4 GHz band. Ensure that your router is in range to use the 5 GHz connection.
†microSD card purchased separately. Actual storage capacity depends on the size of the microSD card used.
‡Subscribe for cloud storage at https://www.tapo.com/tapocare/
☆Tapo H500 is not included. 16TB storage capacity is based on the maximum size of the HDD/SSD drive that can be used. HDD/SSD drive purchased separately. Actual storage capacity will vary depending on the size and type (HDD or SSD) of the drive selected.
24/7 Capture enables battery-powered cameras to take images at customizable intervals (such as every 1s, 5s, 10s, or up to 60s) even when no objects are detected, ensuring round-the-clock surveillance while conserving power. When an object is detected, the camera automatically switches to a standard recording mode, reducing missed events and false alerts.
| SPECIFICATIONS | |
| Camera | |
| Image Sensor | 1/2.7“ Progressive Scan CMOS Starlight Sensor |
| Lens | Focal Length: 4 mm ± 5% Aperture: F1.6 ± 5% Field of View: 105° (Diagonal), 88° (Horizontal), 45° (Vertical) |
| Night Vision | 850 nm IR LED (12 m) Starlight Color Night Vision |
| Day/Night Switch | IR-Cut Filter with Auto-Switching |
| Lighting | 2× Built-in Spotlights Motion Activiated, App-Controlled |
| Interface & Button | 1× POWER Button 1× RESET Button 1× microSD Card Slot (Up to 512 GB) |
| Solar Panel | |
| Connection Capacity | A solar panel can only connect to one camera |
| Output Port | Type-C |
| Video & Audio | |
| Maximum Resolution | 4K 8MP (3840 × 2160 px) |
| Frame Rate | 15/20 fps |
| Digital Zoom | 18× |
| Video Compression | H.264 |
| Live View | Yes |
| Image Enhancement | 3DNR WDR |
| Audio Input & Output | Built-in Microphone and Speaker |
| Audio Communication | Two-Way Audio with Noise Cancellation |
| Siren Volume | 93.3 dBA (Level measured at 10 cm distance) 72.3 dBA (Level measured at 300 cm distance) |
| Storage | |
| Local Storage | microSD Card Slot on Camera (Up to 512 GB, Purchase Separately) |
| Cloud Storage | Tapo Care Cloud Storage Services (Subscription required) |
| Network | |
| Network Connectivity | Connect via Wi-Fi |
| Wireless Connectivity | IEEE 802.11b/g/n, 2.4 GHz Wi-Fi IEEE 802.11a/n, 5 GHz Wi-Fi |
| Transmission Rate | 11b: 11 Mbps 11a/g: 54 Mbps 11n: 72.2 Mbps |
| Protocol | TCP, UDPTCP/IP, ICMP, DNS, HTTPS, TCP, UDP |
| Detection & Notification | |
| AI Detection | Motion Detection Person Detection Vehicle Detection Pet Detection |
| Activity Zones | Yes |
| Output Notification | System Notification System Notification with Snapshot (Tapo Care Services) |
| Security | |
| Security | 128-bit AES Encryption with SSL/TLS WPA/WPA2-PSK |
| Power | |
| Power Source | Solar Panel, Built-in Rechargeable Lithium-ion Battery |
| Solar Panel Max Charging Voltage | 5.2 V |
| Solar Panel Max Charging Power | 2.5 W |
| Camera Adapter Input | 100-240 V, 50/60 Hz (Not Included) |
| Camera Adapter Output | 5.0 V, 2.0 A (Not Included) |
| Power Cord Length | USB Adapter Cable Length: 0.5m Solar Panel Charging Cable Length: 0.25m Solar Panel Extension Charging Cable Length:3.8m |
| Camera Typical Power Consumption | 1.2 W |
| Camera Maximum Power Consumption | 4.2 W |
| General | |
| Smart Integration | Google Assistant, Amazon Alexa, Samsung SmartThings |
| Weather Resistance | IP65 |
| Mounting Options | Ceiling-Mounted , Wall-Mounted |
| Operating Temperature | -20 ºC ~ 45 ºC |
| Storage Temperature | -40℃ ~ 60℃ |
| Operating Humidity | 10%~90% RH, Non-condensing |
| Storage Humidity | 0 ~ 90% RH, Non-condensing |
| Dimensions | Camera Dimensions: 185 x 147 x 75 mm Solar Panel Dimensions: 173.4 x 120.4 x 15.7 mm |
| Weight | Camera Weight: 607 g Solar Panel Weight: 144 g |
| Package Contents | Tapo C660 Camera × 1 Mounting Bracket × 1 Camera Mount Adapter × 1 USB Adapter Cable × 1 Tapo A201 Solar Panel × 1 Tapo A201 Solar Panel Bracket × 1 Base Cover × 1 Extension Wire × 1 Cable Zip Tie × 1 Mounting Screws × 7 Mounting Anchors × 7 Mounting Templates × 2 Quick Start Guide |
Caution! According to current Greek Legislation, of N.F.B.A.R. and the provisions of the P.D. 98/2017 the lawful use of this product in the frequency band 2400 – 2483,5 MHz, provides for a maximum transmit power of 100mW e.i.r.p.
At this maximum power the output power of the transmitter and the gain of the antenna are both taken into account. Responsible for spectrum surveillance is H.T.P.C.
This product is CE marked, P.D. 98/2017
This product is intended for outdoor use.
Caution! According to current Greek Legislation, of N.F.B.A.R. and the provisions of the P.D. 98/2017 the lawful use of this product in the frequency band 5150 – 5250MHz and 5250 – 5350MHz, provides for a maximum transmit power of 200 mW e.i.r.p. and in the frequency band 5470 – 5725MHz, provides for a maximum transmit power of 1 W e.i.r.p.
At this maximum power the output power of the transmitter and the gain of the antenna are both taken into account. Responsible for spectrum surveillance is H.T.P.C.
This product is CE marked, P.D. 98/2017
This product is intended for outdoor use.
