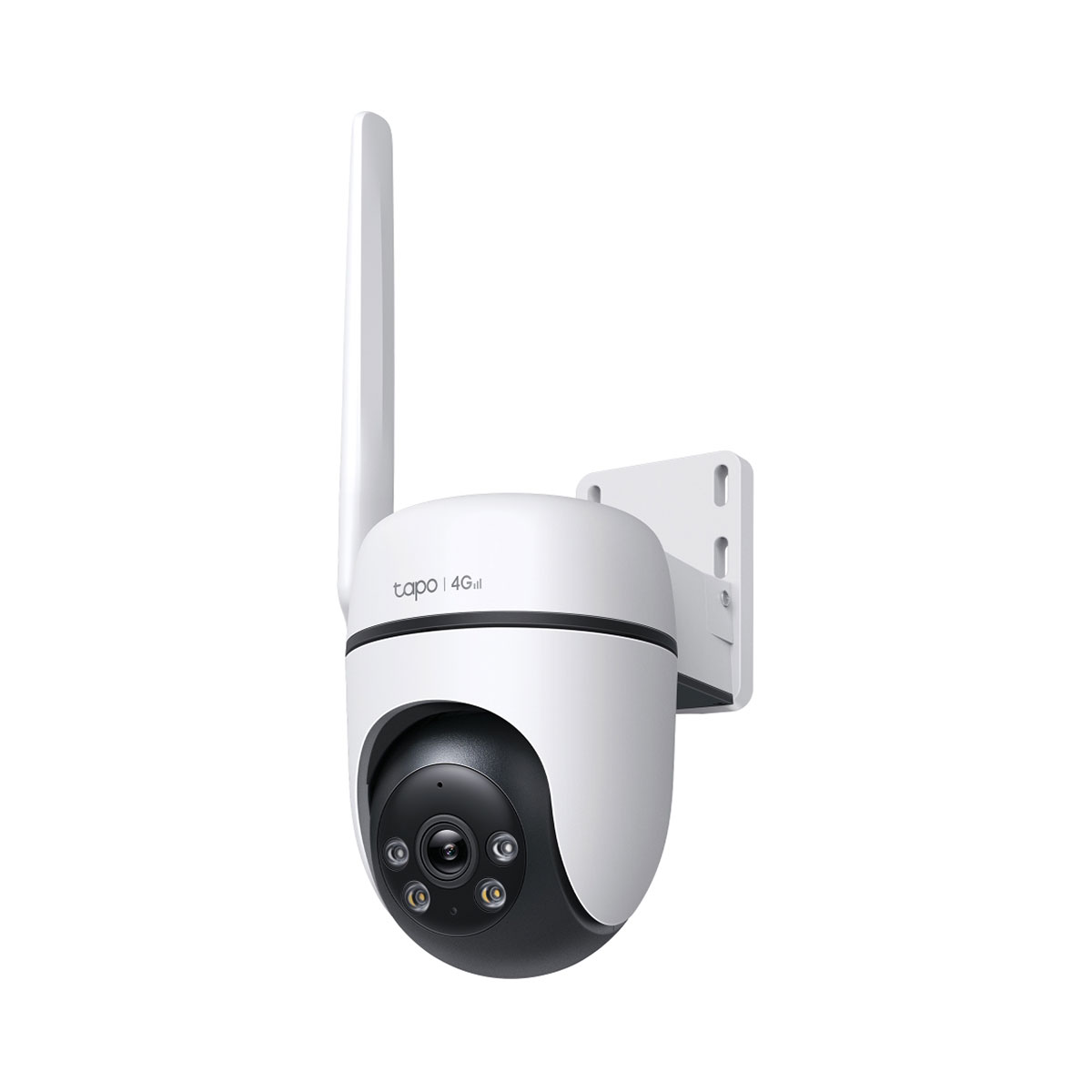

TP-LINK TAPO C501GW V2, Outdoor Pan/Tilt 4G LTE Camera, 1080p
TP-LINK TAPO C501GW, Outdoor Pan/Tilt 4G LTE Camera, 1080p
|
• No Wi-Fi, No Limit: Connects through 4G LTE networks, ideal for places where constant Wi-Fi is not available. |
Color Night Vision
Enhances your nighttime security by revealing vivid colors with built-in spotlights.
Patrol Mode
Assign points for the camera to patrol for dynamic monitoring.
Local and Cloud Storage
Save recorded video on a microSD card (up to 512 GB)† without monthly fees or by using Tapo Care‡ cloud storage services.
DC/PoE Power Supply
Power your camera with a DC adapter or Ethernet cable featuring PoE technology for safe power and stable internet.
Flexible Antenna Placement
Adjust the angle of the detachable antenna for a better internet connection.
Smart Playback
Swiftly find and download moments of interest by choosing the event type or sliding the timeline.
†microSD card purchased separately. Actual storage capacity depends on the size of the microSD card used.
‡Subscribe for cloud storage at https://www.tapo.com/tapocare/
*Compatible with Alexa and Google Assistant supported displays. User experience is dependent on the connected device’s specifications.
△Loops (purchased separately) are needed for pole mounting.
| SPECIFICATIONS | |
| Camera | |
| Image Sensor | 1/3” CMOS Sensor |
| Lens | Focal Length: 3.16 mm±5% Aperture: F1.6±10% Field of View: 116.7° (Diagonal), 99.7° (Horizontal), 53.8° (Vertical) |
| Night Vision | 850 nm IR LED (98 ft / 29.8 m), Color Night Vision |
| Day/Night Switch | IR-Mode/ Full-Color Mode |
| Interface & Button | 1× DC Port 1× Ethernet Port 1× RESET Button 1× microSD Card Slot (Up to 512 GB) 1× Nano SIM Card Slot |
| Video & Audio | |
| Maximum Resolution | 1920 x 1080 px |
| Frame Rate | 30 fps |
| Digital Zoom | None |
| Video Compression | H.264 |
| Live View | Yes |
| Image Enhancement | 3D DNR BLC Linear-WDR |
| Audio Input & Output | Built-in Microphone and Speaker |
| Audio Communication | Two-Way Audio with Noise Cancellation |
| Siren Volume | 95 dB (Level measured at 4-inch/10-cm distance) |
| Storage | |
| Local Storage | microSD Card Slot on Camera (Up to 512 GB) |
| Cloud Storage | Tapo Care Cloud Storage Services (Subscription required) |
| Detection & Notification | |
| AI Detection | Motion Detection Person Detection Pet Detection Vehicle Detection Line-Crossing Detection Camera Tampering Cat Meows Detection Dog Barks Detection Glass Breaking Detection |
| Activity Zones | Yes *Only works with Motion/Person/Pet/Vehicle Detection. |
| Output Notification | System Notification System Notification with Snapshot (Tapo Care Services) |
| Network | |
| Network Connectivity | Connect via 4G or Ethernet |
| 4G Connectivity | LTE-FDD:B1/3/5/7/8/20/28 LTE-TDD:B38/40/41 |
| Protocol | TCP/IP, DHCP, ICMP, DNS, NTP, HTTPS, TCP, UDP |
| Ethernet Port | 1× 100 Mbps RJ45 Port |
| RTSP | Yes |
| ONVIF | Yes (Only Available with Wired Network Connection) |
| Power | |
| Power Source | 12V DC Power Adapter IEEE 802.3af/at PoE |
| Input Voltage | 100-240 V, 50/60 Hz |
| Output Voltage | 12 V, 1 A (DC Power |
| DC Power Connector Size | Inside Ø: 2.1 mm Outside Ø: 5.5 mm |
| Power Cord Length | 3 m |
| Typical Power Consumption | 3.3 W |
| Maximum Power Consumption | 9.02 W |
| General | |
| Certifications | CE, NTRA, RCM, NCC, BSMI, RoHS |
| Smart Integration | Google Assistant, Amazon Alexa |
| Weather Resistance | IP66 |
| Mounting Options | Eave-Mounted Wall-Mounted Pole-Mounted (Pole-Mounting loops required but not included) |
| Operating Temperature | -30 ℃ ~ 60 ℃ |
| Storage Temperature | -40 ℃ ~ 60 ℃ |
| Operating Humidity | 10% ~ 90% RH, Non-condensing |
| Storage Humidity | 0 ~ 90% RH, Non-condensing |
| Dimensions | 140 × 106 × 234 mm |
| Weight | 430 g |
| Package Contents | Tapo C501GW Camera ×1 DC Power Adapter ×1 Mounting Templates ×2 Mounting Bracket ×1 Mounting Anchors ×4 Mounting Screws ×4 Bracket Screws ×2 Detachable Antenna ×1 Waterproof Seal ×1 Waterproof Cable Attachments ×1 Quick Start Guide |
