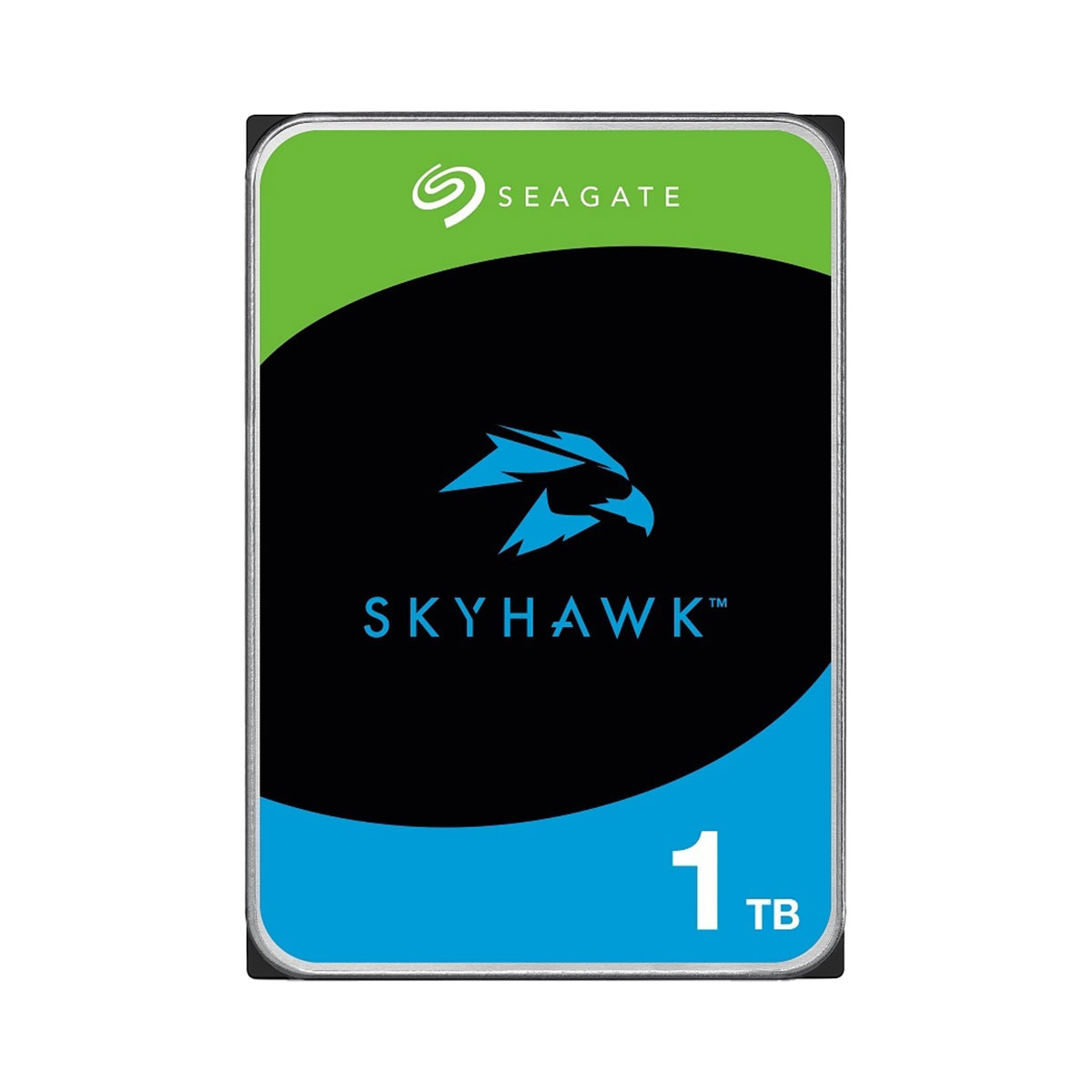

Seagate HDD SKYHAWK 1TB, 3.5'', ST1000VX001
Seagate HDD SKYHAWK 1TB, 3.5'', ST1000VX001
IMPORTANT NOTICE:
Due to limited global availability of HDDs for recording systems, the purchase of HDD units is available only in combination with the simultaneous purchase of an equal quantity of recorders, until market conditions are fully normalized.
The New Generation SV Drive
• The industry's first surveillance-optimized hard drive precision-tuned for high write surveillance workloads operating 24x7
• Capacities up to 8TB support 64 cameras per drive and 8+ 1 drives per system
• Engineered for workloads of 180TB/year, three times that of desktop drives
• Low power consumption and startup current to minimize heat and vibration emission, improving long-term drive reliability
• Tarnish-resistant components to help protect drive from environmental elements, increasing field reliability
• Customize power settings for incremental savings during system downtime without compromising time to record
• Reliable performance in multi-drive systems with support from RV sensors
• Optional 3-year +Rescue Data Recovery Service plan to help protect against data loss from viruses, software issues or mechanical and electrical breakdowns
Best-Fit Applications
• NVR
• Embedded SDVR
• Hybrid SDVR
• Surveillance DVR
1. Drives with Rotational Vibration sensors can be used in systems with 8+ drive bays. Drives without
Rotational Vibration are ideal for systems with 8 or fewer drives.
| Specifications | |
| Interface | SATA 6 Gb/s |
| Cache | 64MB |
| Bytes per Sector | 4096 |
| Performance | |
| R/V (Rotational Vibration) Sensor | No |
| Drive bays supported | 1 to 8 |
| Cameras Supported | Up to 64 |
| Max Sustainable Transfer Rate | 180MB/s |
| Voltage | |
| Voltage Tolerance, Inc. Noise (5V) | ±5% |
| Voltage Tolerance, Inc. Noise (12V) | ±10% |
| Power Management | |
| Startup Power (12V, A) | 1.8 |
| Average Operating Power | 5.6W |
| Idle Average (W) | 4W |
| Standby Mode | 0.5W |
| Sleep Mode | 0.5W |
| Environmental/Temperature | |
| Operating (ambient, min) | 0°C |
| Operating (drive case, max) | 75°C |
| Nonoperating (ambient, min) | -40°C |
| Nonoperating (ambient, max) | 70°C |
| Reliability | |
| Tarnish Resistant | No |
| Load/Unload Cycles | 300,000 |
| Nonrecoverable Read Errors per Bits Read, Max | 1 per 10E14 |
| MTBF (Hours) | 1,000,000hr |
| Power-On Hours | 8,760 |
| Physical | |
| Height (mm) | 20mm |
| Width (mm, max) | 101.85mm |
| Depth (mm, max) | 147mm |
| Weight (g) | 400g |
