Description

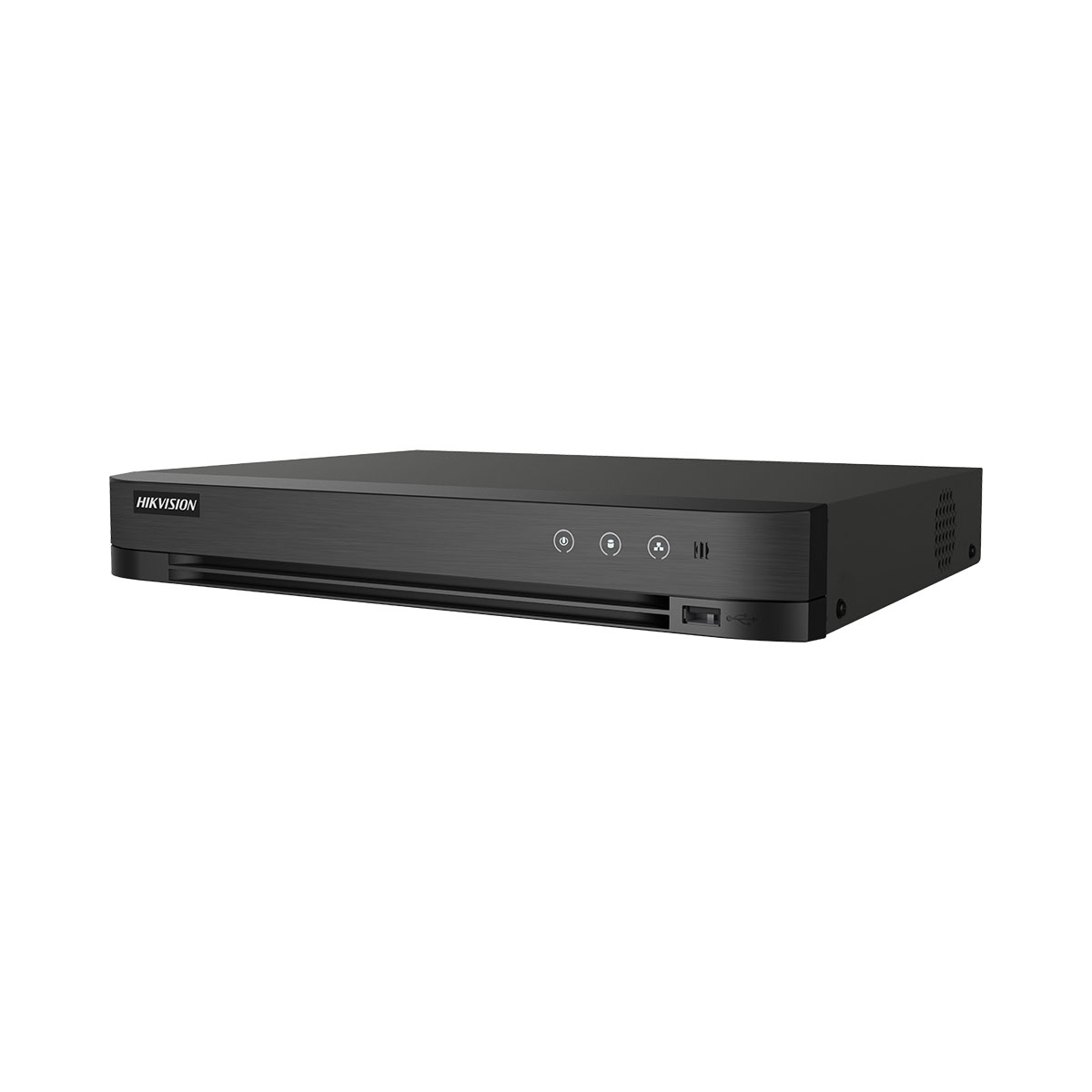

• 4 channels and 1 HDD 1U AcuSense DVR
• Support 2-ch Facial Recognition or 4-ch advanced model Perimeter Protection based on Deep Learning algorithm
• Efficient H.265 pro+ compression technology
• Encoding ability up to 4K @ 8fps(1-ch); 3K/5MP @12fps
• Up to 8 network cameras can be connected
• 5 signals input adaptively (HDTVI/AHD/CVI/CVBS/IP)
• Support All channels Motion Detection technology
| Warranties - Returns: | |
| Money Return: | Repair - Replacement: |
| 20 days | 36 months |
Characteristics
| Specifications | |
| Facial Detection¹ | |
| Face Picture Library | Up to 16 face picture libraries |
| Face Picture Comparison | Face picture comparison, face picture search 2-ch face picture comparison alarm (HD analog camera) |
| Perimeter Protection | |
| Human/Vehicle Analysis | Up to 4-ch |
| Recording | |
| Video compression | H.265 Pro+/H.265 Pro/H.265/H.264+/H.264 |
| Encoding resolution | Main stream: 8 MP@8 fps/5 MP@12 fps/4 MP@15 fps/3 MP@18 fps 1080p/720p/WD1/4CIF/VGA/CIF@25 fps (P)/30 fps (N) *: 8 MP@8 fps is only available for channel 1 |
| Sub-stream: WD1/4CIF/CIF@25 fps (P)/30 fps (N) |
|
| Video bitrate | 32 Kbps to 10 Mbps |
| Dual stream | Support main stream or sub stream |
| Stream type | Video, Video & Audio |
| Audio compression | G.711u |
| Audio bitrate | 64 Kbps |
| Video and Audio | |
| IP Video Input | 2-ch (up to 6-ch) Up to 8 MP resolution IP enhanced mode on: 4-ch (up to 8-ch), each up to 4 Mbps Support H.265+/H.265/H.264+/H.264 IP cameras |
| Analog Video Input | 4-ch BNC interface (1.0 Vp-p, 75 Ω), supporting coaxitron connection |
| AHD input | 5 MP(2560 × 1944)@20 fps, 5 MP(2560 × 1944)@12 fps, 4 MP(2560 × 1440)@30 fps, 4 MP(2560 × 1440)@25 fps, 1080p@30 fps, 1080p@25 fps, 720p@30 fps, 720p@25 fps |
| HDCVI input | 8 MP(3840 × 2160)@15 fps, 8 MP(3840 × 2160)@12 fps, 5 MP(2592 × 1944)@20 fps, 4 MP(2560 × 1440)@30 fps, 4 MP(2560 × 1440)@25 fps, 1080p@30 fps, 1080p@25 fps, 720p@30 fps, 720p@25 fps |
| CVBS input | PAL/NTSC |
| CVBS output | 1-ch, BNC (1.0 Vp-p, 75 Ω), resolution: PAL: 704 × 576, NTSC: 704 × 480 |
| VGA output | 1-ch, 1920 x 1080/60Hz, 1280 x 1024/60Hz, 1280 x 720/60Hz, 1024 x 768/60Hz HDMI/VGA simultaneous output |
| HDMI output | 1-ch, 2K (2560 x 1440)/60Hz, 1920 x 1080/60Hz, 1280 x 1024/60Hz, 1280 x 720/60Hz, HDMI/VGA simultaneous output |
| HDTVI Input | 8 MP(3840 × 2160)@15 fps, 8 MP(3840 × 2160)@12 fps, 3K(2960 x 1665)@20 fps, 5 MP(2560 × 1944)@20 fps, 5 MP(2560 × 1944)@12 fps, 4 MP(2560 × 1440)@30 fps, 4 MP(2560 × 1440)@25 fps, 3 MP@18 fps,1080p@30 fps, 1080p@25 fps,720p@30 fps, 720p@25 fps |
| Audio input | 1-ch, BNC (1.0 Vp-p, 75 Ω), resolution: PAL: 704 × 576, NTSC: 704 × 480 |
| Audio output | 1-ch, RCA (Linear, 1 KΩ) |
| Two-way audio | 1-ch, RCA (2.0 Vp-p, 1 KΩ) (using the first audio input) |
| Synchronous playback | 4-ch |
| Network | |
| Total Bandwidth | 96 Mbps |
| Remote connections | 32 |
| Network protocols | TCP/IP, PPPoE, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, NFS, iSCSI, UPnP™, HTTPS, ONVIF |
| Network interface | 1, RJ45 10/100 Mbps self-adaptive Ethernet interface |
| Auxiliary interface | |
| SATA | 1 SATA interface |
| Capacity | Up to 10 TB capacity for each disk |
| Serial interface | RS-485 (half-duplex) |
| USB interface | Front panel: 1 x USB 2.0 Rear panel: 1 x USB 2.0 |
| Alarm in/out | N/A |
| General | |
| Power supply | 12 VDC, 1.5 A |
| Consumption (without HDD) | ≤ 10 W |
| Working temperature | -10 °C to +55 °C |
| Working humidity | 10% to 90% |
| Dimension(WxDxH) | 315 x 242 x 45 mm |
| Weight (without HDD) | ≤ 1.16 kg |
