Ubiquiti UNVR-INSTANT, Network Video Recorder Instant
The modern network video recorder is designed for reliable management of security camera systems. It allows the connection of up to 15 HD or 6 4K cameras and provides storage space supporting 1 × 3.5" HDD. Thanks to the port configuration featuring 7 GbE and 1 HDMI, it ensures easy integration into the network and convenient access to live footage. Management through the UniFi Protect application offers an intuitive user interface that is appreciated by both home users and professional administrators.
Reliable performance and smooth operation
The device is equipped with a quad-core ARM Cortex-A55 processor at 1.7 GHz and 4 GB of memory, which guarantees fast data processing even with a larger number of connected cameras. PoE support with a budget of 40 W and an internal power supply contribute to continuous and secure system operation. The compact desktop design with included mounting options allows for flexible installation in various environments, from homes to smaller business spaces.
Security and durability in every detail
The video recorder complies with NDAA regulations and is certified by FCC, IC, and CE organizations, confirming its reliability and safety in everyday operation. With a temperature operating range of 0–40 °C and humidity of 5–95%, it is ready to provide stable performance even in more demanding conditions. With a combination of high performance, easy management, and robust data protection, it represents an ideal choice for anyone looking for a reliable surveillance system with long-term prospects.

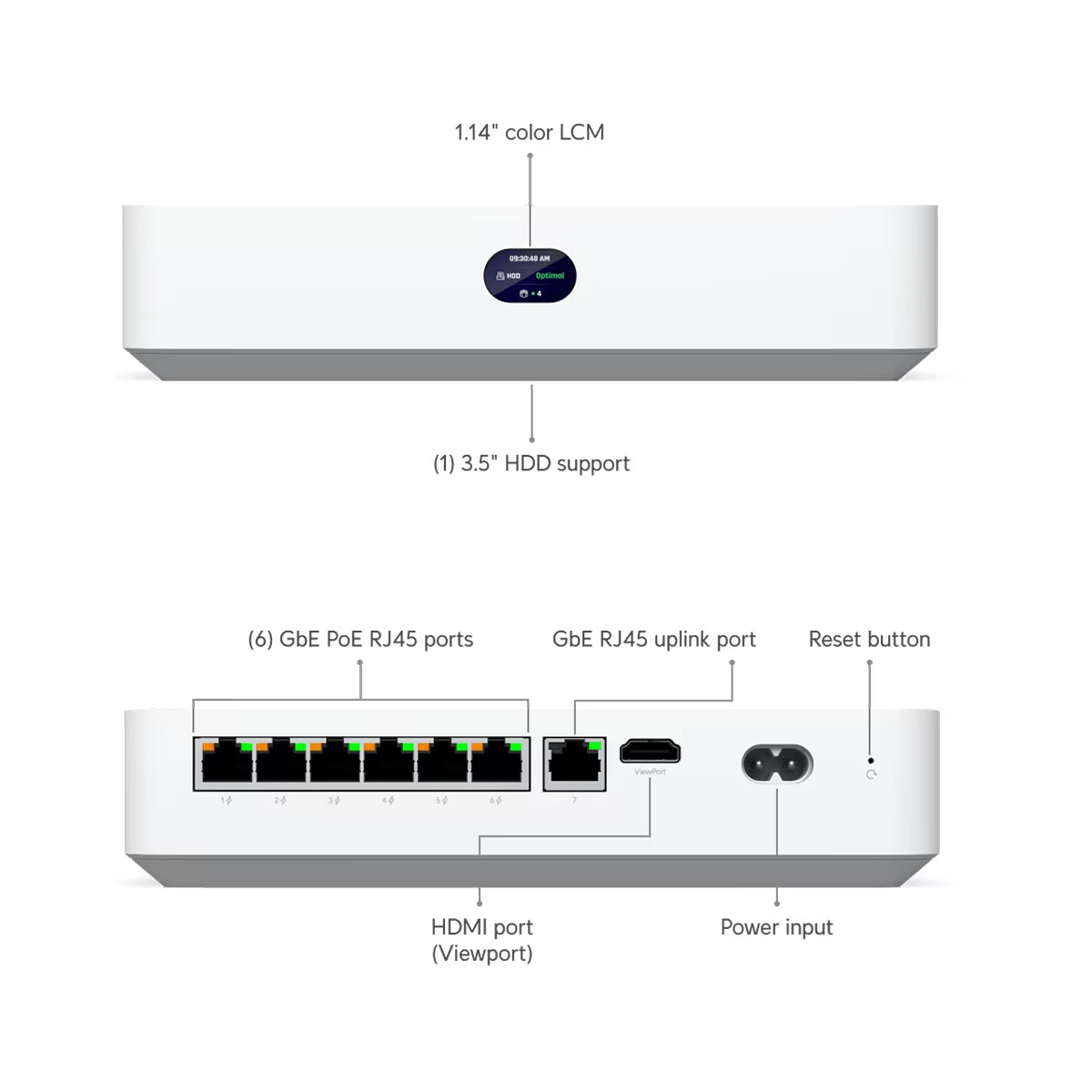

Key features
• Support for up to 15 HD or 6 4K cameras
• Storage supporting 1 × 3.5" HDD
• Port configuration: 7 GbE and 1 HDMI
• Quad-core ARM Cortex-A55 processor 1.7 GHz and 4 GB RAM
• Internal power supply and PoE support with a budget of 40 W
• Compact desktop design with flexible mounting
• Management through the UniFi Protect application
• Compliance with NDAA, certification FCC, IC, and CE

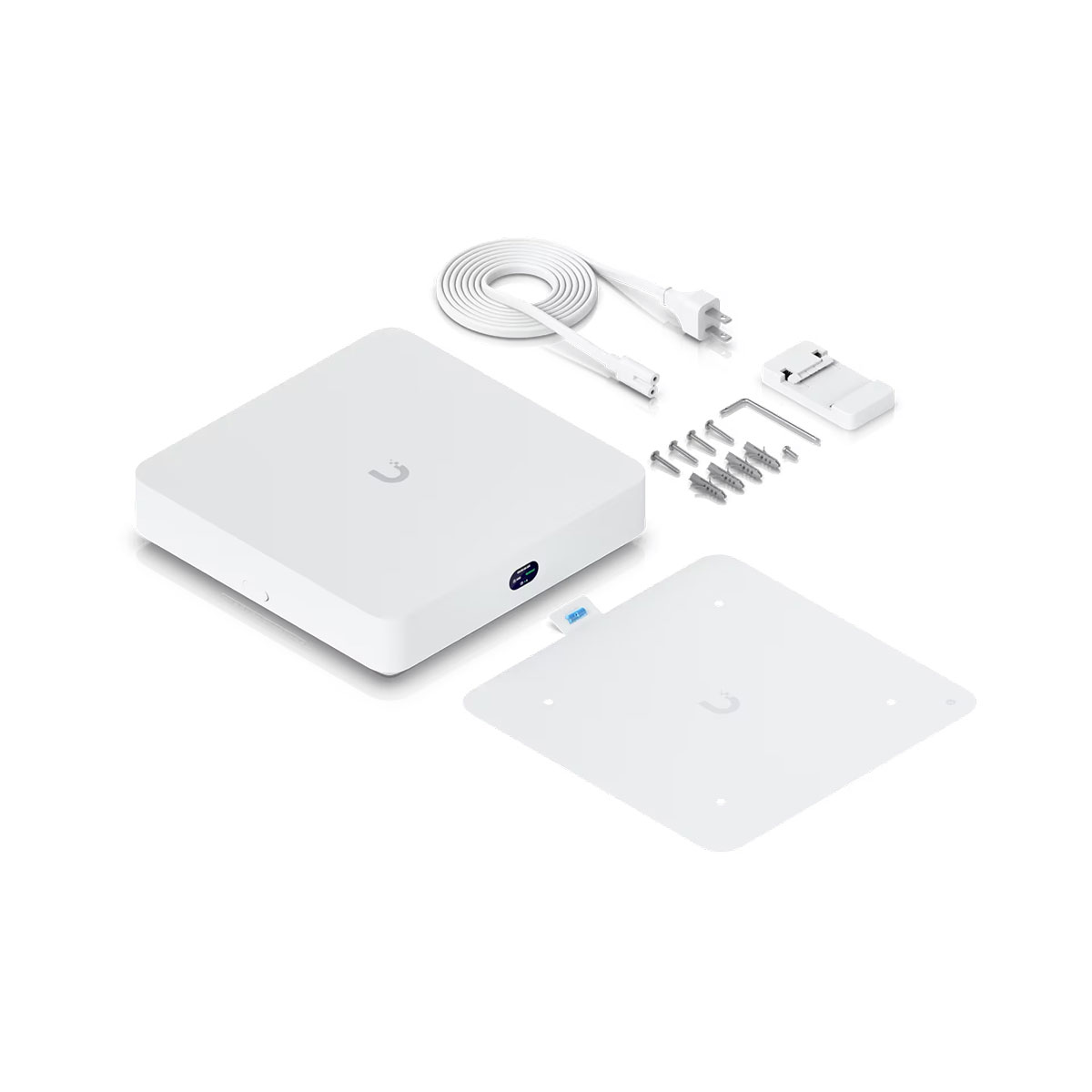

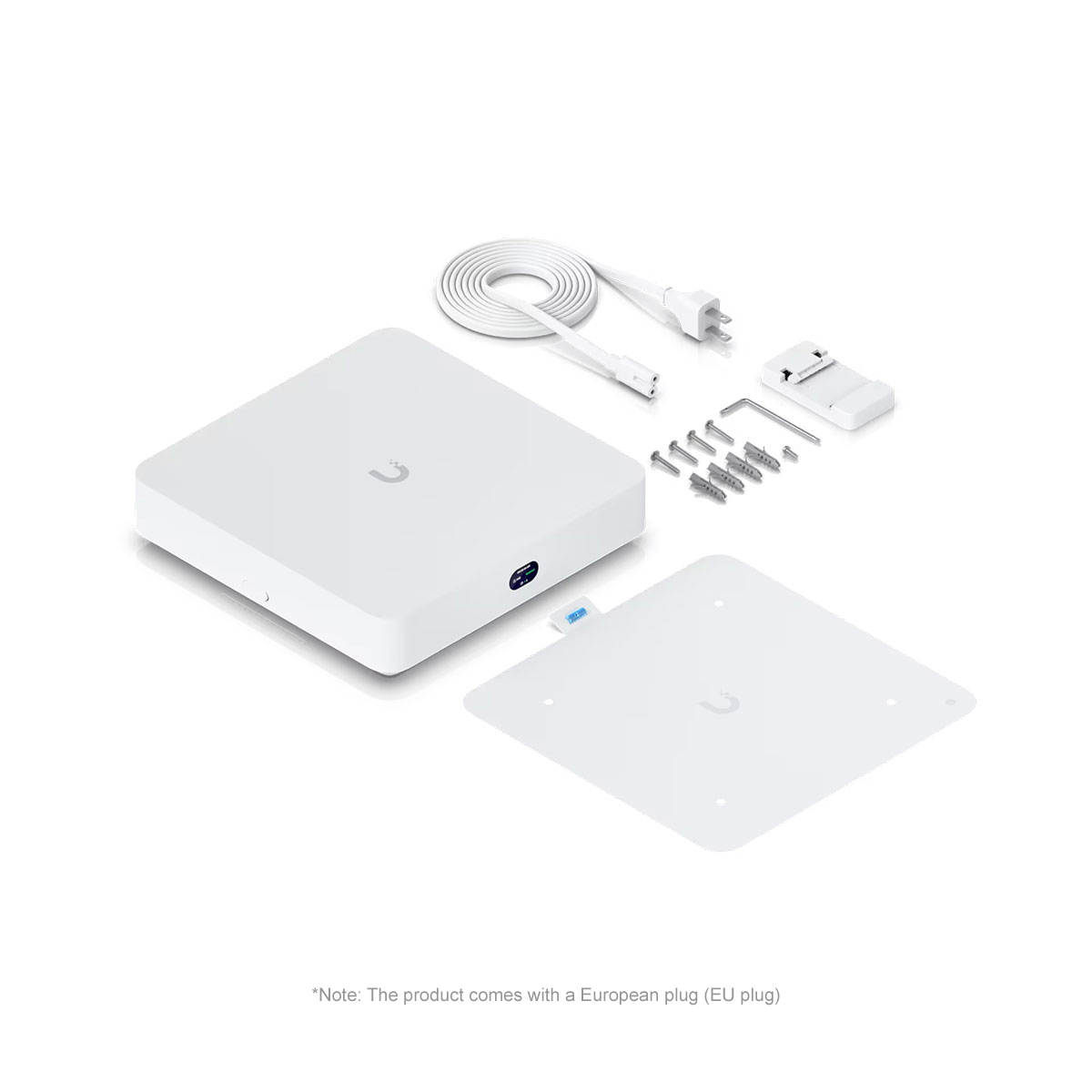

Package contents
• Device
• Power cord
• Mounting pad
• Mounting accessories
| Overview | |
| Dimensions | 220 x 220 x 47 mm |
| UniFi Application Suite | Protect Access |
| Managed Cameras | (15) HD (8) 2K (6) 4K |
| Managed Access Hubs | 50 |
| Storage Capacity | (1) 3.5" drive bay |
| Data Protection | Yes |
| Vantage Point | Yes |
| Networking Interface | (1) GbE RJ45 uplink port (6) GbE PoE RJ45 downlink ports (1) HDMI port (Viewport) |
| Form Factor | Compact Desktop |
| Mounting | Wall, Din rail mount (Included) |
| Door Access Support | Yes |
| Hardware | |
| Hard Drive Capacity | (1) 3.5" HDD support |
| Max. Power Budget for Drives | 11W |
| Max. Power Consumption | 9W |
| Power Method | Universal AC input, 100-240VAC, 1.5A Max, 50/60 Hz |
| Power Supply | AC/DC, Internal, 60W |
| PoE Budget | 40W |
| Max. PoE Wattage per Port by PSE | PoE 15.4W |
| Voltage Range PoE Mode | 44–57V |
| Processor | Quad-core ARM® Cortex®-A55 at 1.7 GHz |
| Memory | 4 GB |
| Management | Ethernet Bluetooth |
| Display | 1.14" screen |
| Weight | 1.04 kg |
| Enclosure Material | Polycarbonate |
| Mount Material |
Polycarbonate |
| LEDs | Ethernet PoE |
| Ambient Operating Temperature | 0 to 40° C |
| Ambient Operating Humidity | 5 to 95% noncondensing |
| NDAA Compliant | Yes |
| Certifications | FCC, IC, CE, Electrical Safety, SRRC, Anatel: 06781-25-08356 |
