Description

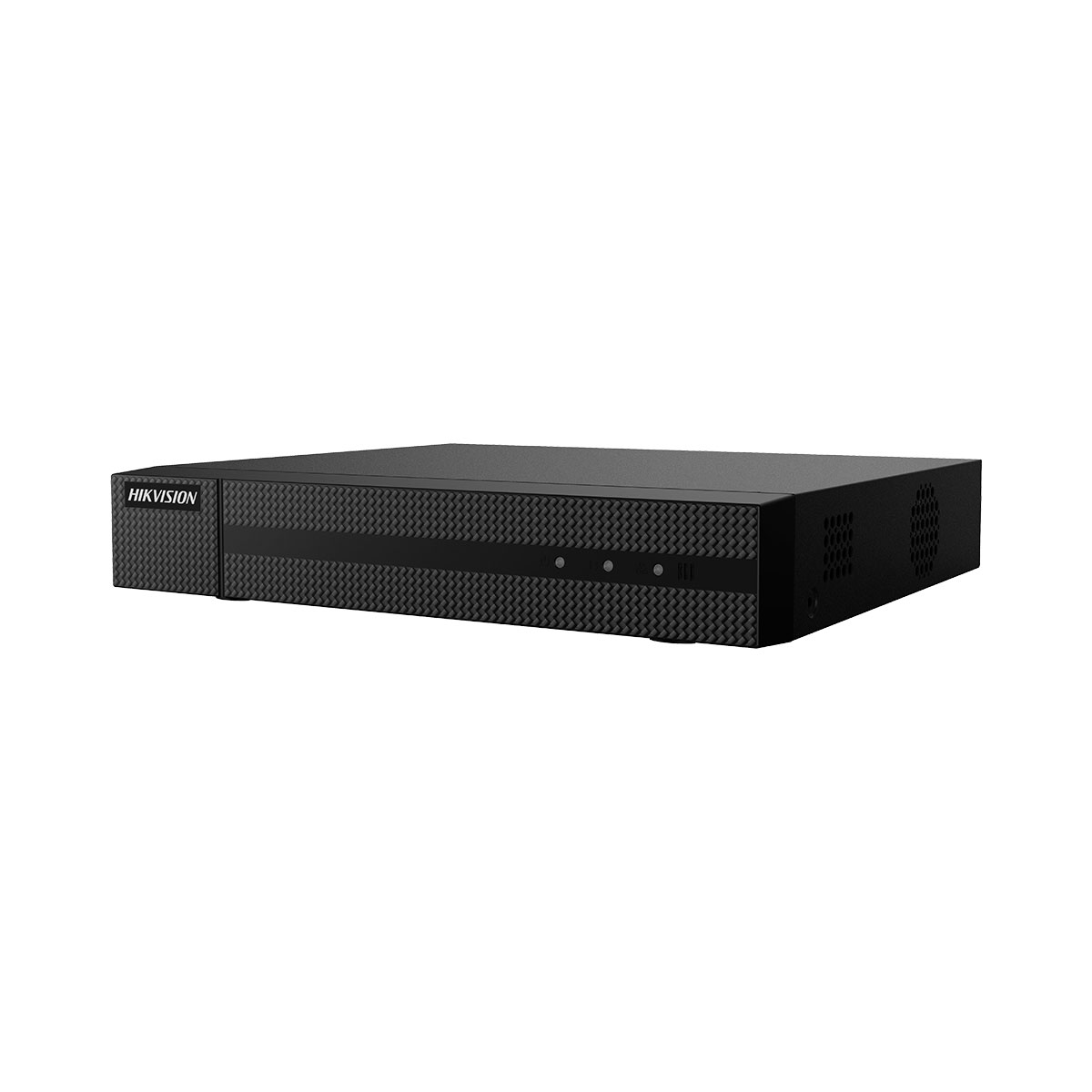

• Up to 16-ch IP camera inputs
• H.265+/H.265/H.264+/H.264 video formats
• Up to 1-ch@8 MP/3-ch@4 MP/6-ch@1080p decoding capacity
• Up to 160 Mbps incoming bandwidth
Characteristics
| Specifications | |
| Motion Detection 2.0 | |
| Human/Vehicle Analysis | 4-ch |
| Video and Audio | |
| IP Video Input | 16-ch |
| Incoming Bandwidth | 160 Mbps |
| Outgoing Bandwidth | 80 Mbps |
| HDMI Output | 1-ch, 4K (4096 x 2160)/30 Hz, 4K (3840 x 2160)/30 Hz, 2K (2560 x 1440)/60 Hz, 1920 x 1080/60 Hz, 1600 x 1200/60 Hz, 1280 x 1024/60 Hz, 1280 x 720/60 Hz |
| VGA Output | 1-ch, 1920 × 1080/60 Hz, 1280 × 1024/60 Hz, 1280 × 720/60 Hz |
| Video Output Mode | HDMI/VGA simultaneous output |
| Audio Output | 1-ch, RCA (Linear, 1 KΩ) |
| Two-Way Audio | 1-ch, RCA (2.0 Vp-p, 1kΩ) |
| Decoding | |
| Decoding Format | H.265+/H.265/H.264+/H.264 |
| Recording Resolution | 8 MP/6 MP/5 MP/4 MP/3 MP/1080p/UXGA/ 720p/VGA/4CIF/DCIF/2CIF/CIF/QCIF |
| Synchronous playback | 16-ch |
| Decoding Capability | 1-ch@8 MP (30 fps)/3-ch@4 MP (30 fps)/6-ch@1080p (30 fps) |
| Stream Type | Video, Video & Audio |
| Audio Compression | G.711ulaw/G.711alaw/G.722/G.726 |
| Network | |
| Remote Connection | 32 |
| Network Protocol | TCP/IP, DHCP, IPv4, IPv6, DNS, DDNS, NTP, RTSP, SADP, SMTP, SNMP, NFS, iSCSI, ISUP, UPnP™, HTTP, HTTPS |
| Network Interface | 1 RJ-45 10 /100/1000 Mbps self-adaptive Ethernet interface |
| Auxiliary Interface | |
| SATA | 1 SATA interface |
| Capacity | Up to 8 TB capacity for each disk |
| USB Interface | 2 × USB 2.0 |
| General | |
| Power Supply | 12 VDC, 1.5 A |
| Consumption | ≤ 10 W (without HDD) |
| Working Temperature | -10 °C to 55 °C |
| Working Humidity | 10% to 90% |
| Dimension (W × D × H) | 265 × 225 × 48 mm |
| Weight | ≤ 1 kg (without HDD) |
| Certification | |
| CE | EN 55032: 2015, EN 61000-3-2, EN 61000-3-3, EN 50130-4, EN 55035: 2017 |
| FCC | Part 15 Subpart B, ANSI C63.4-2014 |
