Ubiquiti UNVR-G2, Next-Generation UNVR with Integrated EDGE-AI Analytics
The powerful network video recorder in 1U design allows for efficient management of extensive camera and access systems. Thanks to support for up to 60 Full HD or 30 cameras at 4K resolution, it is suitable for businesses, office buildings, and industrial sites. The integrated artificial intelligence assists with advanced event analysis and enhances monitoring of the observed spaces.
High performance and flexible expandability
Four slots for 2.5" and 3.5" drives provide ample space for long-term archiving of recordings. 10Gb SFP+ interface along with a 2.5GbE port ensures fast data transfer even under high load. For maximum reliability, the device is equipped with redundant power supply, while the HDMI output with a resolution of up to 4K allows for convenient local display and management of the system without the need for additional hardware.
Key features
- 1U network video recorder (NVR)
- Integrated artificial intelligence for event analysis
- Support for up to 60 Full HD IP cameras (30 at 4K resolution)
- Maximum recording resolution of 8 Mpx
- (4) SATA slots for HDD/SSD
- (1) 2.5GbE network port
- (1) 10G SFP+ port
- Optical interface 1/10 Gb/s
- Redundant power supply
- Suitable for camera systems and access systems
- Centralized recording management

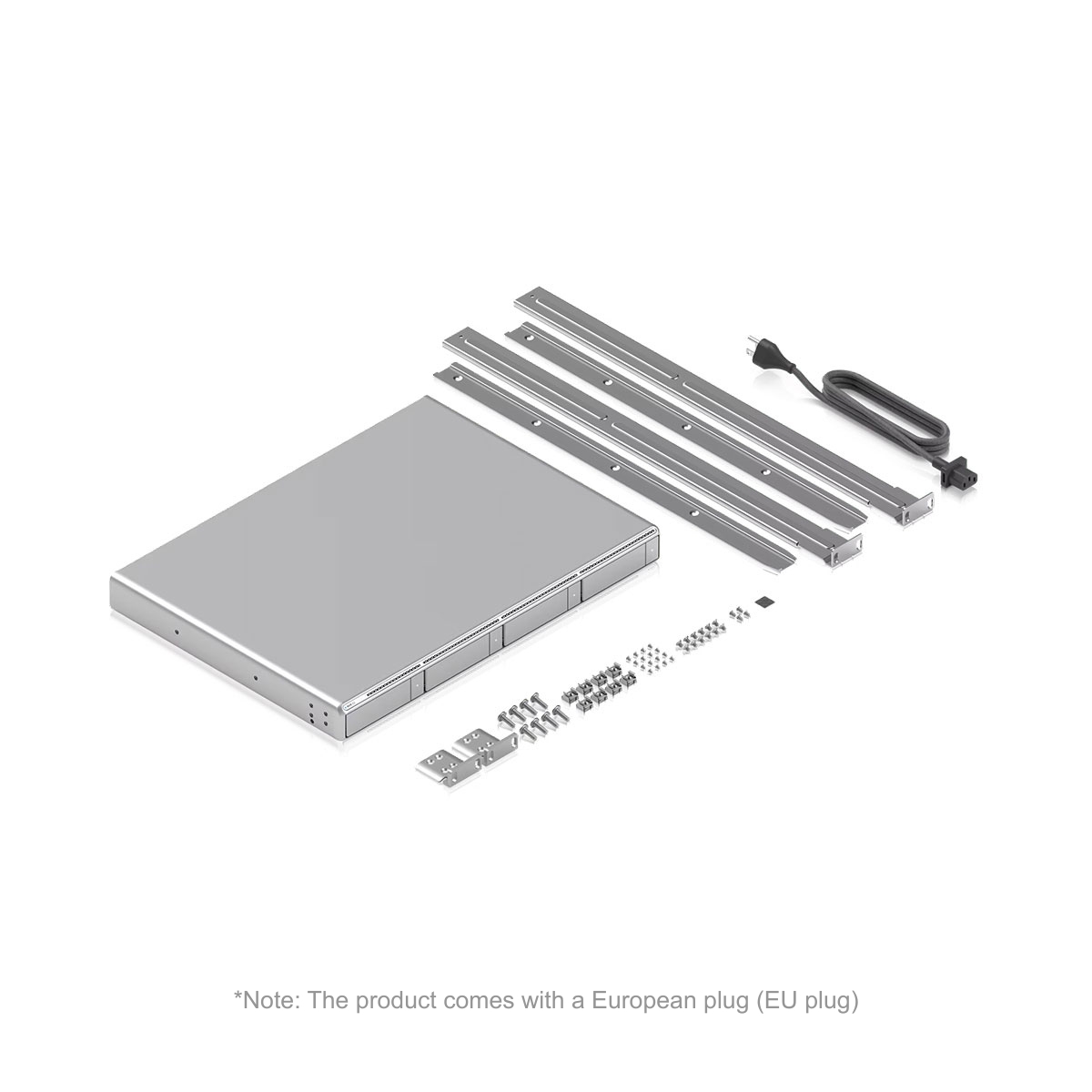

Package contents
- Device
- Power cable
- 19" rack mount brackets
- Rack kit
| Specifications | |

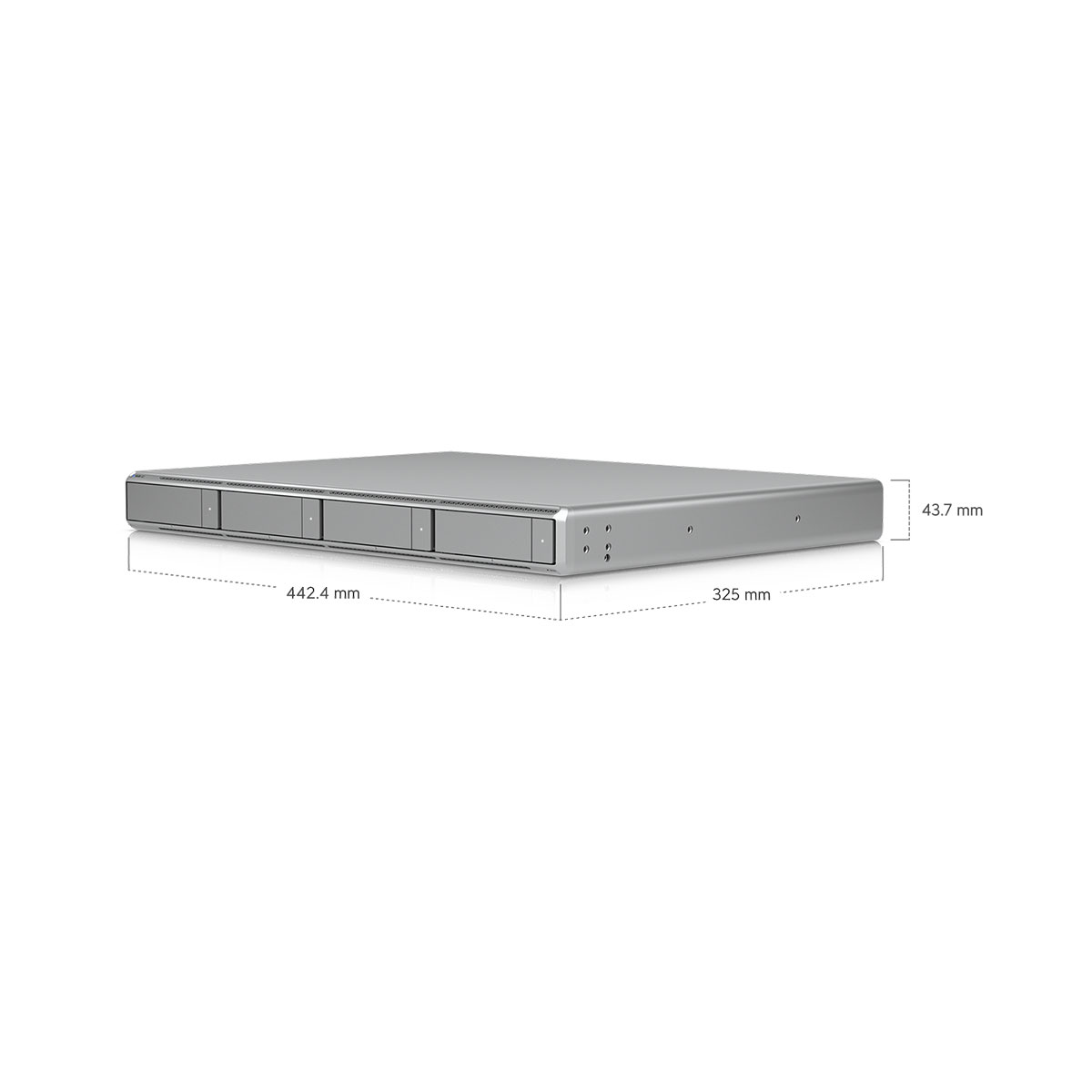

| Dimensions | 442.4 x 43.7 x 325 mm |
| Managed Cameras |
With built-in HDMI Viewport disabled: With built-in HDMI Viewport in use: |
| Max. Simultaneous Viewport Streams |
16 4K cameras |
| Managed Access Hubs *Please note. Reader Pro and Intercom quantities must be below Protect supported camera limits. |
150+ |
| Storage Capacity | (4) 2.5/3.5" drive bays |
| Data Protection | ✓ |

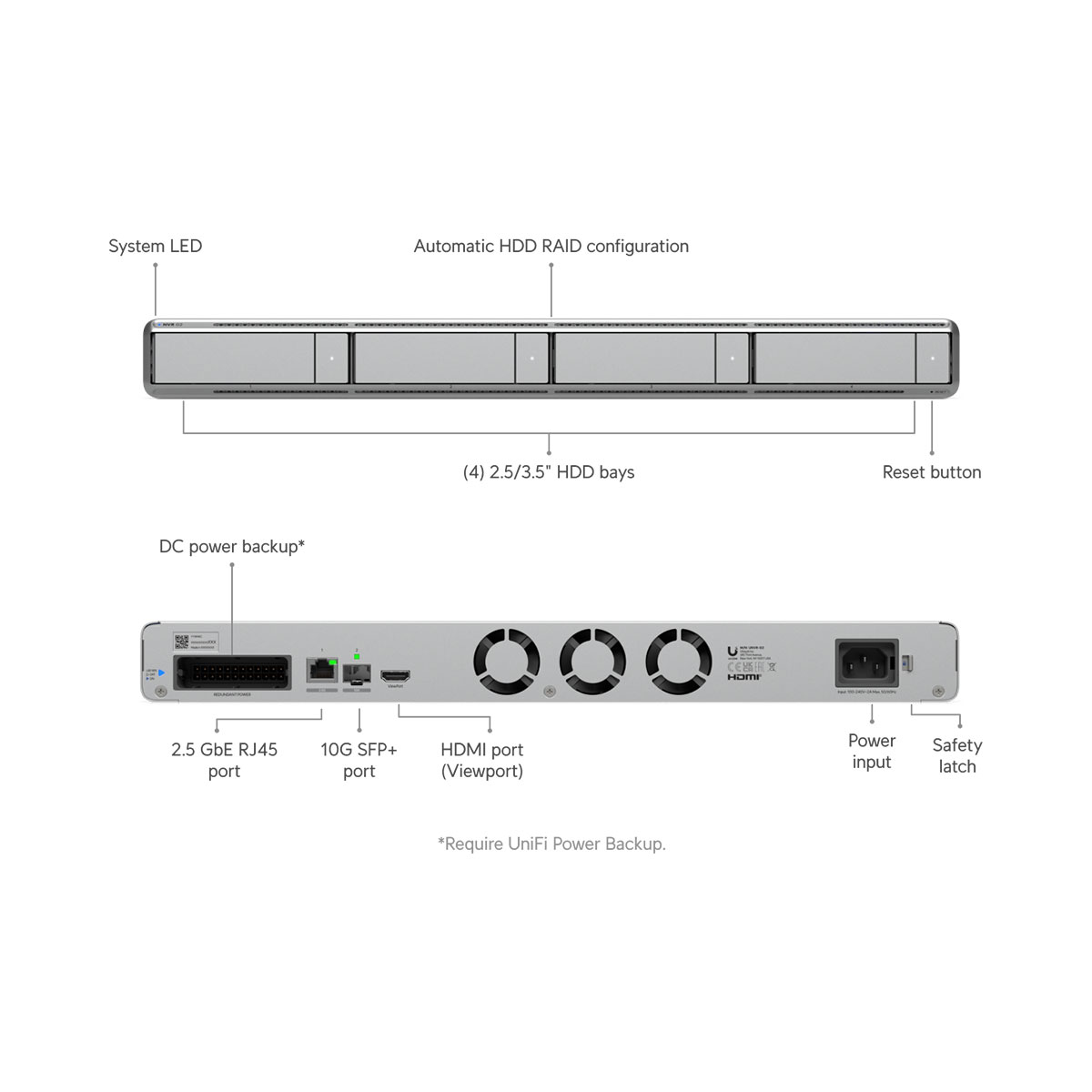

| Networking Interface | (1) 10G SFP+ port (1) 2.5 GbE RJ45 port |
| Power Redundancy | ✓ *UniFi Power Backup Ready |
| Form Factor | Rack Mount (1U) |
| Door Access Support | ✓ |
| Management Application | UniFi Protect UniFi Access UniFi Connect |
| Hardware | |
| Hard Drive Capacity | (4) 2.5/3.5" HDD / SSD support |
| Max. Power Budget for Drives | 75W |
| Max. Power Consumption | 100W |
| Power Method | (1) Universal AC input, 100–240V AC, 2A Max., 50/60 Hz (1) USP-RPS DC input, 11.5V DC |
| Power Supply | AC/DC, Internal PSU, 100W |
| Processor | Qualcomm® Kryo™ CPU built on Arm® Cortex® technology (4 nm) (1) Prime core (3.2 GHz) (4) Performance cores (2.8 GHz) (3) Efficiency cores (2.0 GHz) |
| Memory | 8 GB |
| Management | Ethernet Bluetooth |
| Weight | 6 kg |
| Enclosure Material | SGCC steel |
| Mount Material | SGCC steel |
| LEDs | Ethernet - ✓ SFP+ - ✓ HDD - ✓ RPS - ✓ System - ✓ |
| Ambient Operating Temperature | 0 to 40° C |
| Ambient Operating Humidity | 5 to 95% noncondensing |
| NDAA Compliant | ✓ |
| Certifications | CE, FCC, IC |
| Software | |
| Application Requirements |
UniFi Protect - Version 7.1.55 or later. UniFi Access - Version 4.2.16 or later. |
