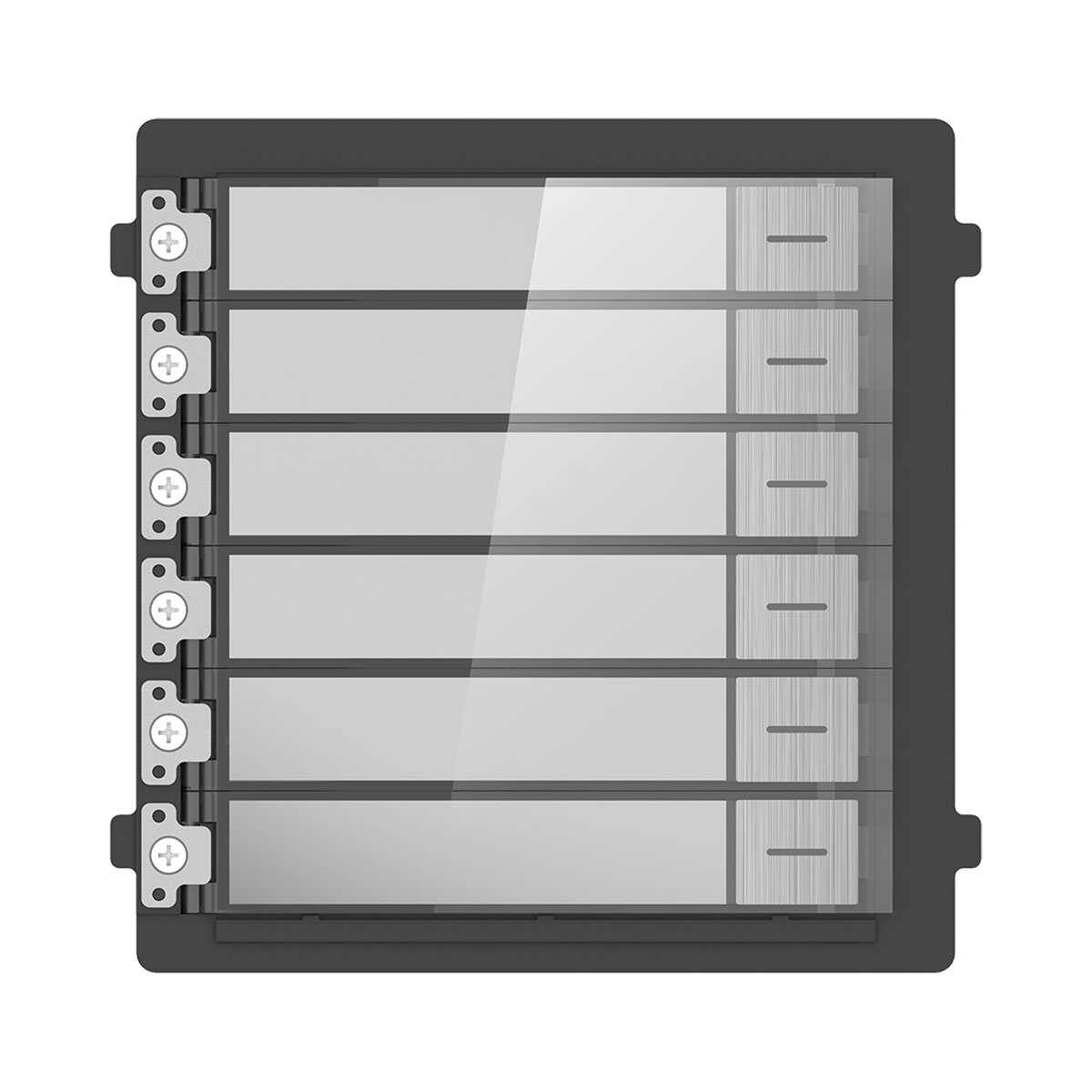

Hikvision DS-KD-KK/S KD8 Series Pro Modular Door Station
Product Code:
DS-KD-KK/S
Available
Hikvision DS-KD-KK/S KD8 Series Pro Modular Door Station
Shipping cost calculation:
Call for pricing
Description
Characteristics
Downloads
Description
Features:
• Nametag module of modular door station
• Six nametag buttons calling Design For easier calls
• IP65 protection level
• Backlight compensation behind the nametag buttons
• Easy to use and extend
• Stainless Steel high quality materia
Characteristics
| Specifications | |
| Operation system | Linux |
| Processor | Embedded high performance processor |
| Network parameters | |
| Communication protocol | TCP/IP, RTSP |
| Device interfaces | |
| Network interface | 1 RJ-45, 10/100 Mbps self-adaptive |
| General | |
| Button | 6 |
| Installation | Flush mounting, surface mounting |
| Weight | Net weight: 265 g Gross weight: 529 g |
| Protective level | IP65, IK07 |
| Working temperature | -40 °C to +55 °C |
| Working humidity | 10% to 95% |
| Dimensions | 98.5 mm × 100 mm × 34.2 mm |
| Power supply | 12 VDC (powered for other module) |
| Application environment | Outdoor |
| Power consumption | 0.8W |
