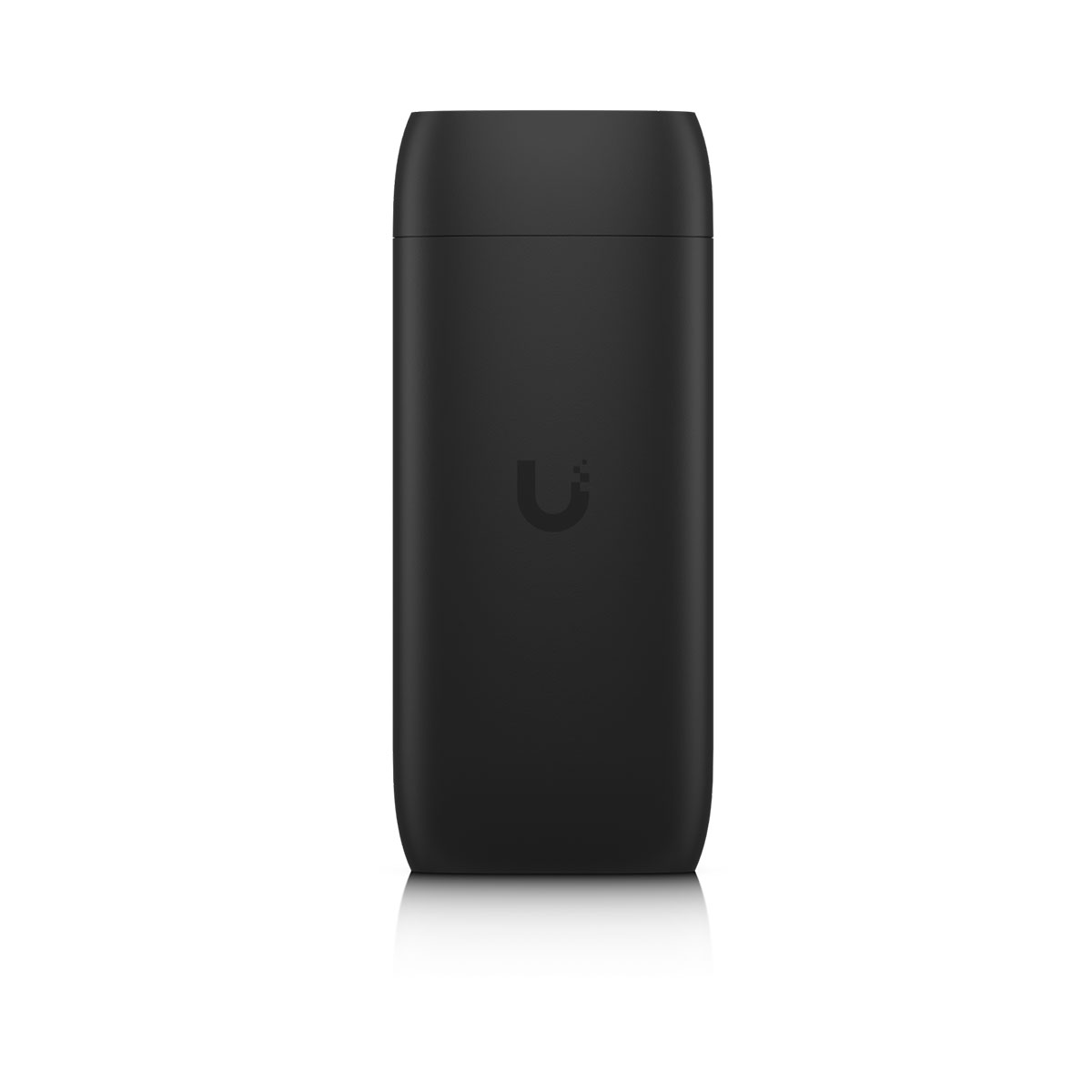

Ubiquiti UC-CAST-PRO, UniFi Display Cast Pro
Ubiquiti UC-CAST-PRO, UniFi Display Cast Pro
UC-Cast-Pro from Ubiquiti Networks turns any TV or monitor into a managed device for digital advertising. It easily connects to any device with HDMI and enables the presentation of multimedia playlists created in UniFi Connect. This device communicates via Gigabit LAN or Wi-Fi 6 and can be powered either via LAN with 802.3af PoE support or via USB-C (5 V / 3 A). With 32 GB of internal storage, it offers enough space to store media for playback. In addition, it includes a wall mount in the package, which ensures easy installation and use.
Key Features
• HDMI interface
• USB-C interface for keyboard and mouse or power supply
• Creating multimedia playlists in UniFi Connect
• Power supply via PoE or USB-C
• Gigabit LAN + Wi-Fi (802.11a/b/g/n/ac/ax)
• Integrated storage 32 GB + 8 GB RAM

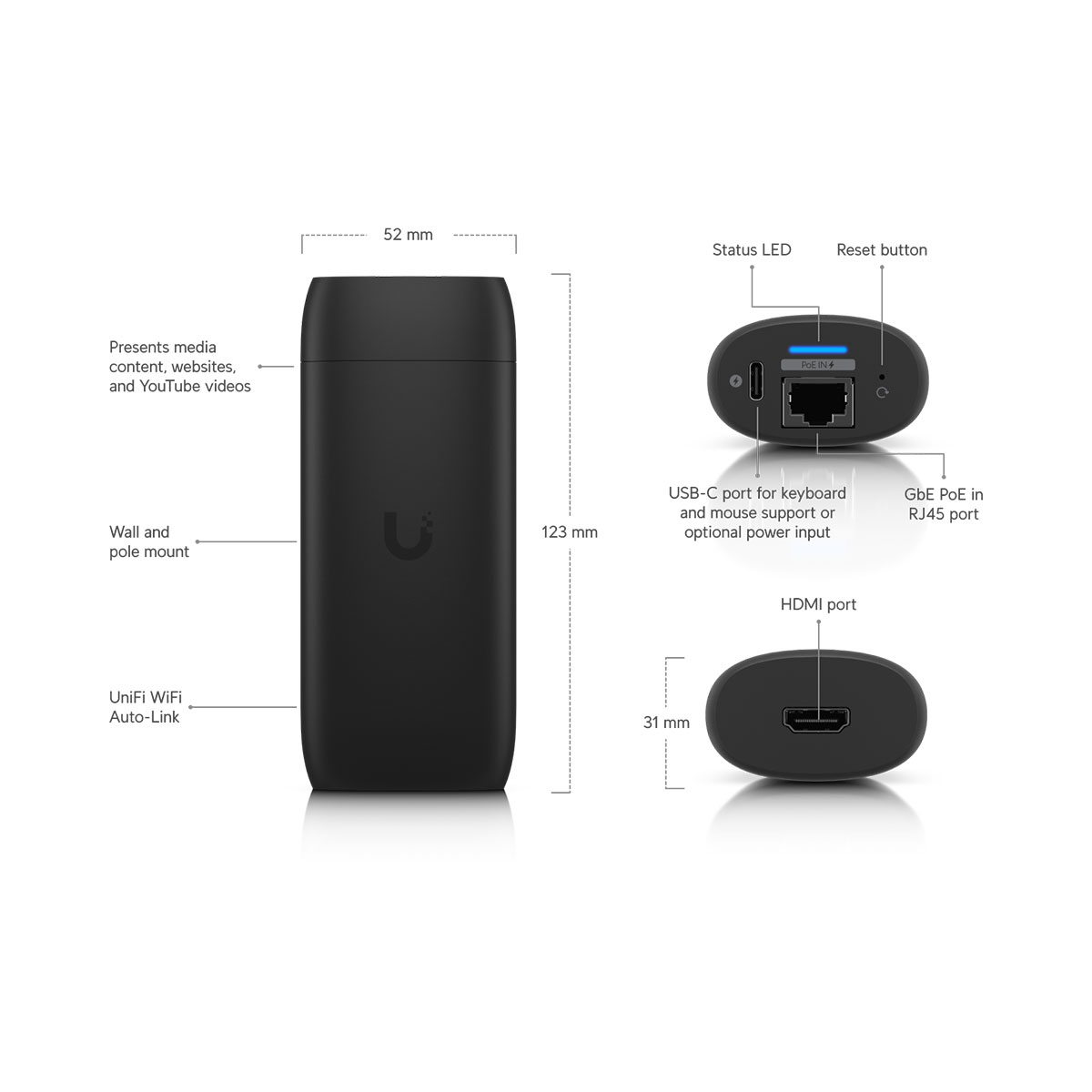

• Discreet dimensions - 52 x 31 x 123 mm
• Wall mounting

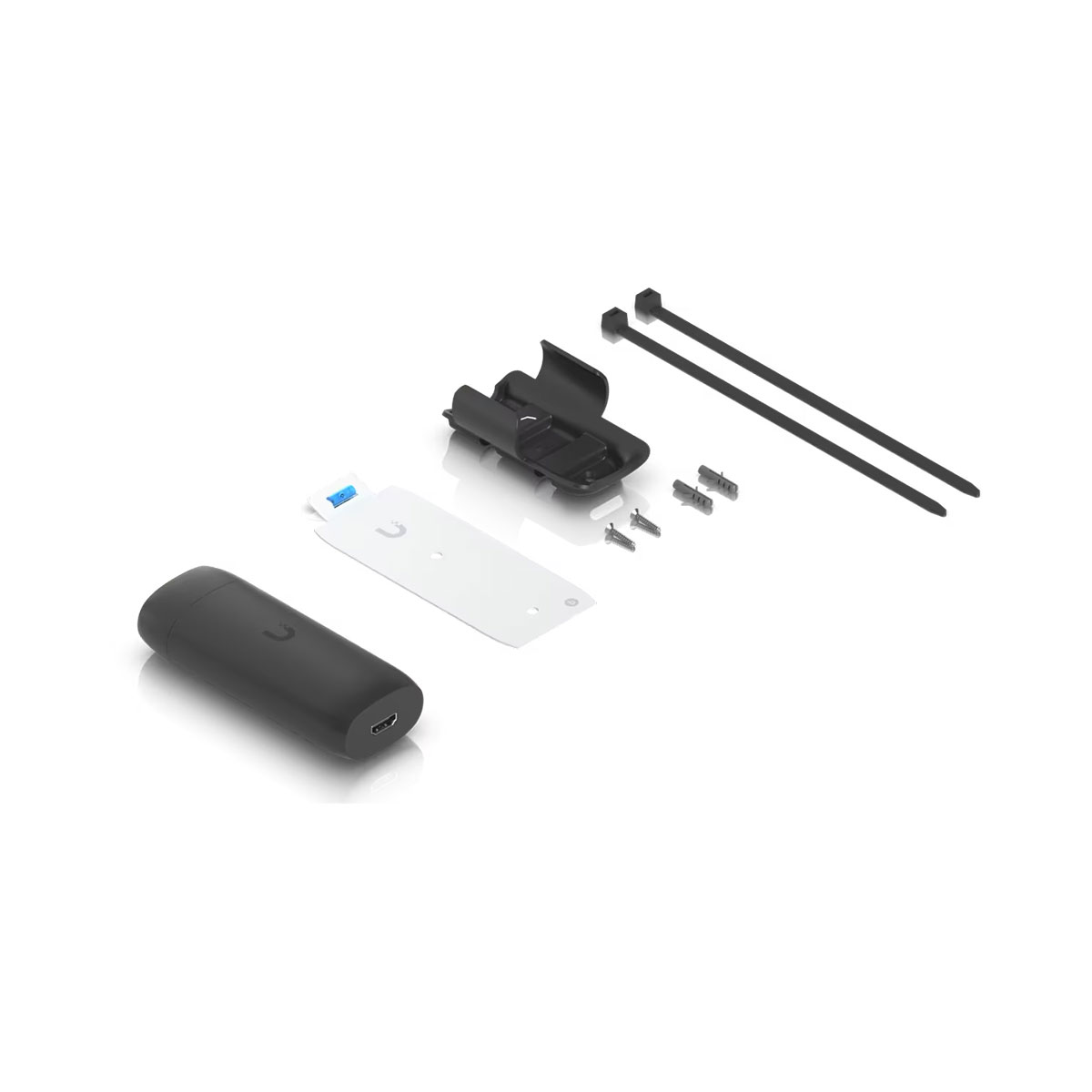

Package contents
• Device
• Wall mount
• Pegs + screws
• (2) duct tape
| Overview | |
| Dimensions | Without mount: 123 x 52 x 31 mm With mount: 125.1 x 56.3 x 40.8 mm |
| Display Output | (1) HDMI port |
| Video Content Support | 480p / 720p / 1080p / 4k |
| UniFi Application Suite | Connect |
| Mechanical | |
| Weight | Without mount: 240 g With mount: 260 g |
| Pole Mount Diameter | 25—50 mm |
| Hardware | |
| Processor | Octa-core CPU including (2) ARM® Cortex®-A78 and (6) ARM® Cortex®-A55 Integrated Mali-G57 GPU |
| Memory | Storage: 32 GB RAM: 8 GB |
| Power Method | (1) GbE RJ45 PoE 48V DC, 0.35A (1) USB Type-C 5V DC, 3A UL 60950-1/62368-1 LPS/PS2 PSU |
| Connectivity | WiFi 2.4G, BW 20/40 MHz WiFi 5G, BW 20/40/80 MHz |
| WiFi Standards | 802.11 a/b/g/n/ac/ax |
| LEDs | White/blue |
| Buttons | (1) Factory reset |
| Ambient Operating Temperature | 0 to 40° C |
| Ambient Operating Humidity | 20 to 90% noncondensing |
| Certifications | CE, FCC, IC, Wi-Fi CERTIFIED UL 62368-1, CSA C22.2 No. 62368-1, Anatel: 06981-25-08356 |
| NDAA Compliant | ✓ |
| Software | |
| Management Application | UniFi Connect Web Version 3.14.6 and later UniFi Connect iOS™ and Android™ Version 2.18.1 and later |
Caution! According to current Greek Legislation, of N.F.B.A.R. and the provisions of the P.D. 98/2017 the lawful use of this product in the frequency band 2400 – 2483,5 MHz, provides for a maximum transmit power of 100mW e.i.r.p.
At this maximum power the output power of the transmitter and the gain of the antenna are both taken into account. Responsible for spectrum surveillance is H.T.P.C.
This product is CE marked, P.D. 98/2017
This product is intended for indoor use.
Caution! According to current Greek Legislation, of N.F.B.A.R. and the provisions of the P.D. 98/2017 the lawful use of this product in the frequency band 5150 – 5250MHz and 5250 – 5350MHz, provides for a maximum transmit power of 200 mW e.i.r.p. and in the frequency band 5470 – 5725MHz, provides for a maximum transmit power of 1 W e.i.r.p.
At this maximum power the output power of the transmitter and the gain of the antenna are both taken into account. Responsible for spectrum surveillance is H.T.P.C.
This product is CE marked, P.D. 98/2017
This product is intended for indoor use.
