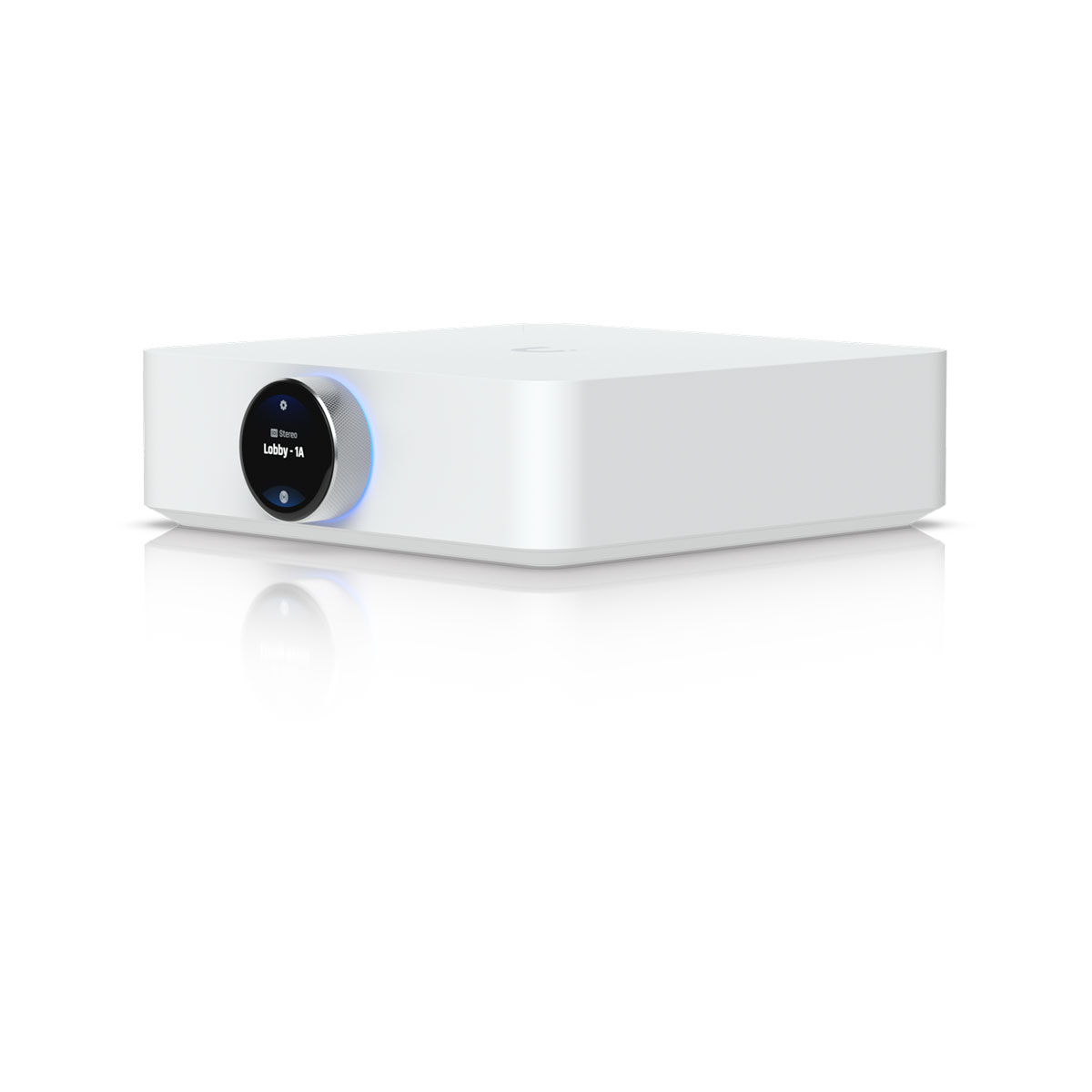

Ubiquiti UPL-AMP-W, Premium Speaker Amplifier, Poweramp White
Ubiquiti UPL-AMP-W, Premium Speaker Amplifier, Poweramp White
UniFi Play by Ubiquiti is a top-tier audio amplifier that will take your listening experience to a new level. With up to 260W of power, Dolby Atmos support, and the ability to connect up to 32 units, you can create a true cinema experience at home or in the office. It also features intuitive controls and both Wi-Fi and LAN connectivity. Thanks to its compact size and elegant design, it easily fits into any interior. If you're looking for a reliable and powerful amplifier, UniFi PowerAmp is the clear choice.
UniFi PowerAmp is designed for demanding listeners who want the highest sound quality and a wide range of connectivity options. It's ideal for home theaters, multi-room audio systems, and professional installations.
Key Features
• Up to 260W of power
• Supports Dolby Atmos, Dolby TrueHD, Multichannel PCM
• Connects up to 32 units
• Wireless streaming (AirPlay2, Spotify Connect)
• Intuitive controls
• Compact size and elegant design

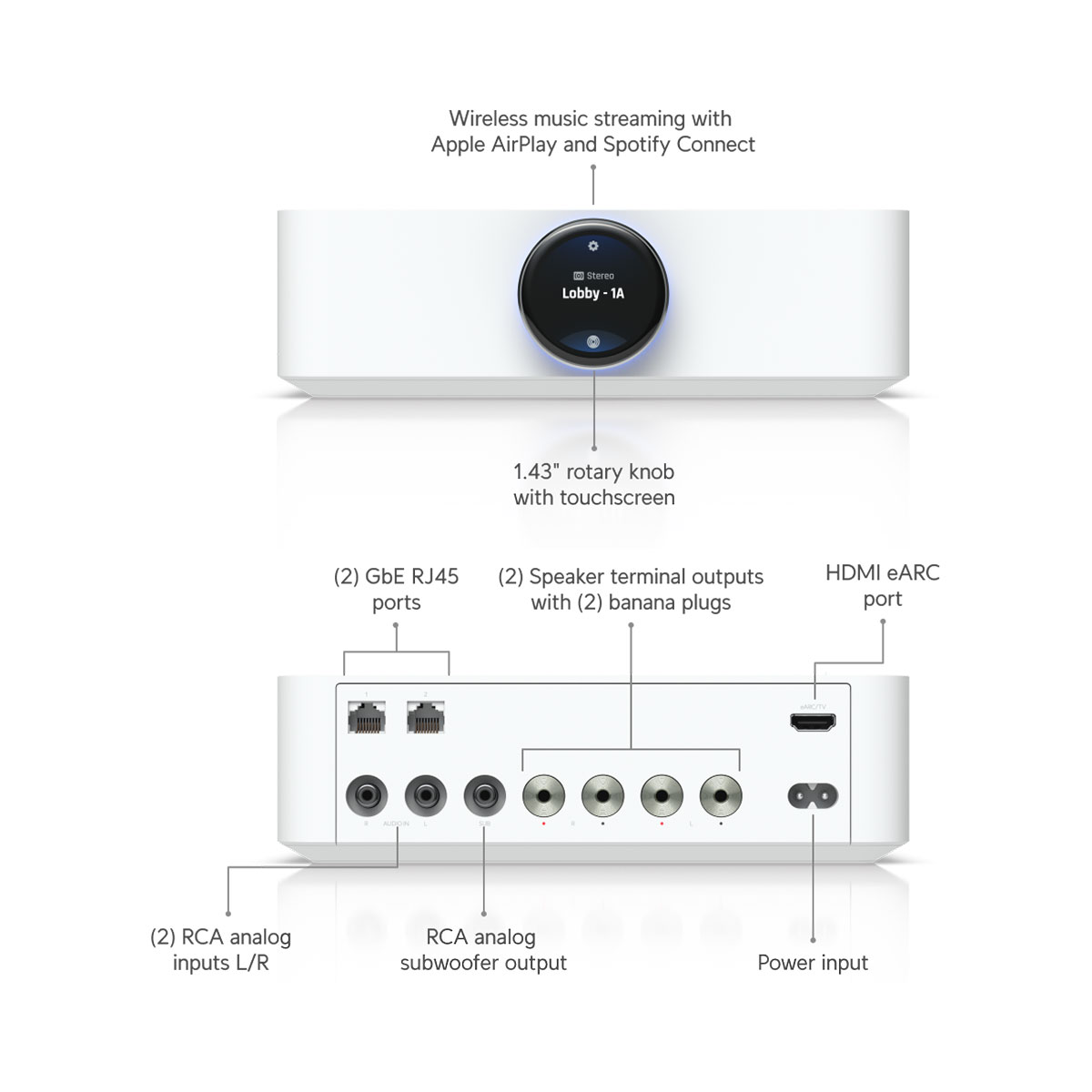

• Connectors: 2x Gigabit LAN, 1x HDMI eARC, 4x audio output (left and right), 2x RCA input (left and right), 1x RCA output for subwoofer

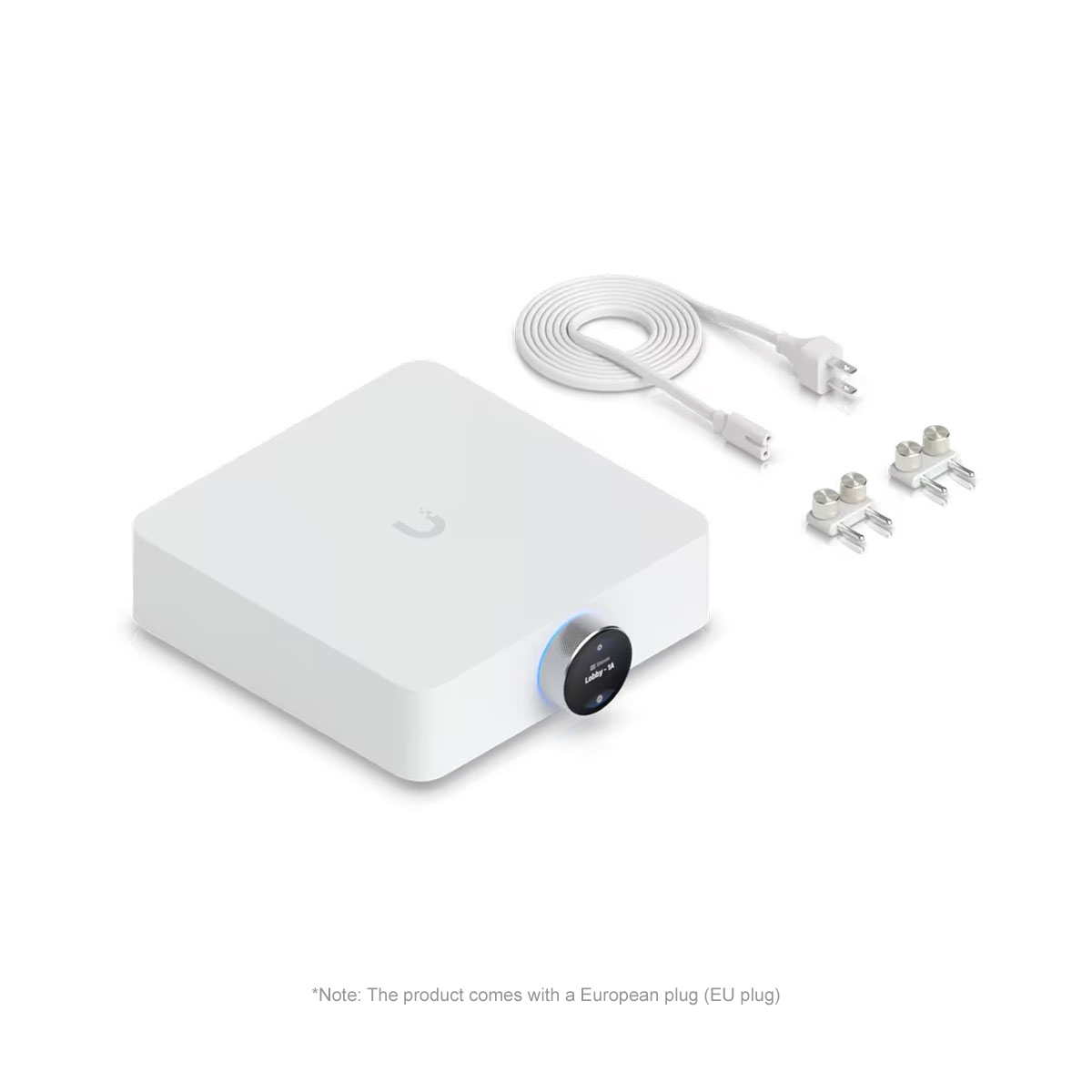

Package Contents
• Device
• Power cable
• (2) dual audio binding posts
| Mechanical | |
| Dimensions | With knob: 217 x 236.8 x 63.7 mm Without knob: 217 x 217 x 63.7 mm |
| Display Output | 2.4 kg |
| Enclosure Material | Chassis: Polycarbonate Knob: Aluminum |
| Mounting | Compact Desktop |
| Color | White |
| Audio | |
| Per Channel Power (Continuous power) | 130 W, 8 Ω, 1 kHz, < 0.05% THD+N, EIA (CEA-490-A) 260 W, 4 Ω, 1 kHz, < 0.09% THD+N, EIA (CEA-490-A) |
| Amplifier Class | Class D |
| Output | Mono / Stereo sound |
| Surround Format | Dolby Atmos, Dolby TrueHD, Dolby Atmos (True HD), Dolby Atmos (Dolby Digital Plus), Dolby Digital, Dolby Digital Plus, Stereo PCM, Multichannel PCM, Dolby Multichannel PCM |
| Zone | Up to 32 PowerAmps |
| Audio Input | (1) HDMI eARC input (2) RCA analog inputs L/R |
| Audio Output | (1) RCA analog subwoofer output (2) Speaker terminal outputs with (2) banana plugs |
| Streaming | AirPlay, Spotify Connect, Soundtrack Your Brand |
| Hardware | |
| Networking Interface | (2) GbE RJ45 ports |
| WiFi Standards | 802.11 a/b/g/n/ac |
| Connectivity | WiFi 5G, BW 20/40/80 MHz WiFi 2.4G, BW 20/40 MHz |
| Power Method | (1) Universal AC input, 100–240V AC, 2.5A Max., 50/60 Hz |
| Max. Power Consumption | 17W |
| LCM Display | 1.43" rotary knob with touchscreen |
| Button | (1) Factory reset |
| Ambient Operating Temperature | -5 to 40° C |
| Ambient Operating Humidity | 5 to 90% noncondensing |
| NDAA Compliant | ✓ |
| Certifications | FCC, IC, CE |
| Software | |
| Application Requirements | UniFi Play iOS™ and Android™: Version 1.0.0 and later |
Caution! According to current Greek Legislation, of N.F.B.A.R. and the provisions of the P.D. 98/2017 the lawful use of this product in the frequency band 2400 – 2483,5 MHz, provides for a maximum transmit power of 100mW e.i.r.p.
At this maximum power the output power of the transmitter and the gain of the antenna are both taken into account. Responsible for spectrum surveillance is H.T.P.C.
This product is CE marked, P.D. 98/2017
This product is intended for indoor use.
Caution! According to current Greek Legislation, of N.F.B.A.R. and the provisions of the P.D. 98/2017 the lawful use of this product in the frequency band 5150 – 5250MHz and 5250 – 5350MHz, provides for a maximum transmit power of 200 mW e.i.r.p. and in the frequency band 5470 – 5725MHz, provides for a maximum transmit power of 1 W e.i.r.p.
At this maximum power the output power of the transmitter and the gain of the antenna are both taken into account. Responsible for spectrum surveillance is H.T.P.C.
This product is CE marked, P.D. 98/2017
This product is intended for indoor use.
