Teltonika TAT140 4G Asset Tracker for Worldwide Coverage
Product Code:
TAT140
99,00 €
(Includes VAT 24%)
Sales price without VAT:
79,84 €
Available

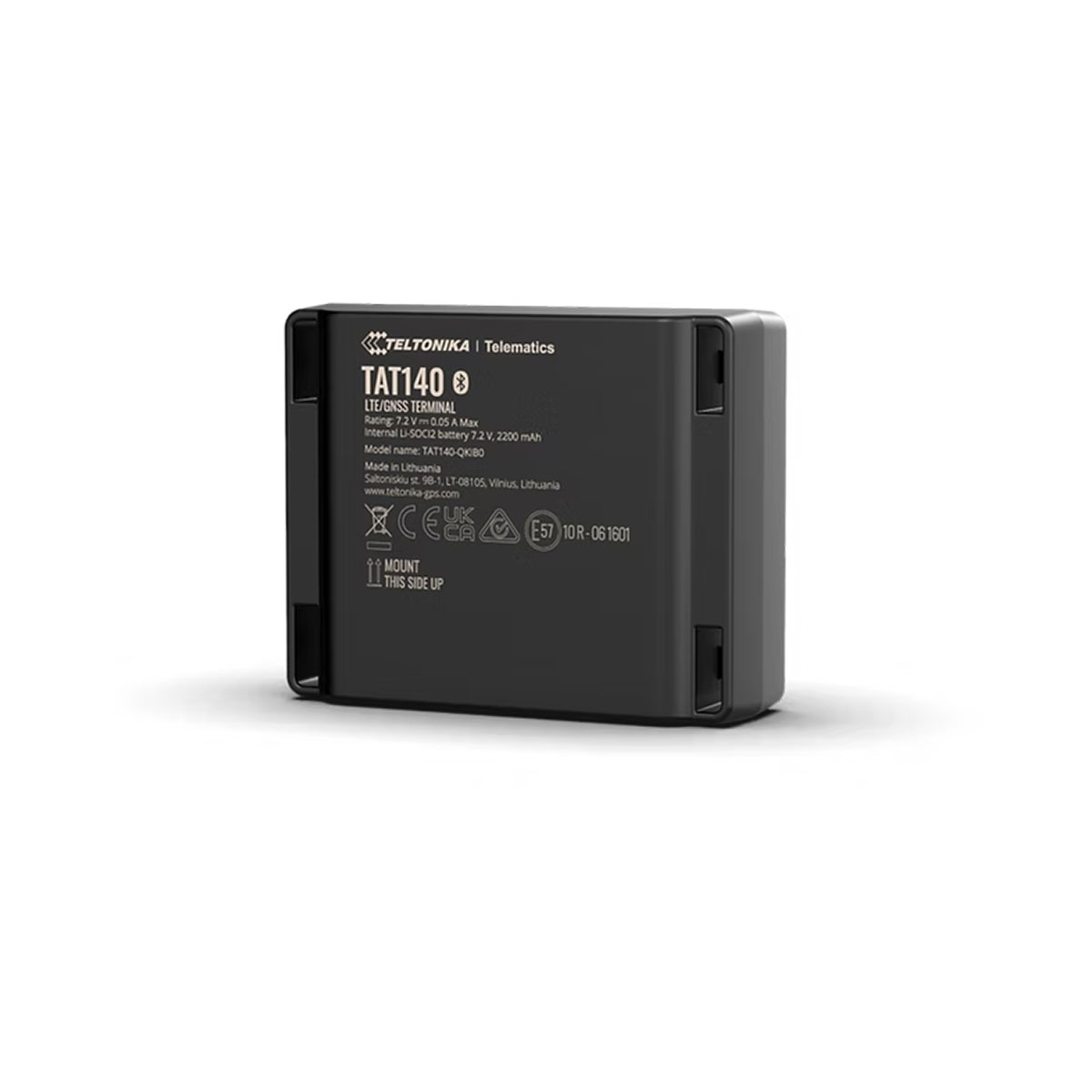

Teltonika TAT140 4G Asset Tracker for Worldwide Coverage
Shipping cost calculation:
Quantity
Description
Characteristics
Downloads
Description
Reliable tracking of construction equipment, tools, furniture and other non-powered assets can now be achieved with the newest Teltonika Telematics asset tracking solution. With the implementation of LTE you will be able to monitor your valuables almost everywhere in the world, since the technology boasts an extended network coverage and offers improved data transmission. The unit is perfect for assets that are on the move, as the device can operate in deep sleep mode and send reports or alarms in accordance with the pre-programmed configuration. Waterproof case and convenient mounting contribute to the crucial features ensuring smooth monitoring of your assets and even vehicles.
Characteristics
| Specifications | |
| Module | |
| Name | Quectel EG915U-EU with Teltonika TM2500 |
| Technology | LTE(CaT1)/2G(GSM/GPRS)/GNSS/BLUETOOTH® LE |
| GNSS | |
| GNSS | L1: GPS, GLONASS, GALILEO, BEIDOU, SBAS, QZSS, DGPS, AGPS |
| Receiver | 33 tracking channel 99 acquisition channel |
| Tracking sensitivity | -165 dBM |
| Position Accuracy | < 2.5 m CEP |
| Cellular | |
| 2G bands | GSM: B2/B3/B5/B8 |
| 4G bands | LTE FDD: B1/B3//B5/B7/B8/B20/B28 |
| Data transfer | LTE FDD (CAT 1): Max. 10 Mbps (DL) / Max. 5 Mbps (UL); GSM (GPRS): Max. 85.6 Kbps (DL) / Max. 85.6 Kbps (UL) |
| Tramsmit power | Class 4 for GSM850/900: 33±2dBM Class 1 for GSM1800/1900: 30±2dBM Class 3 for LTE-FDD: 23±2dBM |
| Data support | SMS (TEXT), Network protocols (TCP,UDP,TLS, EGTS,MQTT |
| Power | |
| Input voltage range | 2200mAh, 2S, extremely low self-discharge Li-SOCl2 batteries 7.2V, Non-rechargeable |
| BLUETOOTH® technology | |
| Specification | 4.0 + LE |
| Supported peripherals | EYE Sensors, EYE Beacons (recovery mode only), Universal Bluetooth® LE sensors support |
| Physical specification | |
| Dimensions(LxWxH) | 78 x 63 x 28 mm |
| Weight | 115 g (with 2 cells battery) |
| Operating environment | |
| Operating temperature (with battery) |
-35 °C to +75 °C |
| Storage temperature (with battery) |
-40 °C to +85 °C (Recommended max. 30°C) |
| Operating humidity | 5% to 95% non-condensing |
| Ingress Protection Rating | IP68 |
| Battery discharge temperature |
-60 °C to +85 °C |
| Battery storage temperature | Recommended max. 30°C |
| Interface |
|
| GNSS antenna | Internal High Gain |
| Cellular antenna | Internal GSM High Gain |
| USB | 2.0 Micro-USB |
| LED indication | 1 LED |
| SIM | Micro-SIM |
| Memory | 128MB internal flash memory |
| Features | |
| Sensors | Accelerometer |
| Scenarios | Accelerometer wake up, GNSS, Bluetooth® LE sensors support, Recovery mode, Periodic tracking on stop / on move, Scheduler with time zones, Backup tracking, Static navigation, Lost Bluetooth® LE sensors |
| Sleep modes | Single custom sleep mode |
| Configuration and firmware update | FOTA Web, Teltonika Configurator (USB) |
| SMS | Configuration, Events, Debug |
| GPRS commands | Configuration, Debug |
| Time Synchronization | GNSS, NITZ, NTP |
| Certification & Approvals | |
| Regulatory | CE/RED, E-Mark, RCM, UKCA |
