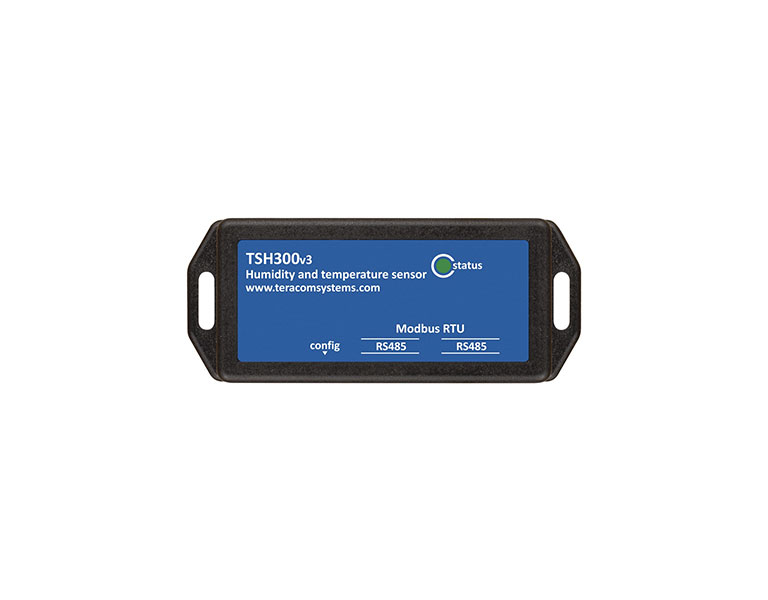

Teracom TSH300V3 Modbus RTU Humidity And Temperature Sensor

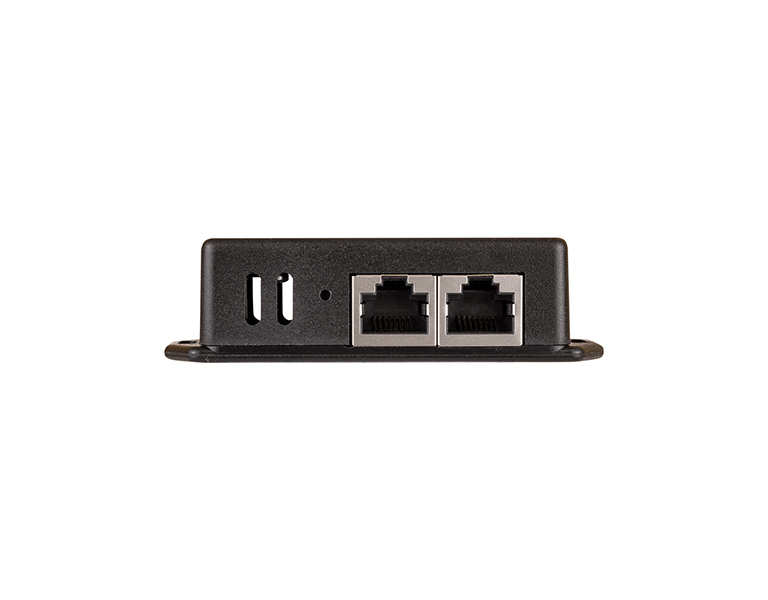

TSH300v3 (successor to the TSH300) is a combined temperature and humidity sensor featuring an RS485 interface with support for the Modbus RTU protocol. The device does not require an external power supply, as it is powered directly through the interface. The sensor incorporates advanced signal processing components and provides a fully calibrated digital output. It uses a capacitive element for measuring relative humidity, while temperature is monitored via a band-gap sensor. Both measurements are processed through a 12-bit analog-to-digital converter (ADC), ensuring superior signal accuracy and quality. The TSH300v3 is supplied with a 1-meter standard patch cable with RJ45 connectors.
Features:

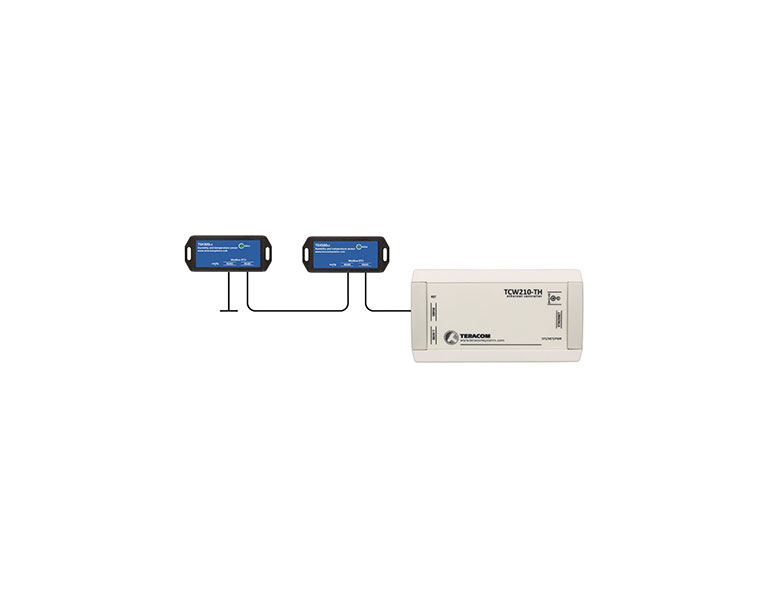

• RS-485 interface supporting up to 32 nodes
• LED indicator for communication status
• Configurable bitrate and other communication parameters
• Firmware updates via the RS-485 interface.
Applications:
• Humidity and temperature logging in server rooms and data centers
• Environmental quality monitoring and assessment
• Monitoring in building management systems (BMS)
• Humidity and temperature logging for mobile operator facilities, vineyards, greenhouses, and more.
| Specifications | |
| Operating Range | -20 to 60 °C |
| Storage relative humidity range | 10 to 90% (non-condensing) |
| Humidity measurements Accuracy (max) | ±5.0%RH (in 10 to 90 %RH range) |
| Humidity measurements Accuracy (min) | ±3.0%RH (in 20 to 80 %RH range) |
| Resolution | 0.1%RH |
| Dimensions | 85 x 35.1 x 23.5 mm |
| Temperature measurements Accuracy (min) | ±0.4°C (in -10 to +60°C range) |
| Temperature measurements Accuracy (max) | : ±0.6°C (in -20 to +60°C range) |
| Resolution | 0.1°C |
| Weight | 40g |
| Ingress protection | IP20 |
| Operating Temperature | -20 to 60°C |
| Operating relative humidity range | 10 to 90% (non-condensing) |
