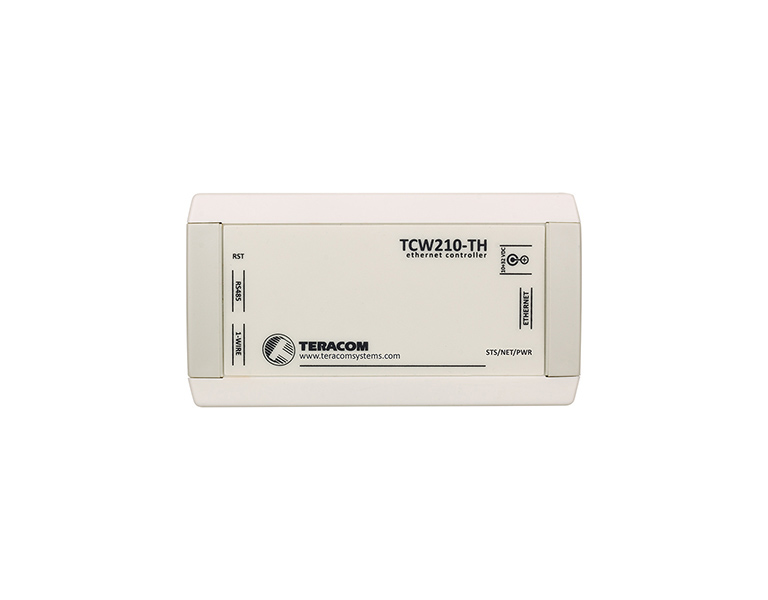

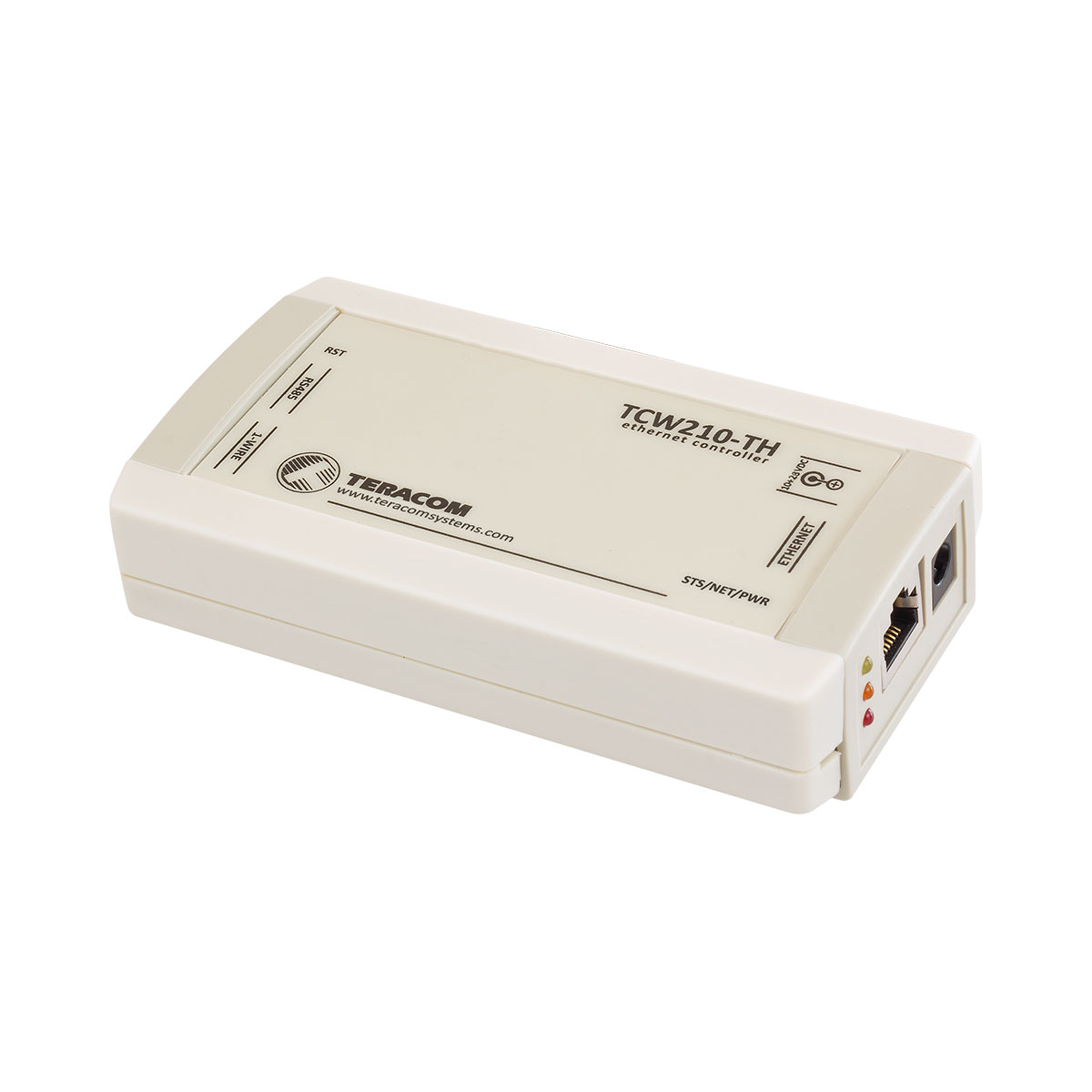

Teracom TCW210-TH - Temperature and humidity data logger

Product Code:
TCW210-TH
176,00 €
(Includes VAT 24%)
Sales price without VAT:
141,94 €
Available
Teracom TCW210-TH - Temperature and humidity data logger
Shipping cost calculation:
Quantity
Add to Cart
Manufacturer:
Warranty:
36 Months
Description
Downloads
Description

TCW210-TH is a temperature and humidity data logger with Ethernet interface for communication. Real-time data and charts of temperature, humidity and dew point can be monitored with a standard web browser (no special software is needed).
The device records all monitored parameters in internal FLASH memory. The records are made on the previous set time interval and/or on an alarm condition. The capacity of memory allows at least 36 days log with records on every 1 minute. The log file can be periodically uploaded on a dedicated server by HTTP Post.
The logger utilizes circular buffer in FLASH memory. When it is full, the new data overwrites the oldest one. In this manner FLASH memory stores full log all the time. There isn’t a command to clear the log for security reasons. A copy of the full log is always available for download.
TCW210-TH supports Teracom temperature or temperature-humidity sensors. All they can be connected either to 1-Wire interface or to more robust industrial RS485. The maximum number of sensors is 8 and it is irrelevant which of the two interfaces will be used.
TCW210-TH can initiate a connection (HTTP Post) to remote dedicated servers. The payload of this post is XML or JSON file. The files contain current values of monitoring parameters. HTTP post can be sent periodically or on previous set alarm conditions.
Standard protocols as SNMP, MODBUS/TCP, and HTTP/API are also available for M2M applications.

*Caution. Teracom's Ethernet Controllers do not include power supply in their packaging and in case of purchase, you will need to order a power supply separately if you do not already have a compatible power supply.

Features:
• Temperature and humidity data logger for up to 70000 records
• Temperature, humidity and dew point graphical presentation
• 1-Wire and RS-485 interfaces support
• Up to 8 Teracom sensors support (up to 24 parameters)
• MODBUS TCP/IP support
• SNMP v2 support with trap alerts to up to 5 recipients
• Secured email transfer with TLS 1.0, TLS 1.1 and TLS 1.2 support
• XML/JSON and HTTP API commands for client-server systems
• Dynamic DNS support for DynDNS, No-IP and DNS-O-Matic providers
• Network time protocol (NTP) support for time synchronization
• ThingSpeak service support
• Remote firmware update via standard browser

Applications:
• SOHO environmental monitoring
• Industrial processes data logging
• Data center environmental monitoring
• Temperature and humidity monitoring for food and beverage stores

Supported sensors:
• Precision temperature sensor with MODBUS RTU interface TST300
• 1-Wire temperature sensor TST103
• 1-Wire Pt100 transmitter TST200
• 1-Wire humidity and temperature sensor TSH206
• Humidity and temperature sensor with MODBS RTU interface TSH300
• Third party MODBS RTU humidity and temperature sensors
