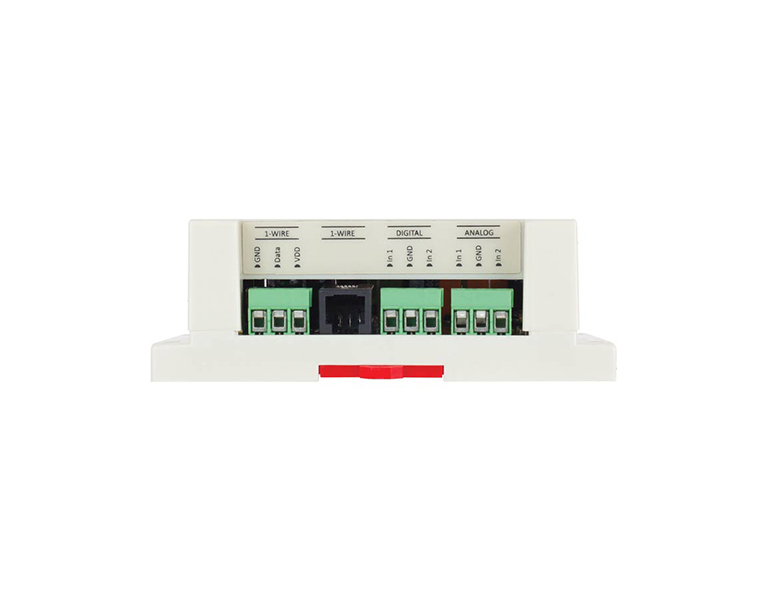

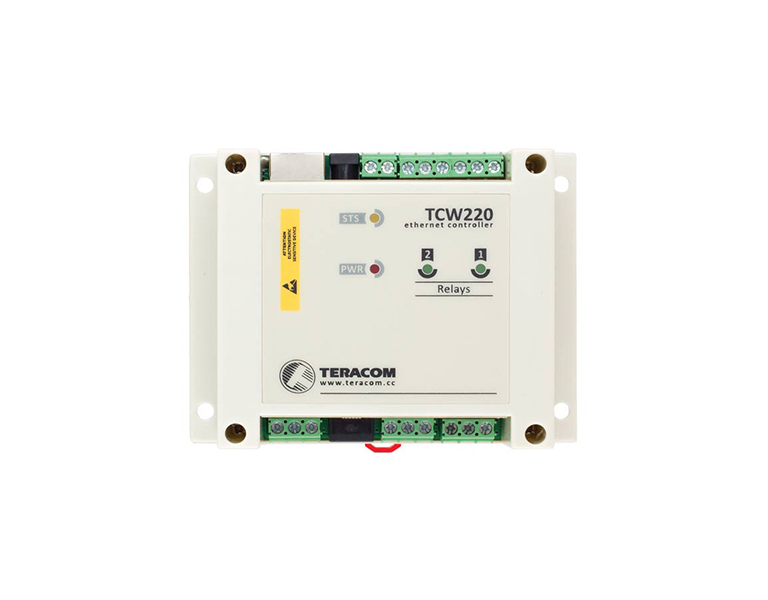

Teracom TCW220 - Ethernet data logger

Product Code:
TCW220
190,50 €
(Includes VAT 24%)
Sales price without VAT:
153,63 €
Available
Teracom TCW220 - Ethernet data logger
Shipping cost calculation:
Quantity
Add to Cart
Manufacturer:
Warranty:
36 Months
Description
Downloads
Description

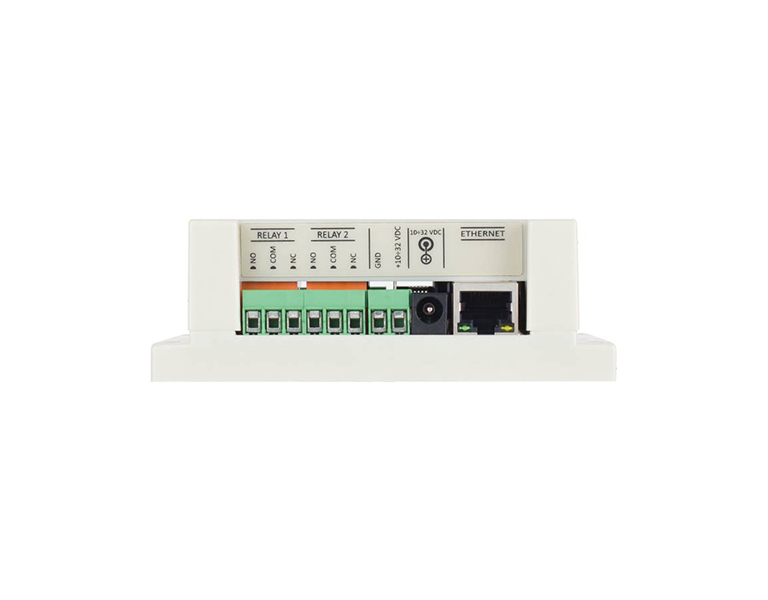

TCW220 is an Ethernet data logger for general data acquisition applications. It has 2 analog inputs, with 10-bit resolution and 2 discrete inputs. It utilizes a 1-Wire interface for up to 8 Teracom 1-Wire sensors – carbon dioxide, 0/20mA, AC/DC current, temperature, humidity etc.) The Ethernet data logger also has 2 relays with normally open and normally close contacts.
All monitored parameters can be logged on a previous set time interval and/or on alarm conditions. The memory is large enough for at least 36 days with records on every 1 minute. The log file can be periodically uploaded on a dedicated server with HTTP Post.

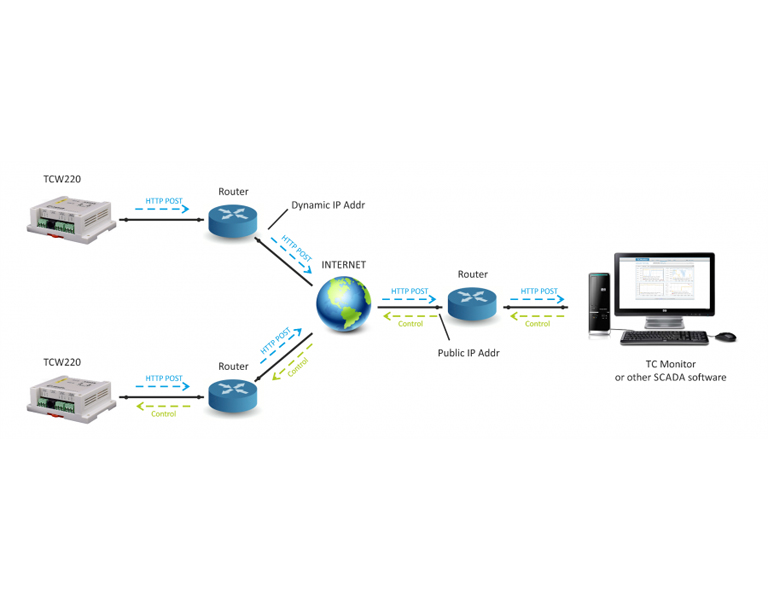

XML/JSON file, with all monitored parameters, can periodically uploaded on dedicated server by HTTP Post. Like answer server can return commands for relay’s control. This is a way for building SCADA system.
The relays can be activated either remotely (WEB, SNMP, HTTP, MODBUS TCP/IP, etc.) or locally – from a status of monitored parameters. For every parameter email and SNMP trap for up to 5 recipients can be sent. Alarm alert also can be sent by HTTP Post with XML/JSON status files.

*Caution. Teracom's Ethernet Controllers do not include power supply in their packaging and in case of purchase, you will need to order a power supply separately if you do not already have a compatible power supply.

Features:
• Stand-alone Ethernet data logger for up to 70000 records
• Password protected web based configuration and control
• 2 digital “dry contact” inputs
• 2 analog inputs with 0 to 10VDC range, with 10-bit resolution
• Multiplier and offset for analog inputs
• 2 relays with NO and NC contacts
• 1-Wire interface for up to 8 Teracom sensors
• SNMP v.2 support
• SNMP traps to up to 5 recipients like alarm alert
• MODBUS TCP/IP support
• TLS 1.0, TLS 1.1 and TLS 1.2 support
• e-mails to up to 5 recipients like alarm alert
• XML/JSON status files
• HTTP API commands
• NTP support
• Dynamic DNS support
• Periodical HTTP Post for client-server systems
• Remote firmware update

Applications:
• Stand alone or system ethernet data logger
• Heater or cooler control
• Small to large SCADA systems
• Ethernet data logger for storage facilities
• Industrial process automation
• Industrial environmental monitoring
• Mushroom and winery environmental monitoring and control

Supported sensors:
• 1-Wire temperature sensor TST100
• Temperature sensor with 1-Wire interface TST103
• 1-Wire humidity and temperature sensor TSH202
• Humidity and temperature sensor with 1-Wire interface TSH206

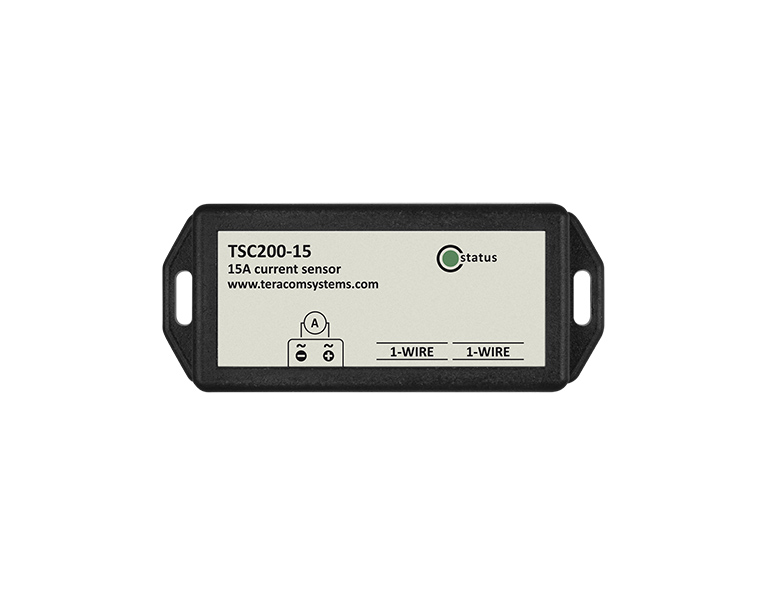

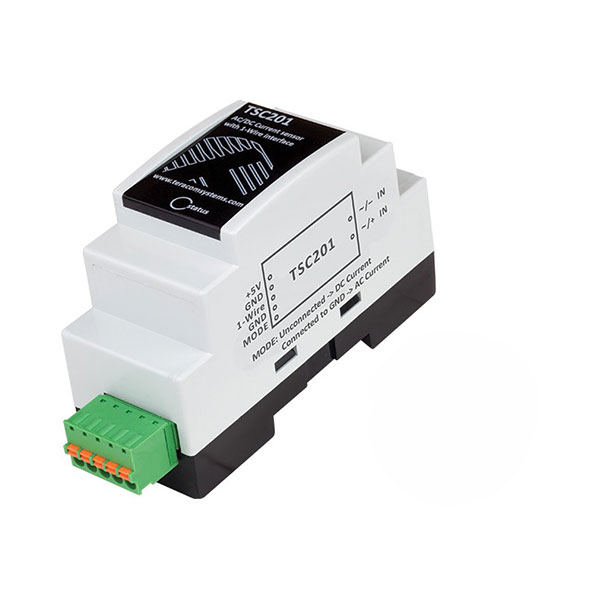

• 1-Wire galvanic isolated AC/DC current sensor TSC200
• Galvanic isolated voltage sensor with 1-Wire interface TSV200

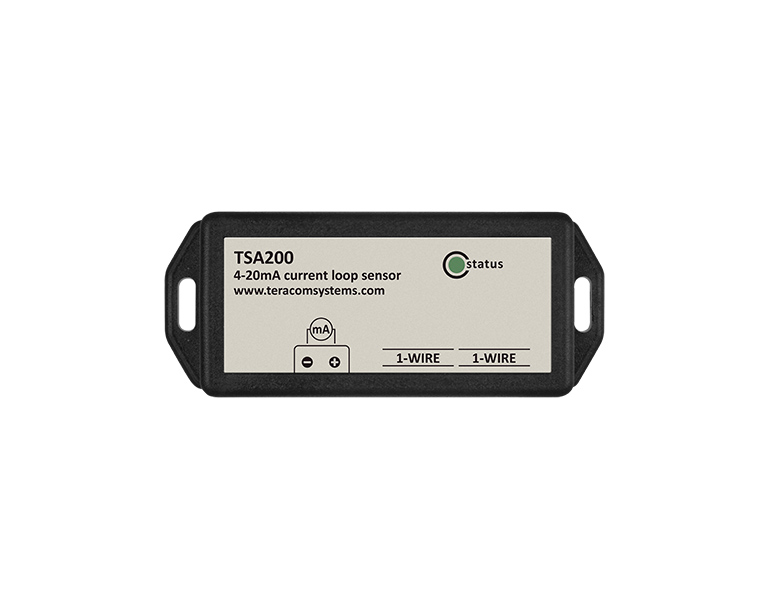

• 1-Wire galvanic isolated 0/20mA current loop transmitter TSA200
• 1-Wire carbon dioxide sensor TSG200
