Netio PowerPDU 4PS, IEC-320 C13 Switched Power Distribution Unit

Product Code:
558060
320,00 €
(Includes VAT 24%)
Sales price without VAT:
258,06 €
Available
Netio PowerPDU 4PS, IEC-320 C13 Switched Power Distribution Unit
Shipping cost calculation:
Quantity
Add to Cart
Category:
Manufacturer:
Warranty:
24 Months
Description
Characteristics
Downloads
Description

PowerPDU 4PS is a smart PDU (Power Distribution Unit) with four power outlets (4x IEC-320 C13). Each output can be switched off and on over the web, the NETIO cloud service, or with a mobile app. Open API enables integration into 3rd party systems using a wide range of protocols (JSON, Modbus/TCP, SNMP, MQTT-flex, Telnet and more).
Each of the four outputs can be independently controlled from the product web interface (switched off/on or power-cycled). To switch the outputs on in a sequence, a power-up delay interval can be configured for each output.

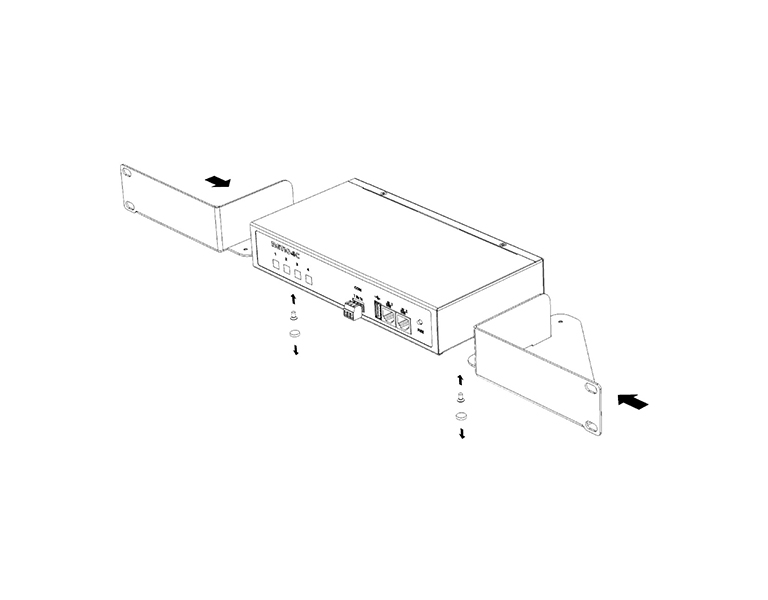

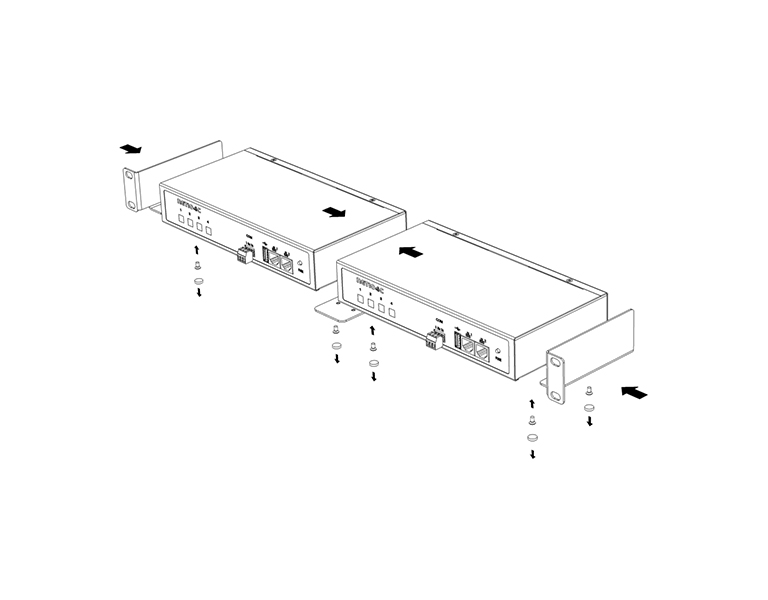

NETIO PowerPDU 4PS can be mounted in 19” rack cabinets – horizontally, vertically, or as a 1U device.
The NETIO Mobile2 app controls each output individually over LAN (local network) or NETIO Cloud.
NETIO Cloud is a SSL-secured service for controlling the outputs from anywhere (Web or Cloud API).
Open API allows controlling the outputs over the network using various protocols (JSON, Modbus/TCP, SNMP, MQTT-flex, Telnet and more).
AV drivers make it easy to connect NETIO sockets to professional Audio/Video control systems such as Neets, Crestron, Control4 and more.

Features:
• LAN (Ethernet)
• 4x IEC-320 C13 / 10A output
• ZVS – Zero Voltage Switching
• Open API (7 protocols)
• Can be controlled with a mobile app
• Supports NETIO Cloud



Characteristics
Specifications

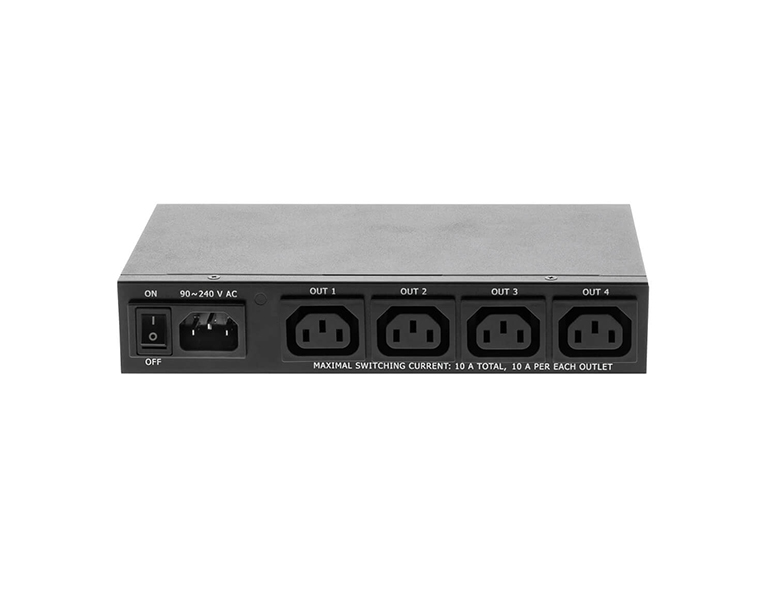

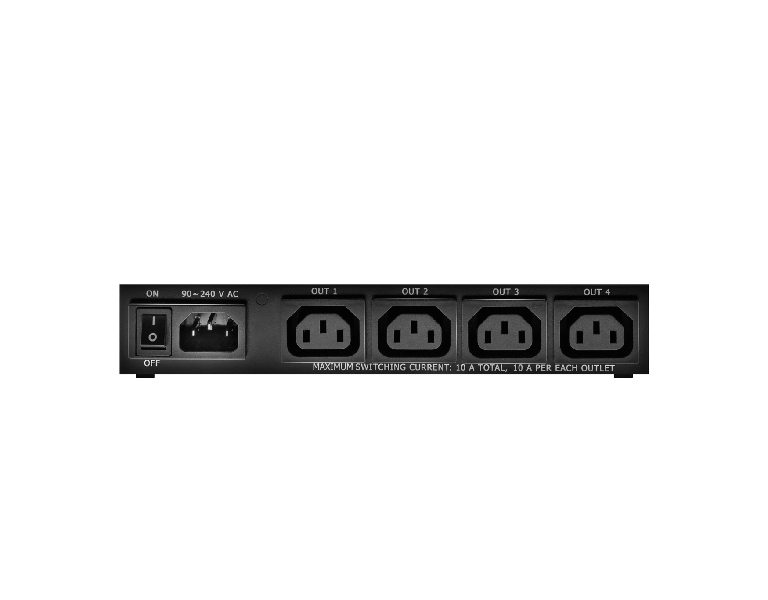

Power Power input: IEC-320 C14 (110/230V AC) 10A
Power output: 4x IEC-320 C13/10A
Each output: On/Off (SPST-NO relay, IOC)
ZVS (Zero Voltage Switching): Yes
Internal consumption: 1-3 W
PowerUp State: Default output state (On/Off/Last state)
PowerUp Delay: Delay before switching the output on

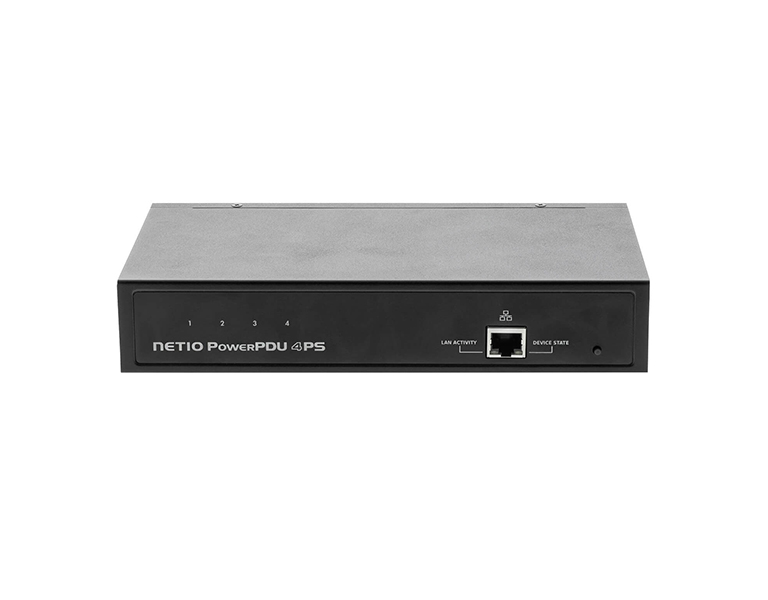

Interfaces LAN 10/100 Mbps (RJ45)
LED indicators in the RJ45 jack
4x LED indicator (output state)
Electrical Measurments Supports electrical measurements: No
Dimensions 220 x 40 x 120 mm
Protection IP30
Temperature range -20°C to +75°C
Standards 1999/5/EC, EN 55011, ed.3:2010, EN 61326-1, ed.2:2013, EN 61010-1, ed.2:2011, EN 50581: 2012
Package contents NETIO PowerPDU 4PS
Quick Installation Guide
Power cable
