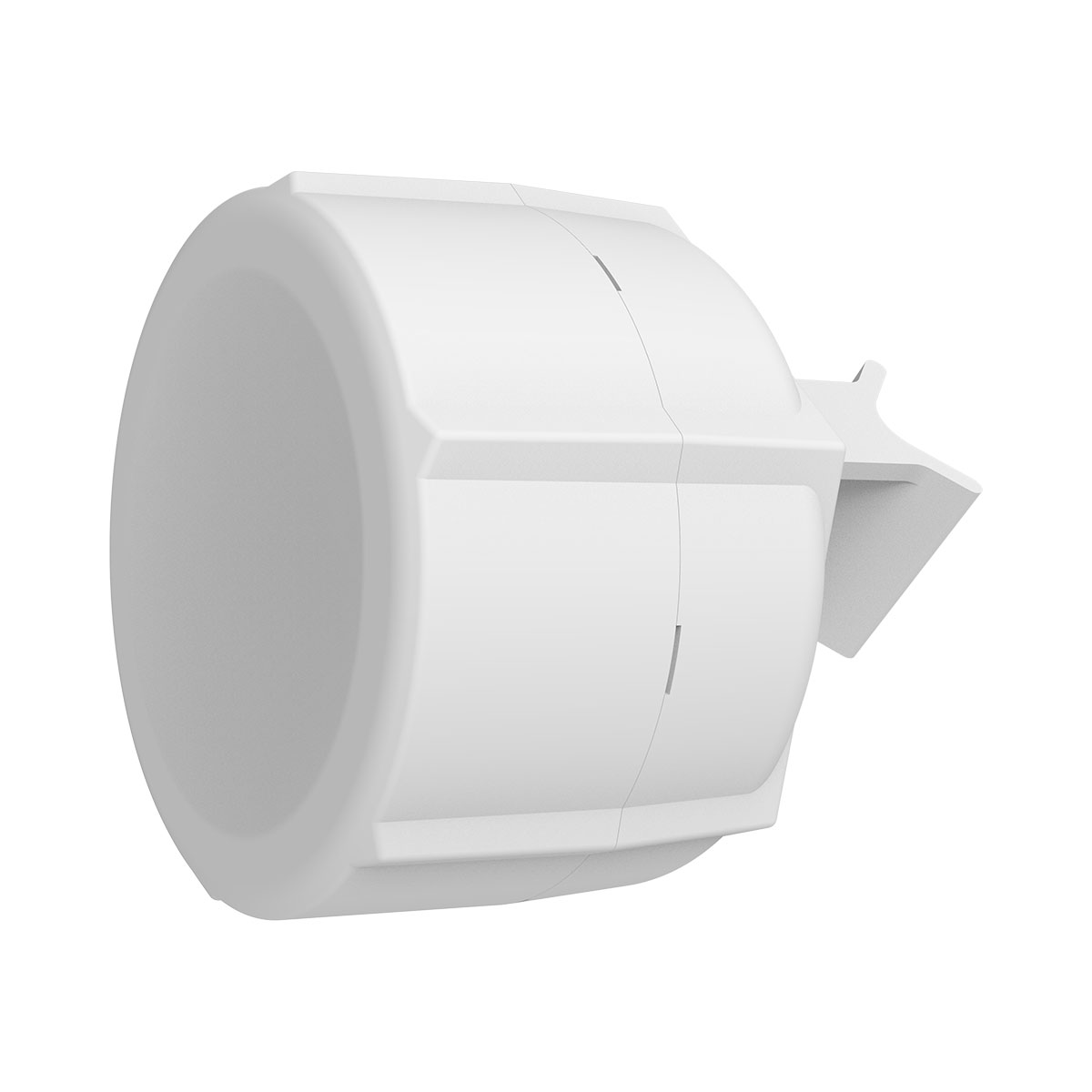

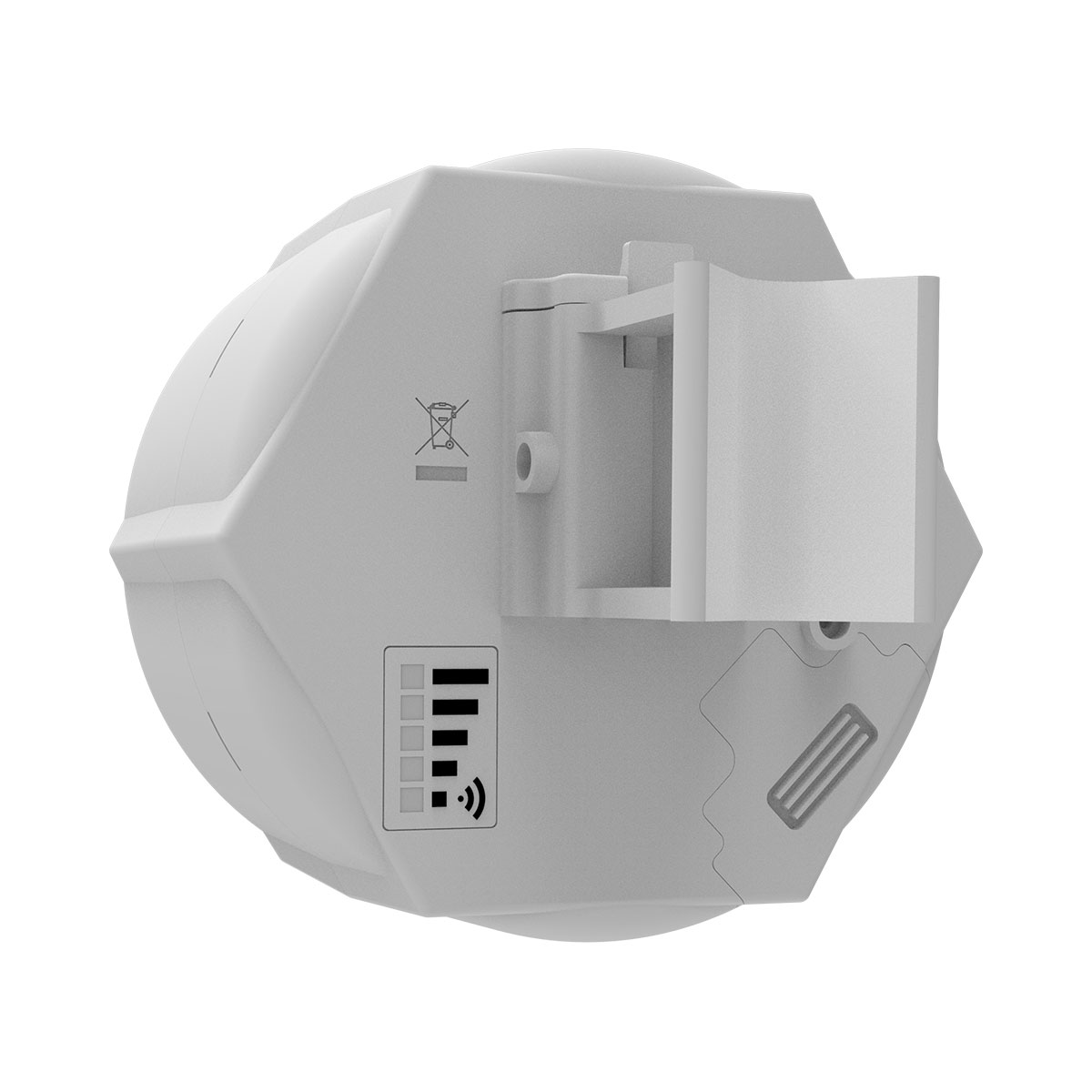

The SXT LTE kit is a device for remote locations that are within cellular network coverage. However, due to it’s professional LTE chip design and high gain antenna, it can provide connectivity for your building even where cell phones can’t.
In comparison with our first generation model RBSXTLTE3-7, the SXT LTE kit is powered by faster CPU and supports not only LTE with more speeds, but also 2G (international model only) and 3G, as well as much wider band range. The unit is equipped with two Ethernet ports (the second port has PoE-out functionality), so you can use it to power up another device. Unit is shipped with a 24 V power supply, but can support full range
18-57 V and is 802.3af/at compliant.
The device has a built in high quality Category 4 modem for speeds of up to 150 Mbit/s downlink and 50 Mbit/s uplink, as well as two Micro SIM slots for backup link.
| Specifications | |
| Product code | RBSXTR&R11e-LTE |
| Architecture | MIPSBE |
| CPU | QCA9531 |
| CPU core count | 1 |
| CPU nominal frequency | 650 MHz |
| Switch chip model | QCA9531 |
| Dimensions | 140 x 140 x 103 mm |
| RouterOS license | 3 |
| Operating System | RouterOS |
| Size of RAM | 64 MB |
| Storage size | 16 MB |
| Storage type | FLASH |
| MTBF | Approximately 200'000 hours at 25C |
| Tested ambient temperature | -40°C to 50°C |
| Powering | |
| Number of DC inputs | 1 (PoE-IN) |
| Max power consumption | 22 W |
| Max power consumption without attachments | 5 W |
| PoE in | 802.3af/at |
| Cooling type | Passive |
| PoE in input Voltage | 12-57 V |
| PoE-out | |
| PoE-out ports | Ether2 |
| PoE out | Passive PoE up to 57V |
| Low voltage PoE-Out current limit | 600 mA |
| High voltage PoE-Out current limit | 400 mA |
| Max total out (A) | 600 mA |
| Mobile | |
| 2G Category 2G bands |
Class12 2 (1900MHz) 3 (1800MHz) 5 (850MHz) 8 (900MHz) |
| 3G Category 3G bands |
R7 (21Mbps Downlinks, 5.76Mbps Uplink) 1 (2100MHz) 2 (1900MHz) 5 (850MHz) 8 (900MHz) |
| LTE Category LTE FDD bands |
4 (150Mbps Downlink, 50Mbps Uplink) 1 (2100MHz) 2 (1900MHz) 3 (1800MHz) 7 (2600MHz) 8 (900 MHz) 20 (800MHz) |
| LTE TDD bands | 38 (2600MHz) 40 (2300MHz) |
| TAC | 35565409 |
| Ethernet | |
| 10/100 Ethernet ports | 2 |
| Peripherals | |
| Number of SIM slots | 2 Modem (Micro SIM) |
| MiniPCI-e slots | 1 |
| Other | |
| Mode button | Yes |
| Certification & Approvals | |
| Certification | CE, EAC, ROHS |
| IP | IP54 |

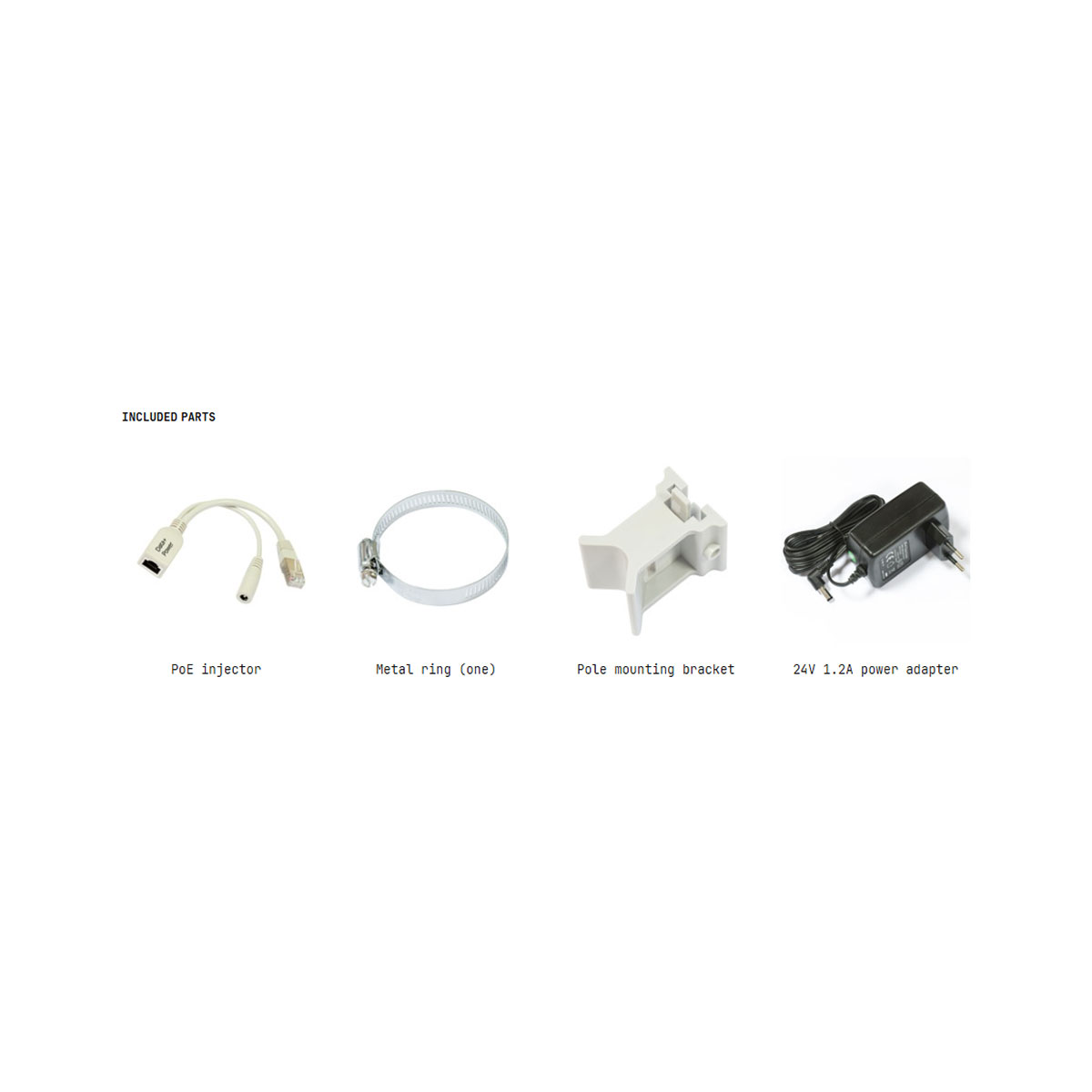

| Included parts | PoE injector |
| Metal ring (one) | |
| Pole mounting bracket | |
| 24V 1.2A power adapter | |
Caution! According to current Greek Legislation, of N.F.B.A.R. and the provisions of the P.D. 98/2017 the lawful use of this product in the frequency band 2400 – 2483,5 MHz, provides for a maximum transmit power of 100mW e.i.r.p.
At this maximum power the output power of the transmitter and the gain of the antenna are both taken into account. Responsible for spectrum surveillance is H.T.P.C.
This product is CE marked, P.D. 98/2017
This product is intended for outdoor use.
Caution! According to current Greek Legislation, of N.F.B.A.R. and the provisions of the P.D. 98/2017 the lawful use of this product in the frequency band 5150 – 5250MHz and 5250 – 5350MHz, provides for a maximum transmit power of 200 mW e.i.r.p. and in the frequency band 5470 – 5725MHz, provides for a maximum transmit power of 1 W e.i.r.p.
At this maximum power the output power of the transmitter and the gain of the antenna are both taken into account. Responsible for spectrum surveillance is H.T.P.C.
This product is CE marked, P.D. 98/2017
This product is intended for outdoor use.
