Ubiquiti ETH-SP-G2 Ethernet Surge Protector, max. 10kA

Product Code:
ETH-SP-G2
15,50 €
(Includes VAT 24%)
Sales price without VAT:
12,50 €
Available
Ubiquiti ETH-SP-G2 Ethernet Surge Protector, max. 10kA
Shipping cost calculation:
Quantity
Add to Cart
Manufacturer:
Warranty:
24 Months
Description
Characteristics
Downloads
Description

ESD Protection for Outdoor High-Speed Networks
Introducing the next generation Ethernet Surge Protector, model ETH-SP-G2, from Ubiquiti Networks. The ETH-SP-G2 is a cost-effective solution for protecting outdoor Ethernet devices from damaging electrostatic discharge and surges. Since all Ubiquiti® airMAX® devices already have robust ESD protection built in, adding the ETH-SP-G2 to the installation provides an additional layer of protection to the network.
The ETH-SP-G2 is engineered to protect Power-over-Ethernet (PoE) or non-PoE devices with connection speeds of up to 1 Gbps. Two passive, surge-protected RJ45 connections provide maximum equipment compatibility.

Ideal for WISP Networks
All Ubiquiti airMAX devices are equipped with ESD protection. However, to protect outdoor devices, and to meet certain local code requirements, installing the ETH-SP-G2 is essential.

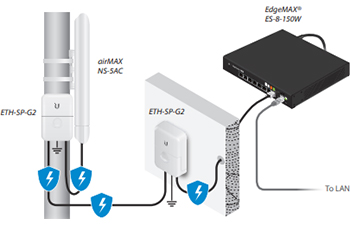

For example, to guard against costly service calls, and to help your subscriber installations meet code requirements, install two ETH-SP-G2 devices: one near the CPE, and the other at the entry point to the building. Damaging ESD attacks and surges will be absorbed by the ETH-SP-G2 devices and safely discharged into the ground.

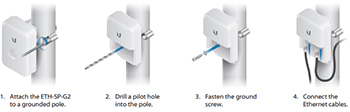

Fast Installation
The ETH-SP-G2 was designed for easy, plug and play installation:



Characteristics
Specifications
Dimensions 91 x 61 x 32.5 mm
Weight 80 g

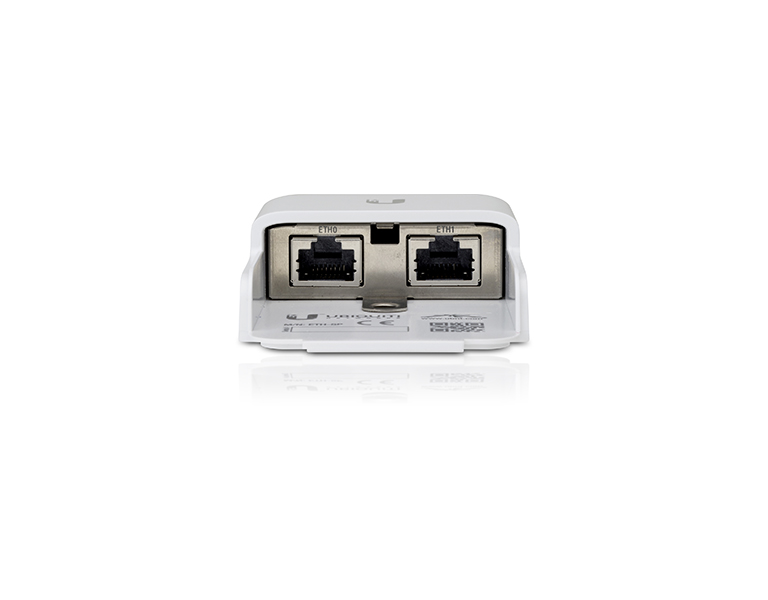

Interface Connections (2) RJ45 Female Connectors
ESD/EMP Protection Absorbing Transient Current with Response to
Surge Voltage from 100V/s to 1kV/μs
DC Spark-Over Voltage 90V @ 100V/s
Maximum Impulse Spark-over Voltage 700V @ 1kV/μs
Discharge Current 10kA+
Maximum Insulation Resistance 1G ohm @ 50V
Maximum Capacitance 1.0 pF @ 1 MHz
Data Line Protection RJ45 10/100/1000 Ethernet
IEEE 802.3af PoE Support Yes
Shock and Vibration Certification ETSI300-019-1.4 Standard
Operating Temperature -30 to 65° C
Operating Humidity 10 to 90% Noncondensing
