Ubiquiti UF-OLT U Fiber, 8-port GPON Optical Line Terminal with SFP+
High-Performance GPON
Configuring a fiber network just became as easy as setting up a smartphone. Say goodbye to command lines, manuals, and paid support licenses. Introducing the UFiber OLT – a fiber solution that anyone can deploy.
UFiber offers Internet and telecom service providers a cost-effective fiber optic delivery system for Triple Play Services (data, voice, IPTV/VoD) with speeds of up to 2.488 Gbps downstream and 1.244 Gbps upstream.
The UFiber network is intelligently managed using the included UNMS™ (Ubiquiti Network Management System) controller. UFiber devices consist of the UFiber OLT (deployed at the provider premises) and the UFiber Nano™G consumer premises equipment ONUs.
UFiber Controller Software
Ubiquiti Networks distinguishes itself with a library of powerful and intuitive management software that is included at no additional cost. The UNMS is the latest addition to the library.
The UNMS is a comprehensive management controller, featuring a graphical UI that is easy to learn and navigate. UNMS manages all of the registered UF-OLTs and all of their UF‑Nano clients.
Features:
• Intuitive, Graphical Web UI
• Quick Configuration and Deployment of UFiber Devices
• Centralized Management of Multiple GPON Networks and Sites
• Graphical Reports for Efficient Monitoring and Troubleshooting
• Linux-based for Low-Cost Setup
• No Licensing or Usage Fees
GPON Optical Line Terminal

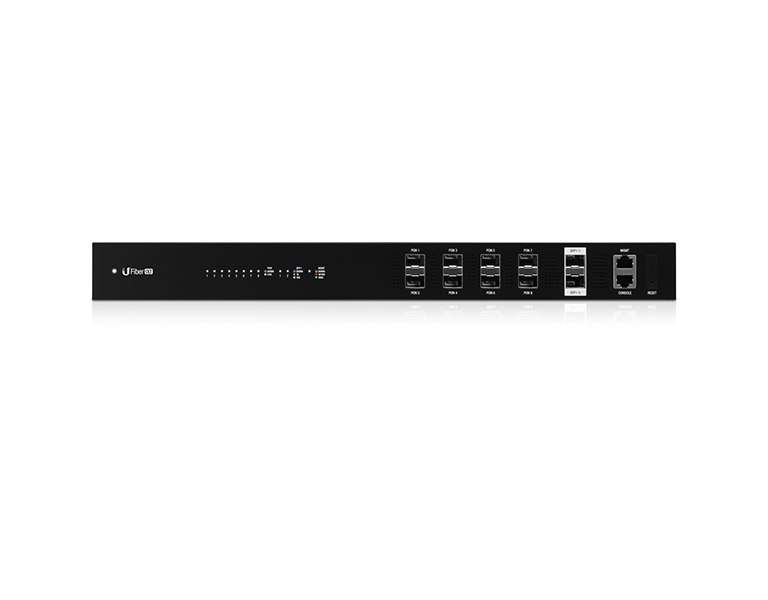

The UFiber OLT offers eight GPON ports and supports up to 1024 concurrent clients with physical links of up to 20 km in distance. Two SFP+ ports provide 10G of uplink connectivity.

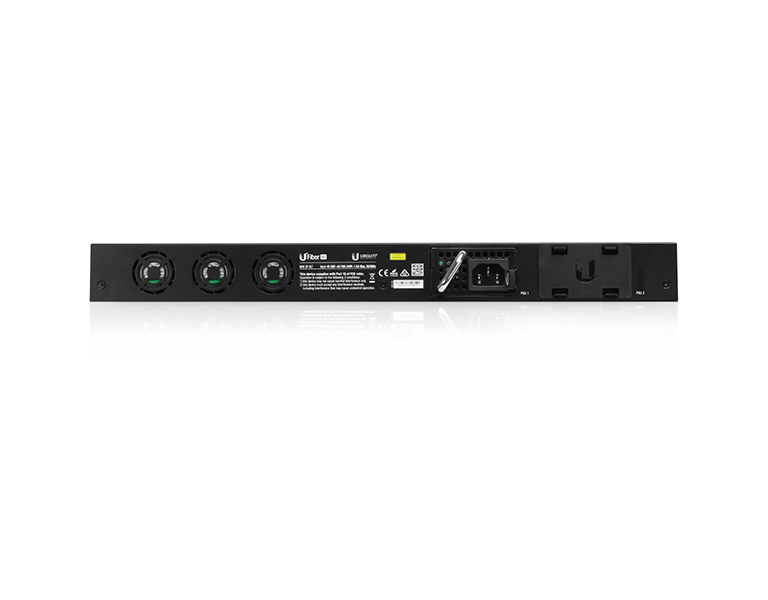

The UF-OLT provides flexible power options, with two modular power adapter bays that can house either AC/DC or DC/DC power modules. One AC/DC module is included; additional modules can be purchased separately.
Features:
• Ports: (8) GPON SFP Ports, (2) SFP+ Ports
• Concurrent Clients: 1024 ONUs
• GPON Range: Up to 20 km Link
• GPON Speeds: 2.488 Gbps Upstream (TX), 1.244 Gbps Downstream (RX)
• Wavelengths: 1490 nm Upstream (TX), 1310 nm Downstream (RX)
• Max. Power Consumption: 40W
• Power Method:
- AC/DC Power Module (Included)
- DC/DC Power Module (Optional)
• Mounting: 1U Rack-Mountable (Optional)
| Specifications | |
| Dimensions | 442.4 x 285.6 x 43.7 mm |
| Weight (with Mount Brackets) |
4.40 kg 4.495 kg |
| Networking Interface | (8) GPON OLT SFP (2) 1G/10G SFP+ |
| Concurrent Clients | 1024 Registered ONUs/ONTs (128 per GPON Port) |
| Management Interfaces | (1) Ethernet for Out-of-Band Management (1) RJ45 Serial Console Port |
| GPON Speeds | 2.488 Gbps Upstream (TX) 1.244 Gbps Downstream (RX) |
| Operating Wavelengths | 1490 nm TX 1310 nm RX |
| Normal Optical Power Range | TX (Class B+): 1.5 dBm to 5 dBm RX: -8 dBm to -28 dBm |
| Range Physical Reach Logical Reach Max. Differential Fiber Distance |
20 km 60 km 20 km (B+) /40 km (C+) |
| Power Method | 100-240VAC, 100W AC/DC Power Module (Included) 38-54VDC, 100W DC/DC Power Module (Optional) |
| Power Supply | (1) 25V, 100W AC/DC PSU Module (Included) |
| Max. Power Consumption | 40W (Excluding SFP Modules) |
| Operating Mode | OLT 2/3 Ethernet Switch and GPON Core |
| Advanced QoS | Supports 8 Priority Queues per User Port and Traffic Classification |
| Processor Specs | MIPS 1004kc, 880 MHz Dual Core |
| Memory Information | 512 MB DDR3, 512 MB NAND |
| Operating Temperature | -10 to 45° C (14 to 113° F) |
| Operating Humidity | 10 to 90% Noncondensing |
| Certifications | CE, FCC, IC |
