Description

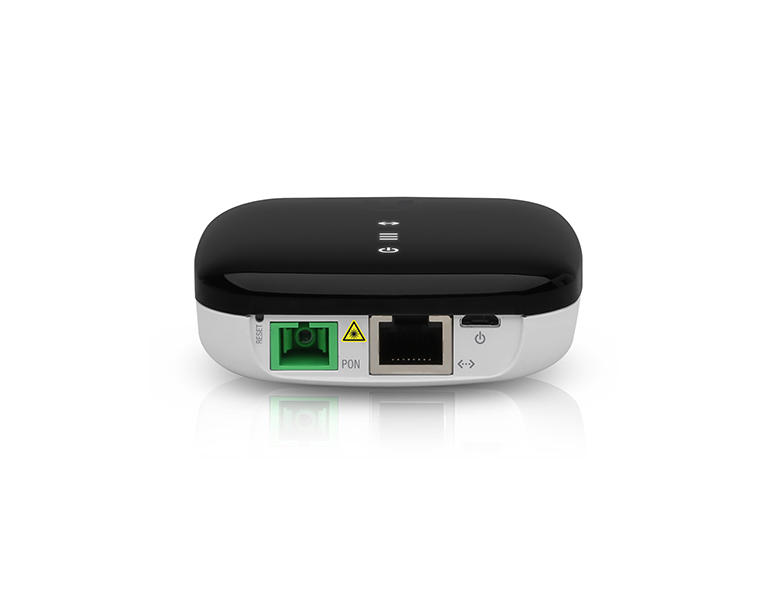

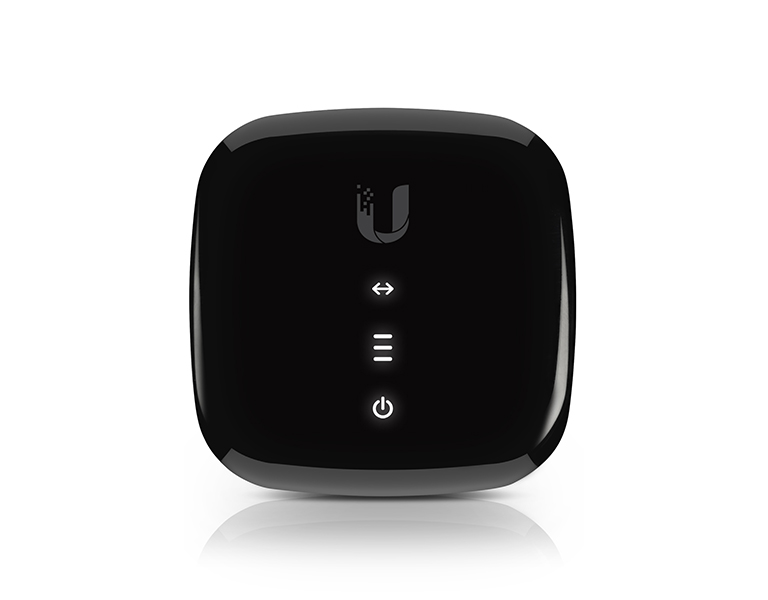

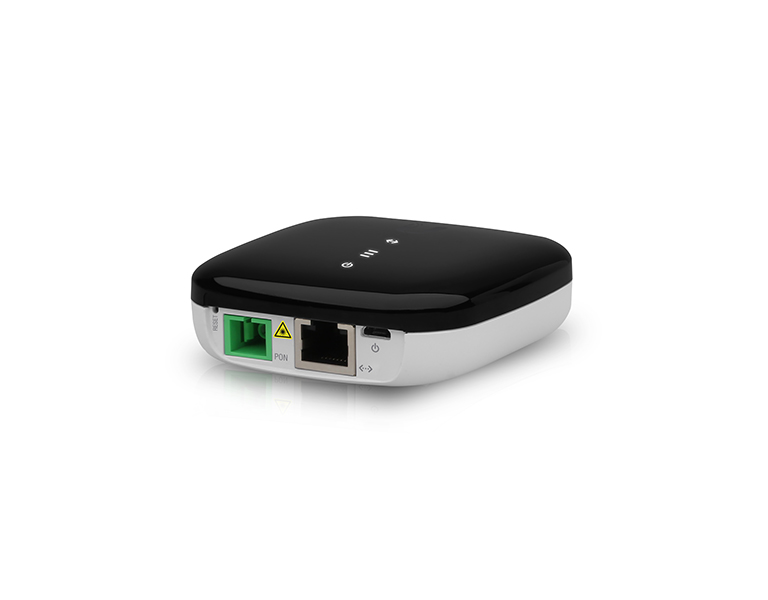

GPON Optical Network Unit
Sporting a sleek industrial design, the UFiber loco is a robust, high‑performance GPON CPE that features extremely low power consumption and the choice of 24V passive PoE or Micro-USB power.
Features

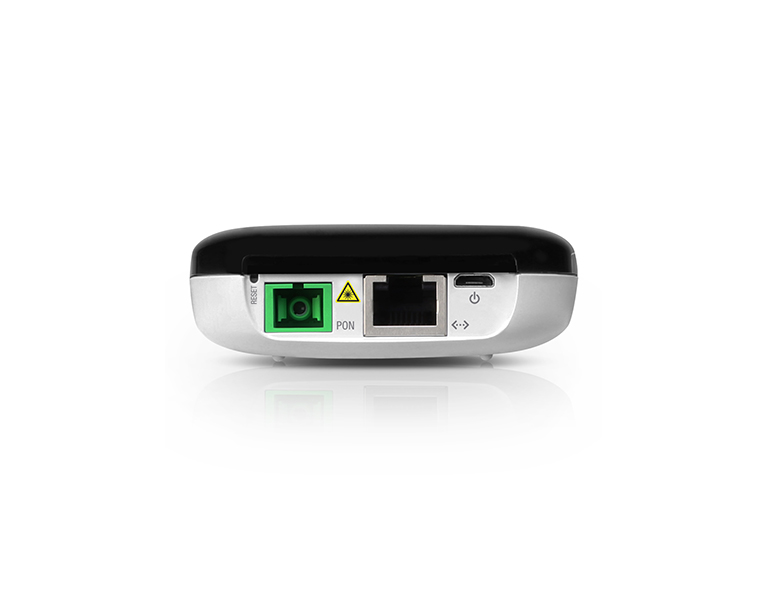

• WAN: (1) GPON Port
• LAN: (1) Gigabit Ethernet Port
• GPON Speeds: 2.488 Gbps Downstream (RX), 1.244 Gbps Upstream (TX)
• Wavelengths: 1490 nm Downstream (RX), 1310 nm Upstream (TX)
• Max. Power Consumption: 3.5W
• Power Method: 24V Passive PoE or Micro-USB Power Adapter
• Mounting: Wall-Mountable (Indoor)
Characteristics
| Specifications | |
| Dimensions | 76.5 x 76.5 x 26.4 mm |
| Weight | 77 g |
| Networking Interface Speeds | (1) GPON WAN, ITU G.984, 2.488 Gbps Downstream, 1.244 Gbps Upstream (1) GbE LAN, 10/100/1000 Mbps |
| Management Interface | In-Band Ethernet/PON |
| Normal Optical Power Range | TX (Class B+): 1.5 dBm to 5 dBm RX: -28 dBm to -8 dBm |
| Power Method | Micro-USB: 5V, 1A 24V Passive PoE (Pins +4, 5; -7, 8) |

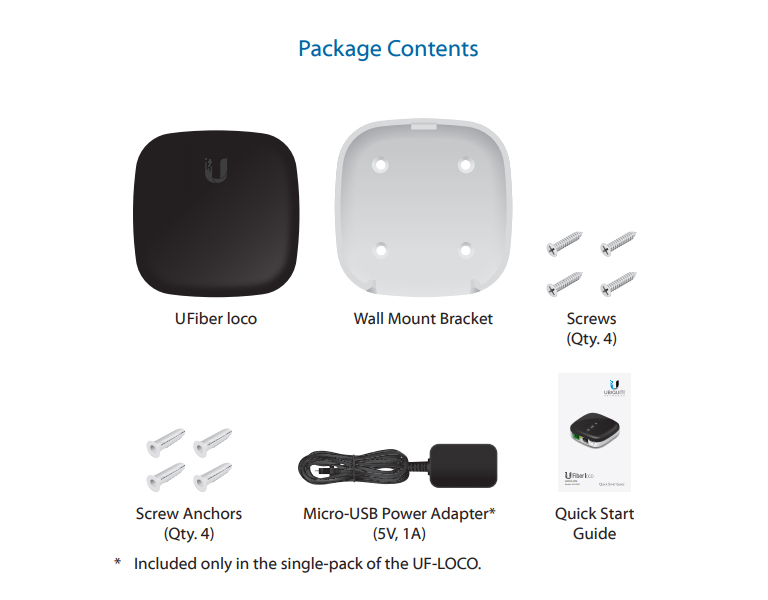

| Power Supply | Micro-USB Power Adapter*: 5V, 1A *Included only in the single-pack of the UF-LOCO |
| Max. Power Consumption | 3.5W |
| Supported Voltage Range | 4.7 to 5.3V |
| Processor Specs | MIPS32, 240 MHz |
| Memory Information | 128 MB DDR3 |
| Buttons | (1) Reset |
| Operating Temperature | -10 to 45° C (14 to 113° F) |
| Operating Humidity | 10 to 90% Noncondensing |
| Certifications | CE, FCC, IC |
