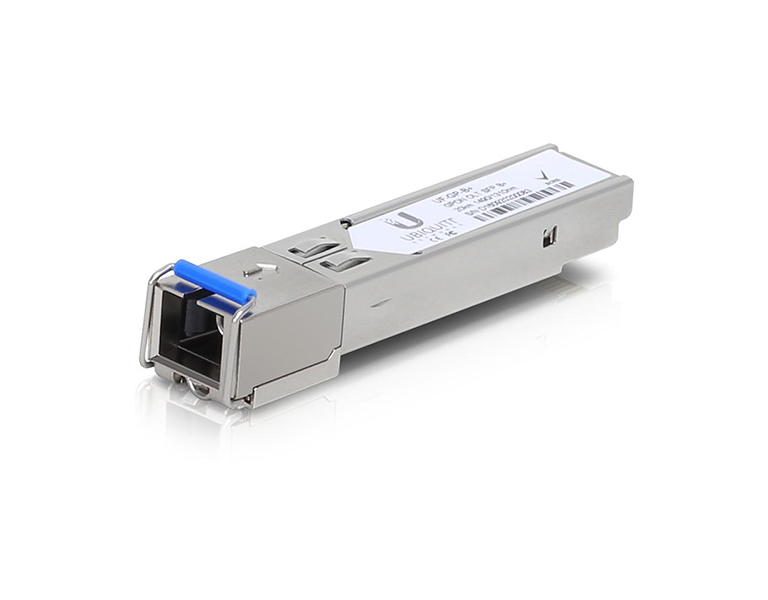

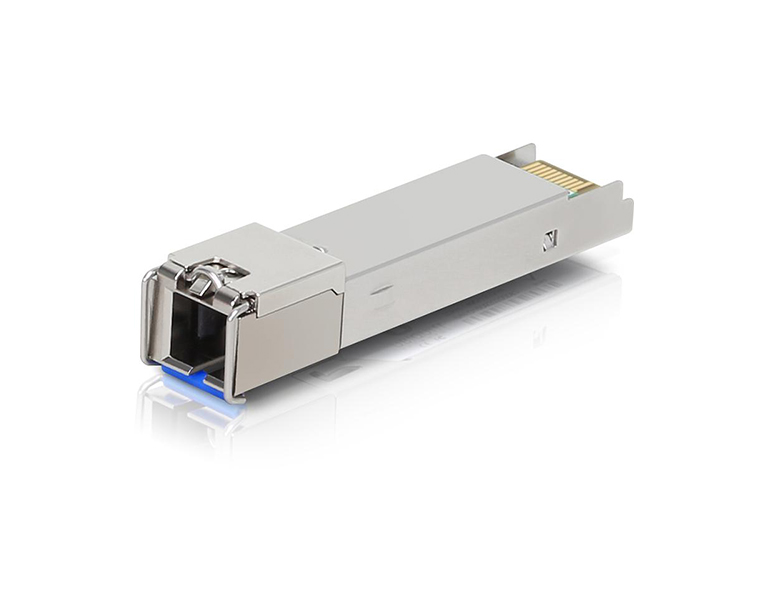

Ubiquiti UF-GP-B+ U Fiber GPON OLT, Class B+ SFP Module
Product Code:
UF-GP-B+
97,00 €
(Includes VAT 24%)
Sales price without VAT:
78,23 €
7 Days
Ubiquiti UF-GP-B+ U Fiber GPON OLT, Class B+ SFP Module
Shipping cost calculation:
Quantity
Description
Characteristics
Downloads
Description
Ubiquiti Networks offers UFiber GPON modules to increase the capacity of UFiber OLT.
The UFiber OLT’s GPON SFP ports are designed for use with the UF-GP-B+ and UF-GP-C+ SFP modules.
Characteristics
| Specifications | |
| Supported Media | Single-Mode Fiber |
| Connector Type | (1) SC/UPC |
| TX Wavelength | 1490 nm |
| RX Wavelength | 1310 nm |
| TX Power Range | 1.5 to 5 dBm |
| RX Power Range | -28 to -8 dBm |
| Downstream Data Rate | 2.5 Gbps |
| Upstream Data Rate | 1.25 Gbps |
| Cable Distance | 20 km |
| Model Comparison | ||
| UF-GP-B+ | UF-GP-C+ | |
| Supported Media | Single-Mode Fiber | Single-Mode Fiber |
| Connector Type | (1) SC/UPC | (1) SC/UPC |
| TX Wavelength | 1490 nm | 1490 nm |
| RX Wavelength | 1310 nm | 1310 nm |
| TX Power Range | 1.5 to 5 dBm | 3 to 7 dBm |
| RX Power Range | -28 to -8 dBm | -30 to -12 dBm |
| Downstream Data Rate | 2.5 Gbps | 2.5 Gbps |
| Upstream Data Rate | 1.25 Gbps | 1.25 Gbps |
| Cable Distance | 20 km | 20 km |
