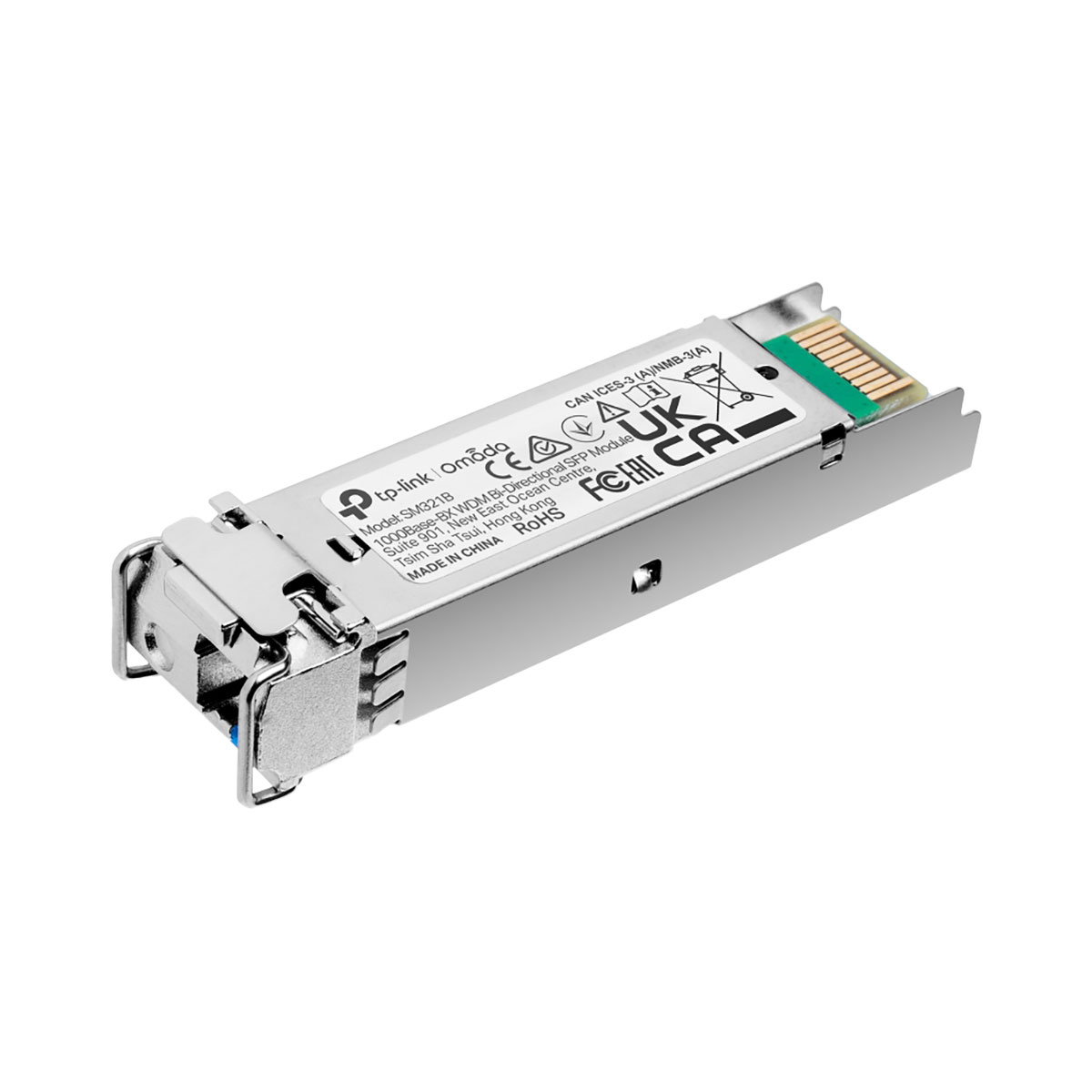

TP-LINK SM321B V3.3 1000Base-BX WDM Bi-Directional SFP Module
Product Code:
SM321B
17,80 €
(Includes VAT 24%)
Sales price without VAT:
14,35 €
Available
TP-LINK SM321B V3.3 1000Base-BX WDM Bi-Directional SFP Module
Shipping cost calculation:
Quantity
Description
Characteristics
Downloads
Description
|
• WDM Bi-Directional SFP Module |
What This Product Does
SM321B adopts the latest standard 1000Base-BX, transmitting over a single strand of fiber with one different wavelength going in each direction. You can extend the network distance up to 20Km with TP-Link´s routers, switches and media converters to provide high speed and stability.
Characteristics
| SPECIFICATIONS | |
| Standards and Protocols | IEEE 802.3z, TCP/IP |
| Wave Length | Tx: 1310 nm Rx: 1550 nm |
| Power Supply | 3.3V |
| Safety & Emission | FCC, CE |
| Cabel | Single-Mode Fiber |
| Fiber Type | 9/125 μm Single-Mode |
| Max. Cable Length | 20 KM |
| Data Rate | 1.25 Gbps |
| Port Type | LC Simplex |
| DDM | Yes |
| SFP-MSA | Yes |
| Hot Swappable | Yes |
| Power Support | 3.3 V |
| Safety & Emission | FCC, CE |
| Environment | Operating Temperature: 0–70 °C Storage Temperature: -40–85 °C Operating Humidity: 10–90% RH, Non-Condensing Storage Humidity: 5–90% RH, Non-Condensing |
