E-zy EZ-HDCE Hinged Die Cast Aluminum Outdoor Enclosure,1 Ethernet, 4 N-type holes
Product Code:
EZ-HDCE
56,00 €
(Includes VAT 24%)
Sales price without VAT:
45,16 €
Available
E-zy EZ-HDCE Hinged Die Cast Aluminum Outdoor Enclosure,1 Ethernet, 4 N-type holes
Shipping cost calculation:
Quantity
Category:
Manufacturer:
Description
Characteristics
Description

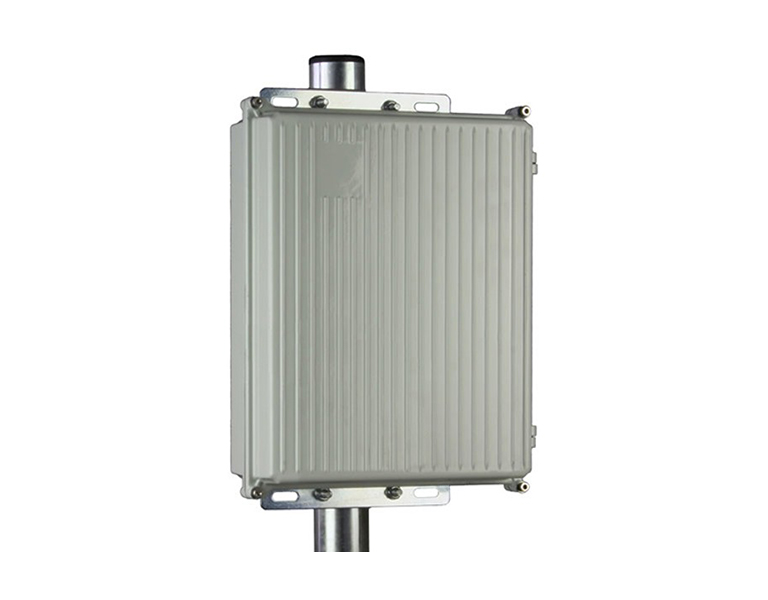

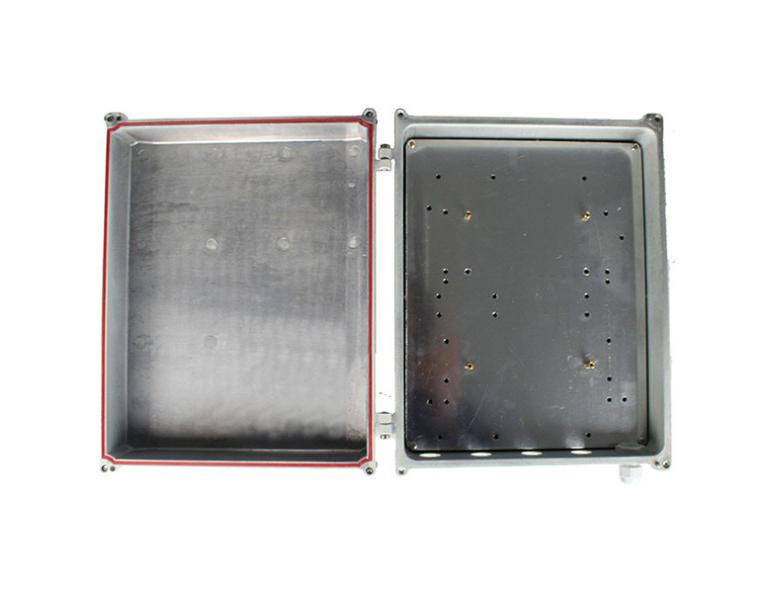

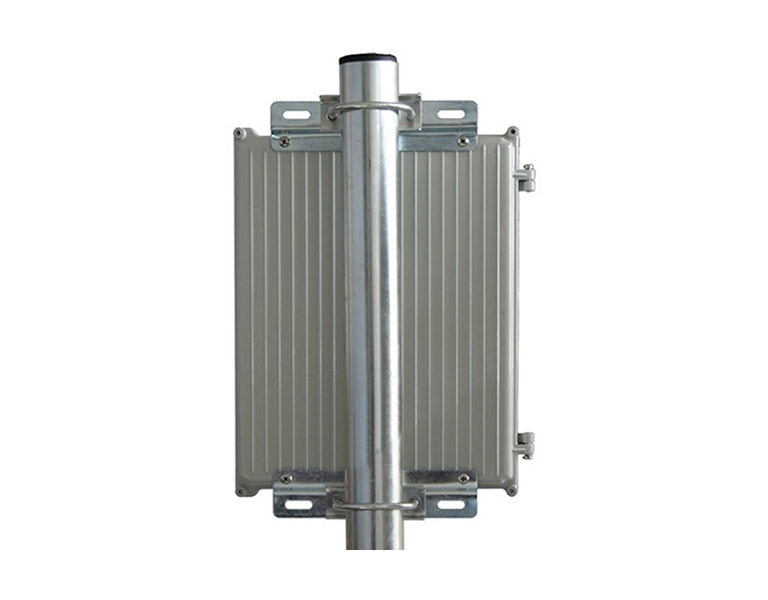

The EZ-HDCE is an IP56 rated Hinged Die Cast Aluminum Enclosure designed for extremely long life in outdoor environments. The powder coat paint over aluminum construction offers unsurpassed resistance to corrosion. Τhe pole mount hardware includes heavy galvanized Pole Clamps, U-Bolts and attachment nuts. It has extra heavy duty mounting flanges for reliable mounting to poles or surface mounting to walls. EZ-HDCE outer dimensions are 28.5cm x 23cm x 9.5cm and inner dimmensions 25.5cm x 20cm x 7.5cm There are 5 holes on the bottom part. 1 x 22.3mm for Network Cable (included Cable Gland or optional ΕΖ-RJ45ECS22) and 4 x N-Type for pigtail / antennas.
Characteristics
| Specifications | |
| Mount | Wall / Mast |
| Mast diam | 30-60mm |
| Holes | 1 x Cable Gland + 4 x N-Type |
| Outdoor Rated | IP56 |
| Material | Aluminum |
| Color | Grey |
| Weight | 1812gr |
| Dims | 281 x 223 x 102 mm |

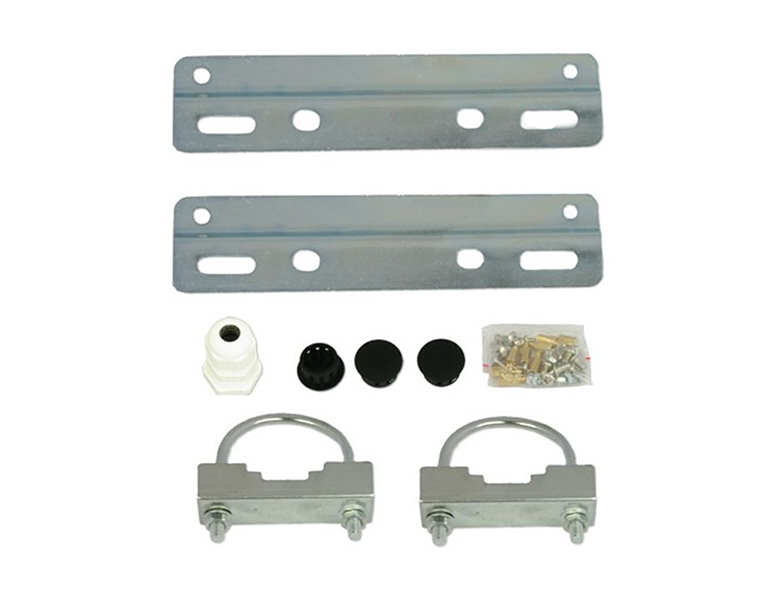

| Package Contents | 1 x HDCE Hinged Die Cast Enclosure 1 x Blank Customer Install Plate 1 x Cable Gland 3 x N-Type plugs 1 x Silicon Gasket 2 x Mounting bracket 2 x U-Bolt and Clamp Kit 1 x Screw KIT |
