Ubiquiti UACC-Retrofit-PoE-2Wire, PoE Over 2-Wire Retrofit Extender
Ubiquiti UACC-Retrofit-PoE-2Wire, PoE Over 2-Wire Retrofit Extender

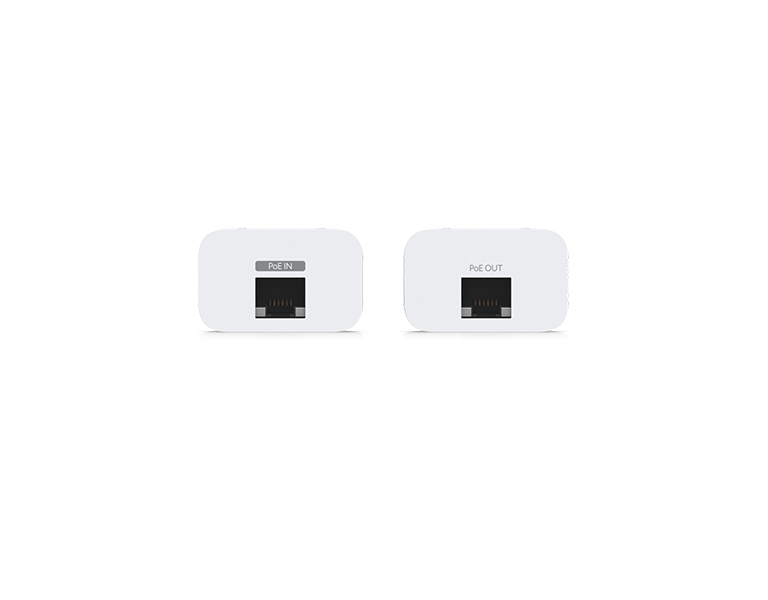

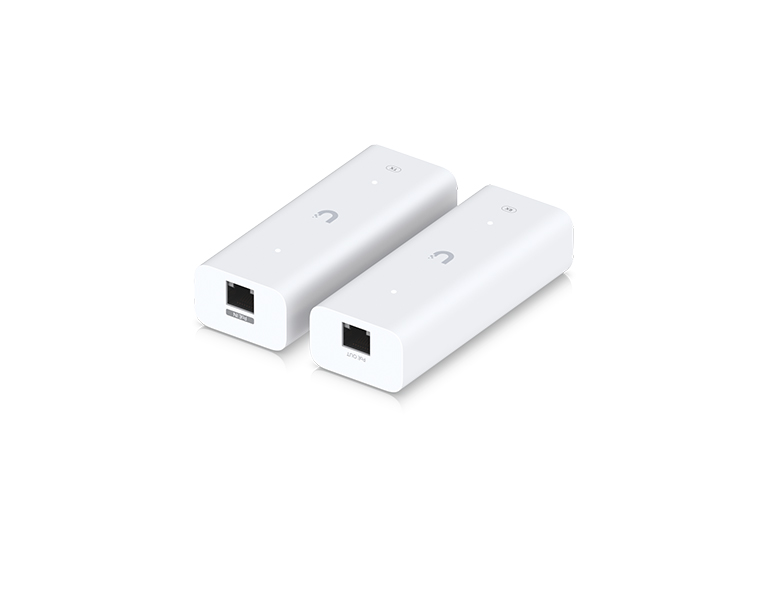

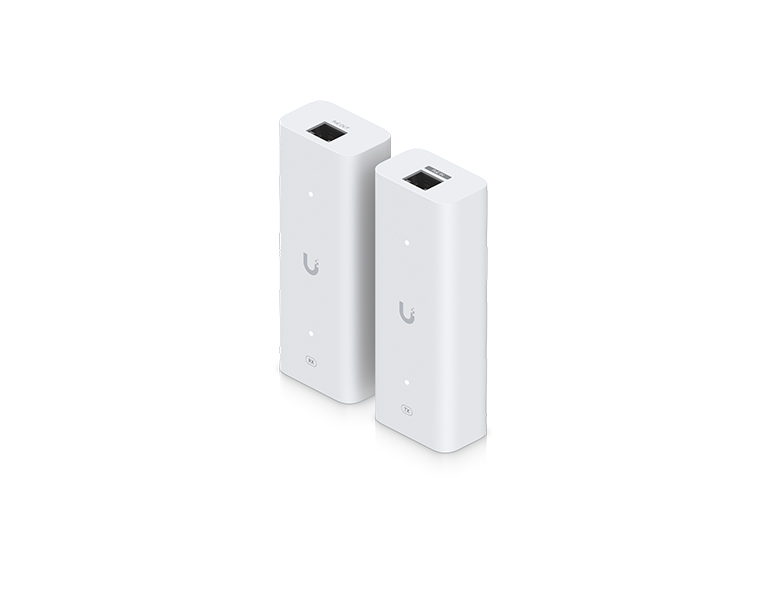

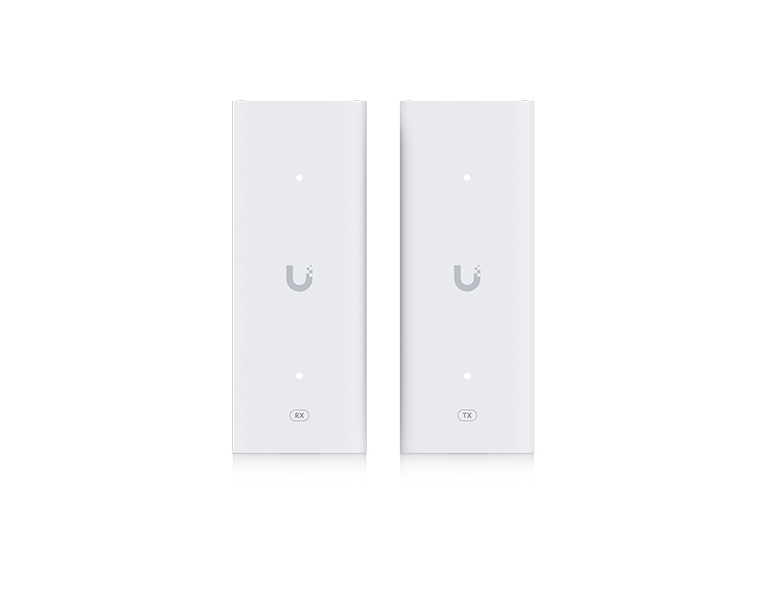

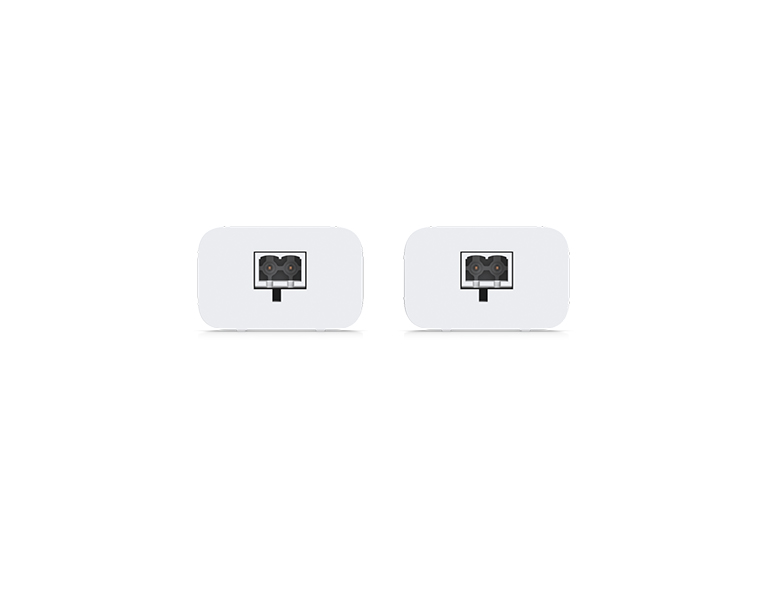

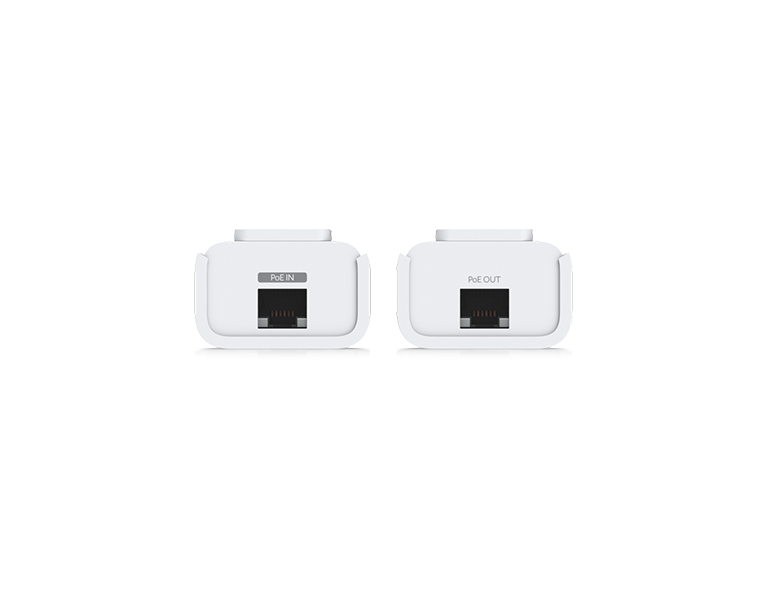

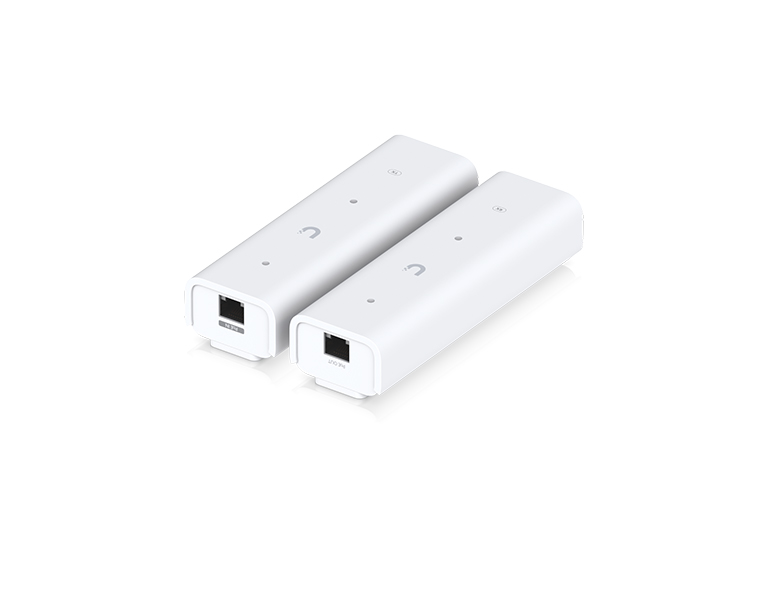

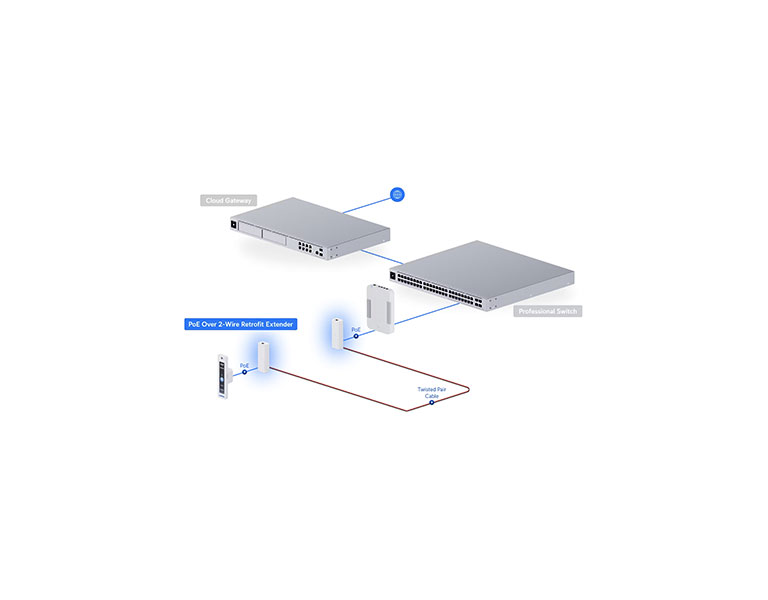

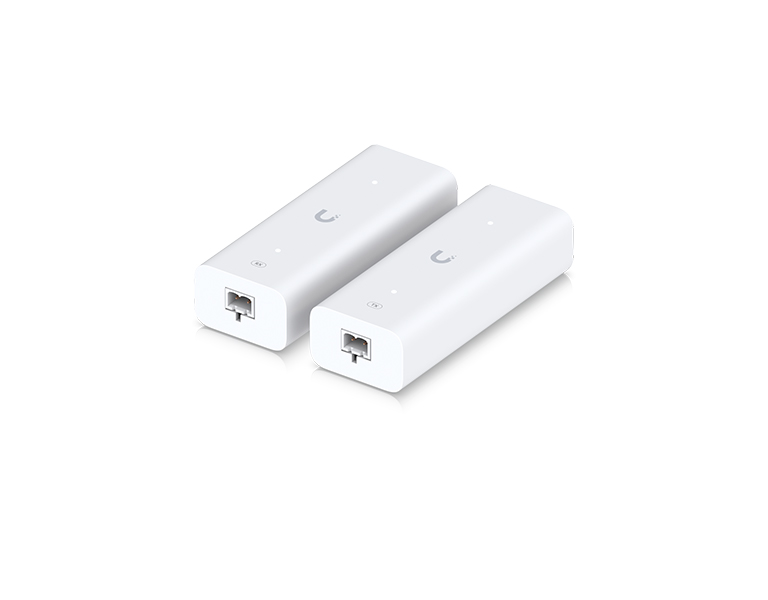

A pair of extenders that allow you to extend PoE over twisted pair or coaxial cables. This solution is ideal for situations where replacing the original cabling is not an option. Each extender features a 1x 10/100 Mbit ETH port and a two-pin connector, which can be fitted with a terminal block or an coaxial adapter. Powering the extenders is handled via the PoE-IN port with PoE++ (50V DC, 1.2A), while on the other side, you get a PoE-OUT PoE+ output (48V DC, 0.6A). The transmission over twisted pair or coaxial cable is based on the Homeplug AV standard. The extenders themselves consume 3W of power.

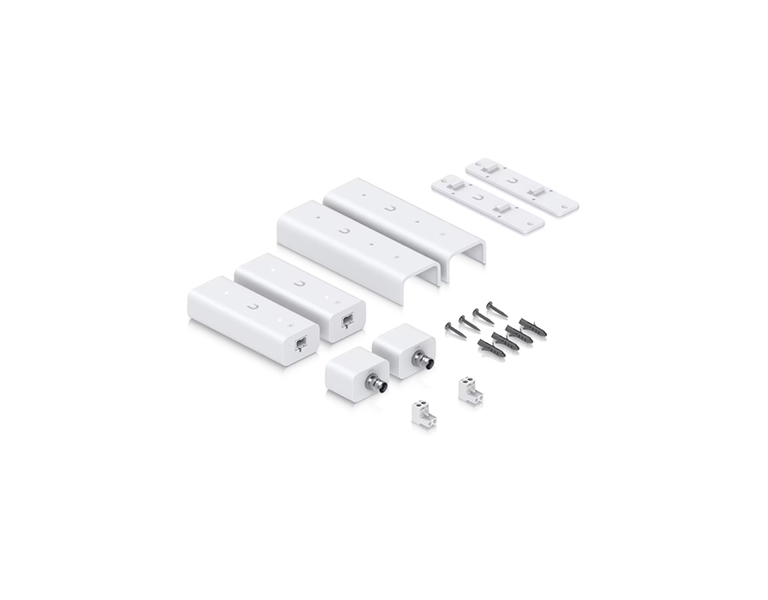

Package Contents:
• (2) Extenders
• (2) Terminal blocks
• (2) Coax adapters
• (2) Plastic covers
• Mounting bracket
• Wall plugs and screws
| Mechanical |
|
| Dimensions | PoE in/out: 40 x 105 x 25 mm Adapter: 43.5 x 138 x 30 mm |
| Weight | PoE in: 77 g PoE out: 79 g Adapter: 140 g |
| Enclosure material | Polycarbonate |
| Mounting material | Polycarbonate |

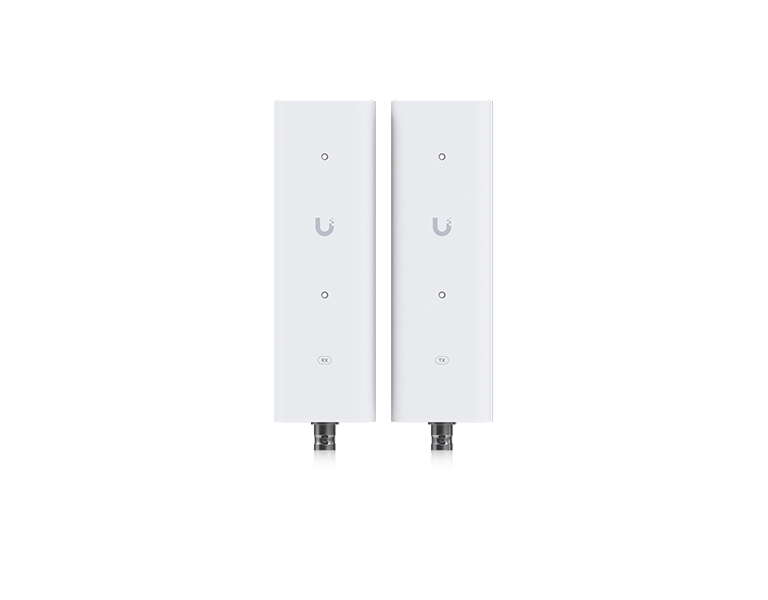

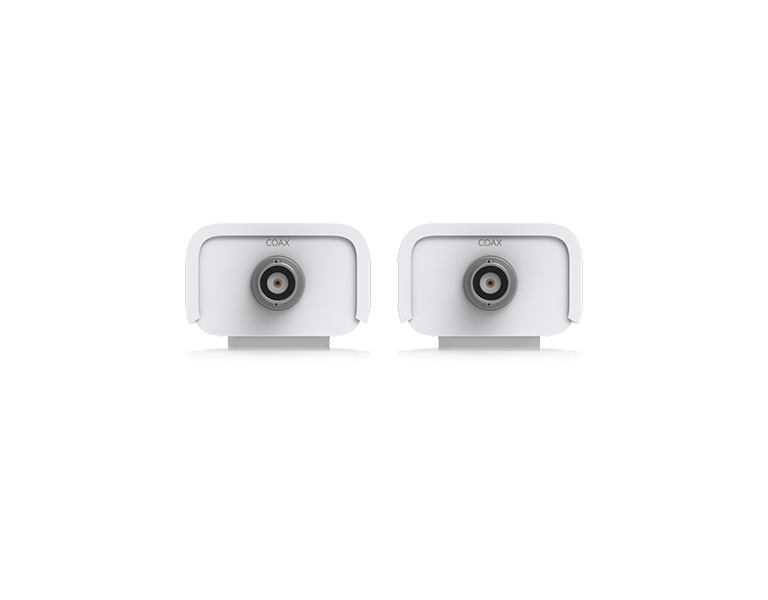

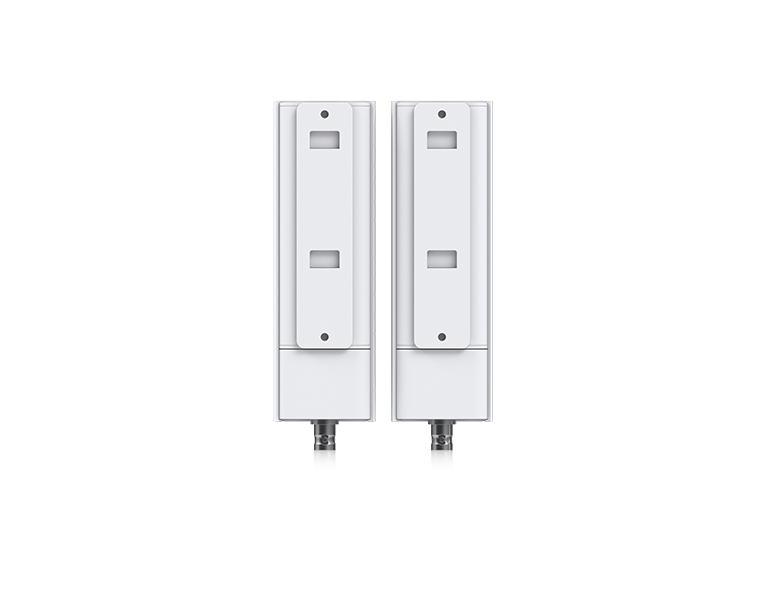

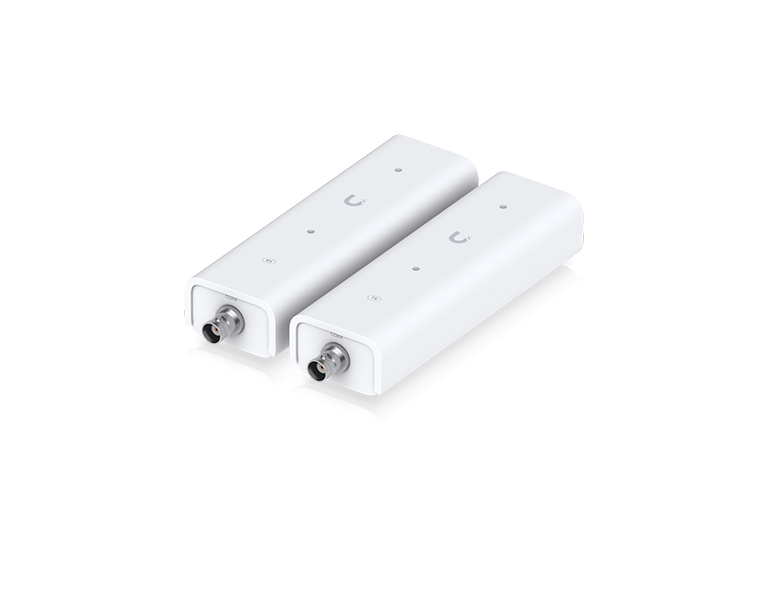

| Coaxial connector | BNC female |
| Hardware | |
| Networking interface | (1) 10/100 MbE (1) Homeplug AV |
| Power method | PoE++ |
| PoE input | (1) PoE++, 50V DC, 1.2A |
| PoE output | (1) PoE+, 48V DC, 0.6A |
| Max. power consumption | 3W (Without PoE output) |
| ESD/EMP protection | Air: ±8kV, contact: ±4kV |
| LED | White |
| Ambient operating temperature | -10 to 40° C |
| Ambient operating humidity | 5 to 90% noncondensing |
| Certifications |
CE, FCC, IC |
| Recommend max. cable length |
||||
| UTP 24AWG 0.18ohm/meter | RG-6, 0.14ohm/meter | |||
| Cable length | Bandwidth (Mbps) |
Max output (W) |
Bandwidth (Mbps) |
Max output (W) |
| 50 m | 85 | 25 | 85 | 25 |
| 100 m | 85 | 13 | 85 | 20 |
| 150 m | 85 | 9 | 85 | 13 |
| 200 m | 85 | 6 | 85 | 9 |
| 250 m | 80 | 4 | 85 | 7 |
| 300 m | 75 | 3 | 85 | 6 |
| 350 m | 70 | 0 | 85 | 4 |
| 400 m | 65 | 0 | 82 | 3 |
| 450 m | 60 | 0 | 80 | 0 |
| 500 m | 55 | 0 | 75 | 0 |
| 550 m | 50 | 0 | 70 | 0 |
| 600 m | - | - | 65 | 0 |
| 650 m | - | - | 60 | 0 |
| 700 m | - | - | 55 | 0 |
| 750 m | - | - | 50 | 0 |
