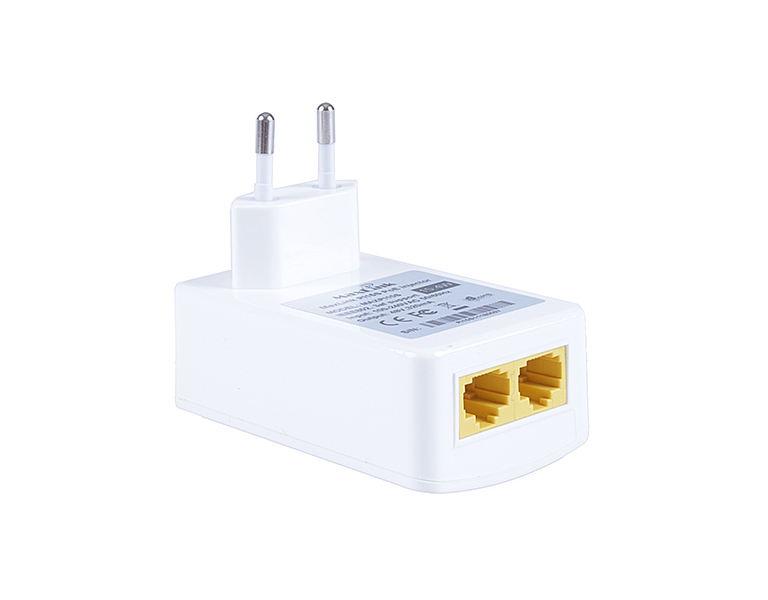

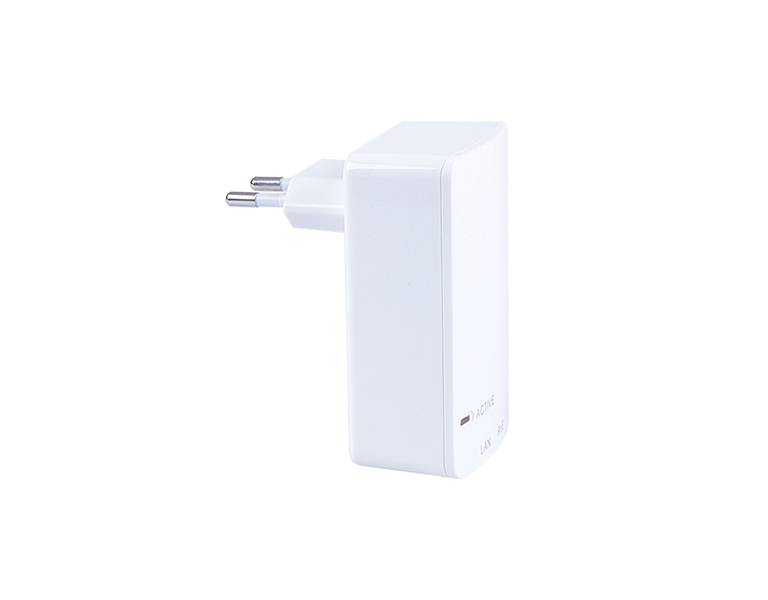

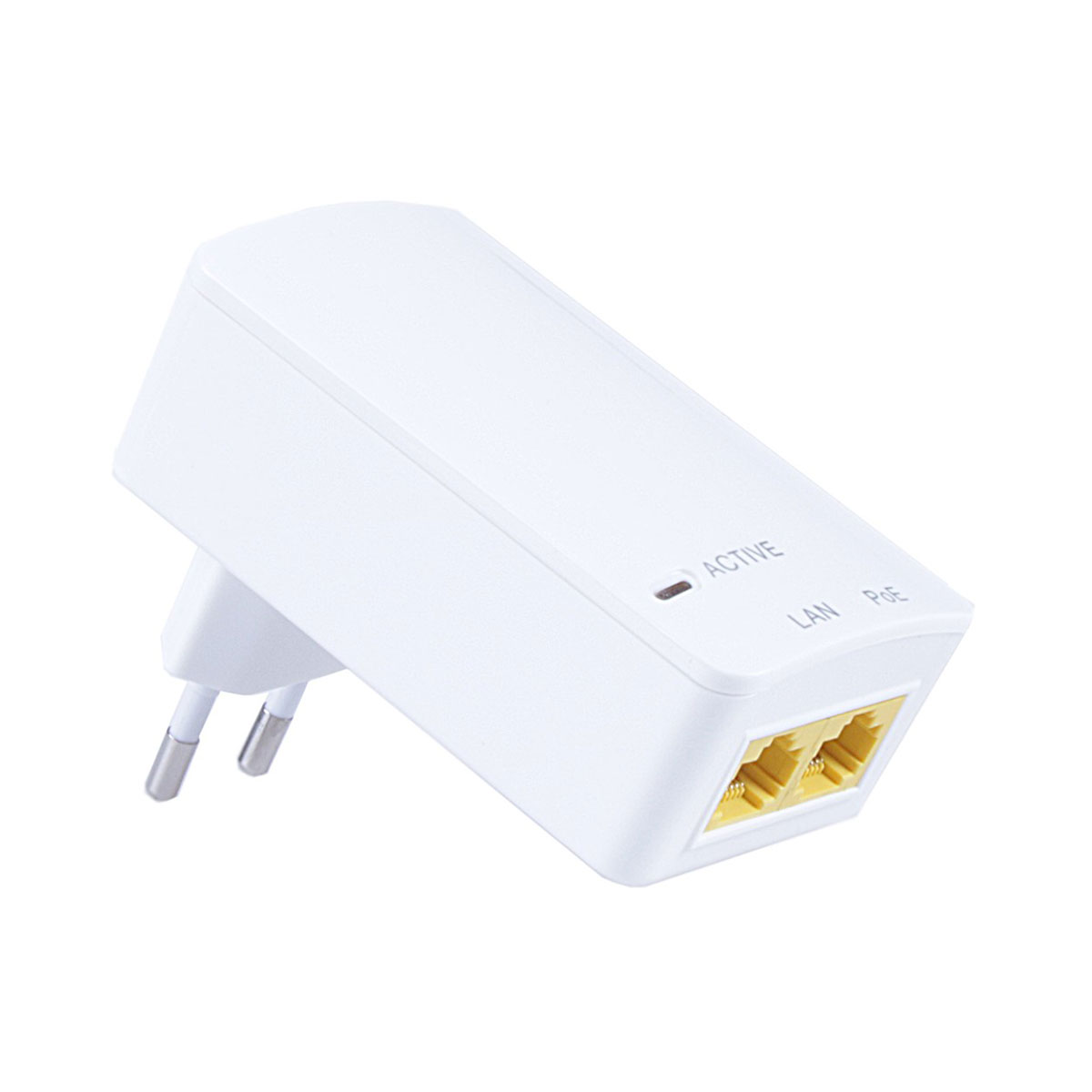

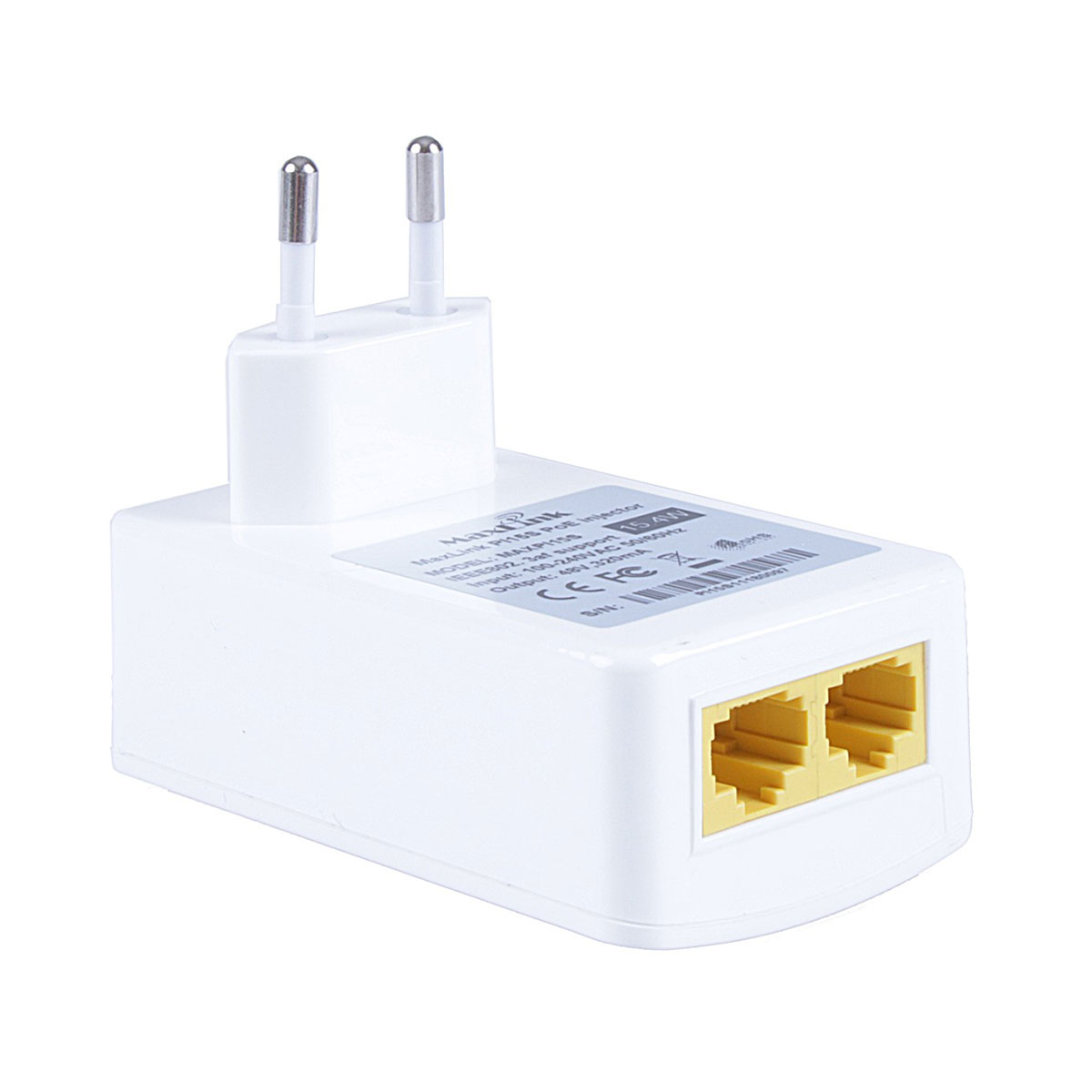

MaxLink MAXPI15S PoE Injector, 802.3af, 48V, 0.32A, 15.4W, 1Gbit, socket
Product Code:
MAXPI15S
10,50 €
(Includes VAT 24%)
Sales price without VAT:
8,47 €
Available
Next pickup date: 05/06/2025
MaxLink MAXPI15S PoE Injector, 802.3af, 48V, 0.32A, 15.4W, 1Gbit, socket
Shipping cost calculation:
Quantity
Description
Characteristics
Downloads
Description
MaxLink PI15S is a high-quality Gigabit POE injector with one POE port for powering 802.3af devices and maximum power up to 15.4W. The PoE injector is connected directly to the dispenser. The power supply is guided along the lines 4,5 (+) and 7,8 (-). The power injector is especially suitable for powering IP cameras, VoIP phones etc.
Characteristics
| Specifications | |
| PoE standards | 802.3af |
| PoE Out ports | 1 |
| LED indication | Yes |
| Pin powering | 4,5 (+), 7,8 (-) |
| Output Voltage | 48V |
| Output Power / 1port | 15.4W |
| Ethernet speed | 10/100/1000 Mbps |
| Gigabit LAN | Yes |
| Operating temperature | 0 up to 40°C |
| Weight | 115g |
| Depth | 89mm |
| Width | 51mm |
| Height | 69mm |
