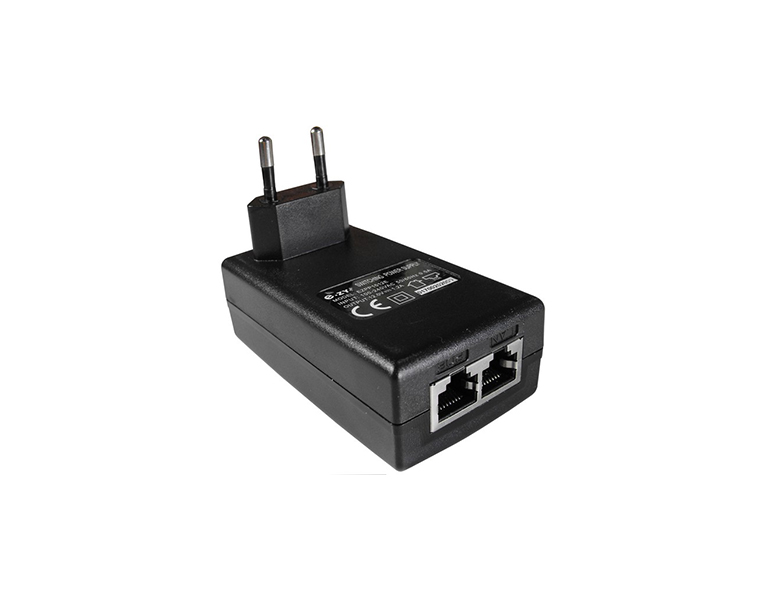

E-zy EZ-PP3012E 12v 2.5A Power Supply + PoE Injector LEDs - Wall
Product Code:
EZ-PP3012E
15,20 €
(Includes VAT 24%)
Sales price without VAT:
12,26 €
Available
E-zy EZ-PP3012E 12v 2.5A Power Supply + PoE Injector LEDs - Wallplug
Shipping cost calculation:
Quantity
Description
Characteristics
Downloads
Description

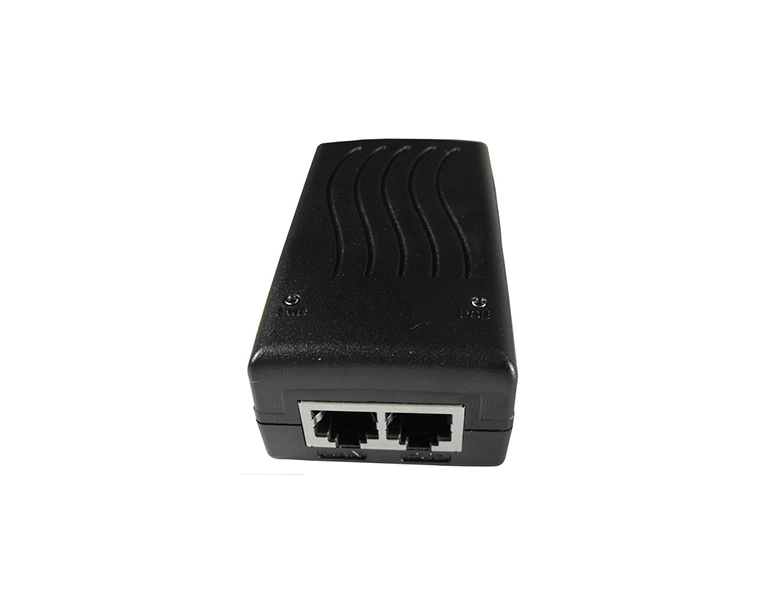

The EZ-PP3012E Power Supply and PoE Injector with LEDs wallplug is available with two RJ45 ports to act as “Data-In” and “PoE+Data out”. The EZ-PP3012E indoor PoE Injector wallplug allows you to use your space efficiently when installing your wireless equipment through the smart wallplug case. The two PoE LED/Red and ETH LED/Green allows fast and easy control of your equipment.
Features:
• Fast and easy wallplug case.
• All-In-One Power Supply and POE Injector Included.
Characteristics
| Specifications | |
| Input Condition | AC100~240V 50/60Hz 0.6A max |
| Input Rated Voltage | 100Vac~200Vac |
| Input Voltage Rate | 90Vac~264Vac |
| Input Rated Frequency | 50/60Hz |
| Input Frequency Range | 47Hz~63Hz |
| Input Current | 0.6A Max |
| Input Inrush Current | 30A Max |
| Input No Load Power Consumption | 0.5 Watt Max @ 115Vac/230Vac |
| Efficiency | 80% Min |
| Rated Output Voltage & Current | 12V/2.5A |
| Output Line Regulation | +-1% |
| Output Load Regulation | +-5% |
| Output Over Shoot | 10% Max |
| Output Ripple and Noise | 1% Max |
| Output Rising Time | 20ms Max @ 115Vac |
| Output Hold-Up Time | 8ms Min @ 230Vac |
| Protection | OCP OVP SCP OPP |
| Dielectric Withstand Voltage | 3KV 5mA 60s |
| Leakage Current | 0.25mA @ 230Vac |
| DC Plug Specification | 5.5 x 2.1 x 11mm |
| Dimension | 35 x 73 x 53mm |
| Weight | 148g |
| Operating Temperature Range | 0oC~40oC |
| Storage Temperature Range | -20oC~+85oC |
| Certifications | CE / UL / GS / RoHS / EMC |
